Universal GPU Systems Support Industry-Standard GPU Form Factors

Universal GPU System is the industry’s most advanced and flexible GPU server platform in the market today. Designed for large-scale AI deep learning and HPC workloads, this modular, standards-based platform supports the best available GPU technologies in a variety of form factors and combinations both today and into the future.

  • Dual 3rd Gen Intel® Xeon® Scalable or AMD EPYC™ 7003 Series processors
  • Supports a range of industry-standard GPU form factors
  • Modular design for maximum flexibility
  • 4U chassis supports up to 10x 2.5” NVMe/SATA drives
Anewtech-Universal-GPU-server-AS-4124GQ-TNMI-Supermicro-SYS-420GU-TNXR

Featured Products

Anewtech-Universal-GPU-server-Systems-AS-4124GQ-TNMI Anewtech-GPU-server-Supermicro-SYS-420GU-TNXR

S-AS-4124GQ-TNMI

  • Dual AMD EPYC™ 7003 Series processors
  • 32 DIMMs; up to 8TB Registered ECC DDR4-3200MHz
  • 10x 2.5” U.2 NVMe or 2.5” SATA drive bays
  • 8x PCI-E 4.0 x16 slots (low-profile)
  • Optional 1U expansion module for up to 700W GPUs and 2 additional AIOM/PCIe slots
  • 4x 3000W Titanium Level redundant power supplies

SYS-420GU-TNXR

  • Dual 3rd Gen Intel® Xeon® Scalable processors
  • 32 DIMMs; up to 8TB Registered ECC DDR4-3200MHz or 12TB with Intel® Optane® Persistent Memory
  • 10x 2.5” U.2 NVMe or 2.5” SATA drive bays
  • 8x PCI-E 4.0 x16 slots (low-profile)
  • Optional 1U expansion module for up to 700W GPUs and 2 additional AIOM/PCIe slots
  • 4x 3000W Titanium Level redundant power supplies

Highly Flexible Platform

Universal GPU System is the industry’s most advanced and flexible GPU server platform. Designed to deliver maximum compute power for large-scale AI deep learning and HPC workloads, this modular, open-standards based platform supports the industry’s most popular GPU technologies in a variety of form factors and combinations both today and into the future.

Designed for Demanding HPC and AI Workloads

Universal GPU platform has been designed from the ground up to support a combination of CPU and GPU configurations, allowing customization for specific HPC and AI workloads within the data center using a single platform.

  • High-performance computing including energy, molecular dynamics, physics, computational chemistry and climate sciences
  • AI for image and video detection/recognition, life sciences & drug discovery, autonomous driving and robotics.

Supports Industry-Standard GPU Form Factors

Universal GPU platform is designed to work with a wide range of GPUs based on an open standards design. By adhering to an agreed-upon set of hardware design standards, such as Universal Baseboard (UBB) and OCP Accelerator Modules (OAM), as well as PCI-E and platform-specific interfaces, IT administrators can choose the GPU architecture best suited for their HPC or AI workloads.

Anewtech-Universal-GPU-server-Systems-NVIDIA-HGX-GPU-server-Supermicro-SYS-420GU-TNXR

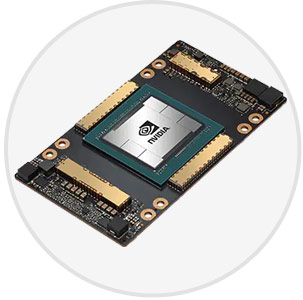

NVIDIA HGX™

4 NVIDIA HGX A100 4-GPU (SXM4) with NVLink™ GPU-to-GPU interconnect

Anewtech-Universal-GPU-server-Systems-gpu-GPU-server-Supermicro-SYS-420GU-TNXR

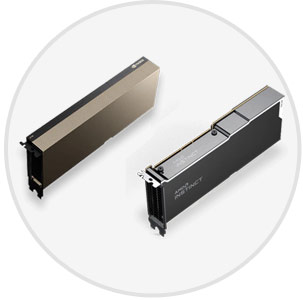

PCIe

Up to 10 full-width PCI-E 4.0 x16 GPUs

Anewtech-Universal-GPU-server-Systems-AMD-Instinct-GPU-server-Supermicro-SYS-420GU-TNXR

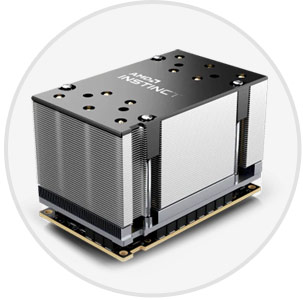

AMD Instinct™ and OAM

4 AMD Instinct MI250 OAM Accelerators with AMD Infinity Fabric™ GPU-to-GPU interconnect

divider

Optional 1U Expansion Module

For the most demanding deployments, thermal performance and I/O of the standard 4U chassis can be further enhanced with an optional 1U add-on module. The resulting 5U configuration supports GPUs with TDP up to 700W and provides two additional OCP 3.0 AIOM slots for enhanced networking.

Future Proof Design

Universal GPU platform’s modular design and compatibility with a wide range of open-standard GPU interfaces allows for forward compatibility with next-generation GPU architectures without the need to replace or upgrade existing server infrastructure, thus reducing the cost of GPU upgrades. The platform has also been designed to easily accommodate next- generation CPU, memory and PCI-E technologies, reducing the cost and complexity of both development and deployment when such new technologies become available.
