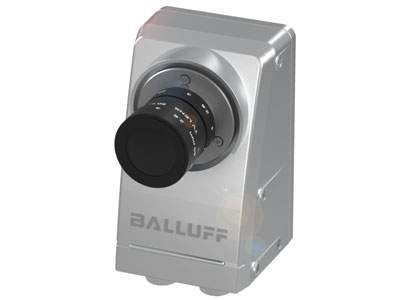

BVS002A (BVS SC-M1280Z00-30-000)

SmartCamera for machine vision. Interface: LAN (Gigabit Ethernet); Profinet / EtherNet/IP; IO-Link

Anewtech Systems Machine Vision Balluff Industrial Camera BVS002A
  • BVS SC SmartCamera makes it possible to detect production faults in the manufacturing process early on. It carries out the quality control of objects or supports the positioning of robots

  • The results can be relayed to higher-level systems via digital IO, Profinet or Ethernet IP. Saving images via Ethernet TCP/IP is also possible
Datasheet
BVS002A.pdf
Product Specification
Product groupSmartCamera for machine vision
ApplicationObject inspection, Range, Object detection, Positioning, Barcode-, 2D-, OCR identification
Image resolution1280 x 1024 pixels
Sensor typeVision CMOS 1/1.8" monochrome global shutter
Housing materialAluminum
Dimension62 x 55 x 110 mm
Switching output2x IO configurable
InterfaceLAN (Gigabit Ethernet); Profinet / EtherNet/IP; IO-Link
Operating voltage Ub19.2...28.8 VDC
Ambient temperature0...55 °C
Approval/ConformityCE, UL-FILE E227256, Vol.X1, BIS
IP ratingIP67 with protection tube
