BVS002F (BVS SC-C1280Z00-30-000)

SmartCamera for machine vision. Interface: LAN (Gigabit Ethernet); Profinet / EtherNet/IP; IO-Link

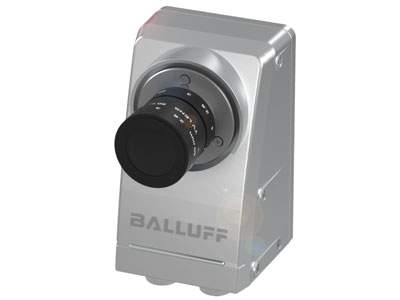

Anewtech Systems Machine Vision Balluff Industrial Camera BVS002F
  • BVS SC and BVS SL SmartCamera makes it possible to detect production faults in the manufacturing process early on. It carries out the quality control of objects or supports the positioning of robots

  • The results can be relayed to higher-level systems via digital inputs/outputs, Ethernet TCP/UDP or field buses (Profinet or EtherNet/IP). Saving images via Ethernet TCP/IP is also possible
Datasheet
BVS002F.pdf
Product Specification
Product groupSmartCamera for machine vision
ApplicationObject tracking, code+text analysis, Object verification
Image resolution1280 x 1024 pixels
Sensor type VisionCMOS 1/1,8" color global shutter
Housing materialAluminum, Painted
Dimension62 x 55 x 110 mm
Switching output2x IO configurable
InterfaceLAN (Gigabit Ethernet); Profinet / EtherNet/IP; IO-Link
Operating voltage Ub19.2...28.8 VDC
Ambient temperature0...55 °C
Approval/ConformityCE, cULus, WEEE, EAC
IP ratingIP67, with protective tube
