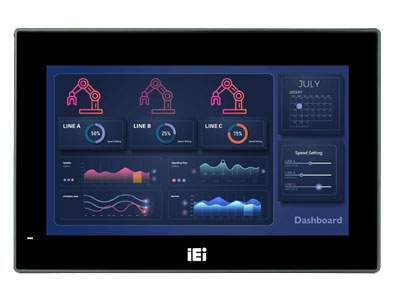

I-AFL3-W07A-AL2
Intel® Celeron N3350 (2M Cache, up to 2.4 GHz) TDP 6W
- 7” wide screen, 1024x600px
- Intel® Celeron® Processor N3350 (6W) on-board Processor
- 12V DC input with lockable DC jack
- Selectable AT/ATX power mode
- Built-in speakers
- On board IEEE802.3 at standard
- IP65 compliant front panel
- Touch screen wth anti-UV / anti-glare coating
- HDMI output
- RS232/422/485 DB9 connector
| System | |
| Cooling method / System Fan | Fanless |
| CPU | Intel® Celeron N3350 (2M Cache, up to 2.4 GHz) TDP 6W |
| Storage | 1 x M.2 B+M key PCIe 2242 (USB/SATA signal) |
| Communication | |
| Bluetooth | Bluetooth V4.1 |
| Wireless | IEEE 802.11a/b/g/n/ac |
| I/O Interface | |
| Ethernet | 2x PCIe GbE by Intel® i211 controller |
| Audio | AMP 2W (internal speaker) |
| Audio Codec | ALC269 |
| RAM | one 204-pin 1866MHz DDR3L DIMMs support up to 8GB |
| Power | |
| Power Requirement | 12V , 3A |
| Environment | |
| Operating Temperature | -20ºC ~ 50ºC |
| Humidity | 10% to 95% (non-condensing) |
| Storage Temperature | -20°C~60°C |
| Weight | |
| Weight | 0.73kg/1.81kg |
| LCD | |
| Size | 7” |
| Resolution | 1024 x 600 (16:9) |
| Brightness (cd/m2) | 500 |
| Contrast Ratio | 700:1 |
| LCD Color | 16.7M |
| Pixel Pitch (mm) | 0.1506 (H) x 0.1432 (V) |
| Viewing Angle (H-V) | 150º / 145º |
| Backlight MTBF | 20000 (LED backlight) |
| Touch | |
| Touch Screen | Projected capacitive type with USB interface (anti-UV) |
| Touch Controller | EXC80H60 |
| I/O Interface | |
| I/O Interface | 1 x AT/ATX Switch 1 x Clear CMOS 1 x RS-232 (RS232/422/485 (by DB9) 1 x HDMI 1 x LAN (GbE) 1 x Power Switch 2 x USB 3.2 Gen1x1 (5Gb/s) 1 x Reset Button 1 x Power In |
I-AFL3-W07A-AL2 features a low power 6W Intel® N3350 Celeron® Processor and 4GB of onboard RAM, with an optional 8GB available. The Panel PC supports an onboard PoE PD IEEE803.2 af/at port allowing data and power to be supplied via a single cable, reducing installation and power consumption costs. The 7” Widescreen LCD has a 16:9 resolution, an IP65 compliant front panel and a projective capacitive touch screen with an anti-UV and anti-glare coating.
I-AFL3-W07A-AL2 has a selectable AT/ATX power mode and a 12V DC input with lockable DC jack. Two external USB 3.2 Gen 1 ports ensure simplified connectivity to a variety of external peripheral devices. While WiFi 802.11 a/b/g/n/ac, Bluetooth V4.1 and Gigabit Ethernet capabilities provide the system with smooth connection to external networks.
Highlight:
 IP65 compliant front panel |  Touch screen with anti-glare coating |
Touch screen with anti-UV |  Support PoE PD IEEE803.2 af/at |
