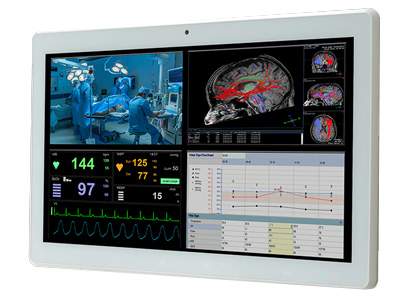

I-POCm-W24C-ULT3
24” Medical Panel PC with 6th Generation Intel® mobile ULT Core™ i7/i5/Celeron® processor
- 24" fanless FHD medical grade panel PC
- Intel® Celeron®, Core™ i5/i7 Skylake ULT SoC processor
- Three hot-swappable batteries with a total runtime of 8~16 hours is ideal for non-powered medical carts
- The battery docking station can perform fast charging, taking only 3 hours from 0 to 100%
- Optional integrated RFID, 3-in-1 card reader, external 1D/2D barcode reader and USB phone
- Certification: CE,FCC Class B Part18, IEC 60601-1:2005+AMD1:2012 ( Edition 3.1), IEC 60601-1-2: 2014 (Edition 4.0)
Datasheet
Product Specification
| Communication | |
| Bluetooth | V4.2 (M.2 2230 A-E key module) |
| Wi-Fi | IEEE 802.11 a/b/g/n/ac 2T2R module |
| Display | |
| Backlight MTBF(hrs) | 30000 |
| Brightness(cd/m2) | 250 |
| Contrast Ratio | 1000:1 |
| LCD Size | 24＂ |
| Max Resolution | 1920x1080 |
| Environment | |
| Humidity | 10% to 90% (non-condensing) |
| IP Level | Front: IP65, Back: IP32 |
| Operating Temperature | 0°C~40°C |
| Storage Temperature | -20°C~60°C |
| I/O Interface | |
| Audio | 2 x 3W Speaker |
| Expansion | 1 x Full-size/half-size PCIe Mini (PCIe+USB) |
| I/O Ports and Switches | 2 x USB 2.0 (side) 4 x USB 3.0 port 2 x HDMI output 2 x GbE LAN port 2 x RS-232/422/485 1 x Audio out (side) + 1 x Mic in (side) 1 x Digital Mic 1 x DC jack |
| RAM | 1 x 4GB, 260-pin 2133/1866 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs (system max. 32GB) |
| Other Features | |
| Camera | 5-megapixel CMOS front-facing camera with auto-focus and digital microphone |
| Microphone | digital microphone |
| System Cooling | Fanless |
| Physical Characteristics | |
| Color | White |
| Construction Front Panel | ABS+PC plastic with anti-bacterial material |
| Dimensions (LxWxH) (mm) | 594.6 x 379.6 x 71 mm |
| Mounting | Wall, Stand and Arm VESA 100/75 |
| Power | |
| Power adapter | 150W medical power adapter |
| Power Supply | 3 slots for hot swappable battery pack |
| System | |
| Cooling method / System Fan | Fanless |
| CPU | 6th generation Intel® mobile ULT Core™ i7-6600U / Core™ i5-6300U /Celeron® 3855U |
| Storage | 1 x 2.5＂ accessible SATA HDD bay 2 x M-key M.2 2242/60/80 (PCIe+SATA) with RAID |
| Touch | |
| Touch Screen | Projected capacitive type with 10-point multi-touch |
| Weight | |
| Weight | 8.18 kg without batteries 9.53 kg with 3 batteries |
| I/O Interface | |
| I/O Interface | 1 x AT/ATX Switch |
| 2 x HDMI | |
| 2 x LAN(GbE) | |
| 1 x Line out | |
| 1 x Mic | |
| 1 x Power In(19V DC jack) | |
| 2 x RS-232 | |
| 2 x Speaker | |
| 2 x USB 2.0 | |
| 4 x USB 3.0 | |
| LED Function | |
| LED Function | 1 x RFID indicator 3 x Battery indicator (Color : Blue/Red) 1 x Power Indicator |
| OSD Function | |
| OSD Function | 1 x Brightness up 1 x Brightness down 1 x Volume up 1 x Volume down 1 x Touch lock & LCD on/off 1 x Task Manager & Power on/off |
