Data Center Liquid Cooling Servers Solution

More advanced data center cooling solutions are required to maintain the optimal operating conditions for today’s data centers’ smooth and efficient operation. As the rise of AI and big data requires massive amounts of data processing, heat is a byproduct of the high processing power.

Anewtech Systems Liquid Cooling Server Supermicro Servers Singapore GPU Server AI Training server Storage Server

Advantages of Liquid Cooling

  • Switching from Air Conditioning to More Effective Liquid Cooling Reduces OPEX by more than 40%
  • Liquid Cooling Efficiency Dramatically Improves the PUE of Data Centers for High Performance, High Power CPUs, and GPUs
  • Reduces Costs and Environmental Impact

Types of Liquid Cooling

Anewtecch Systems Liquid Cooling Server Supermicro Server Direct-To-Chip Liquid Cooling Server

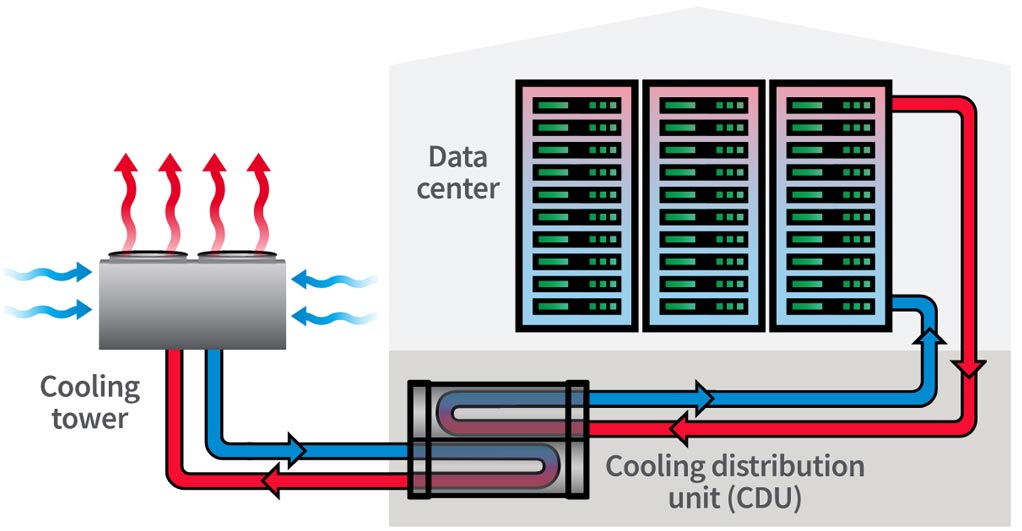

Direct To Chip

Liquid passes directly on the surface of a chip and draws heat away. The liquid is then cooled through a liquid to liquid heat exchanger, either contained within the rack or externally.


Anewtecch Systems Liquid Cooling Servers Supermicro Server Immersion Cooling Server Supermicro

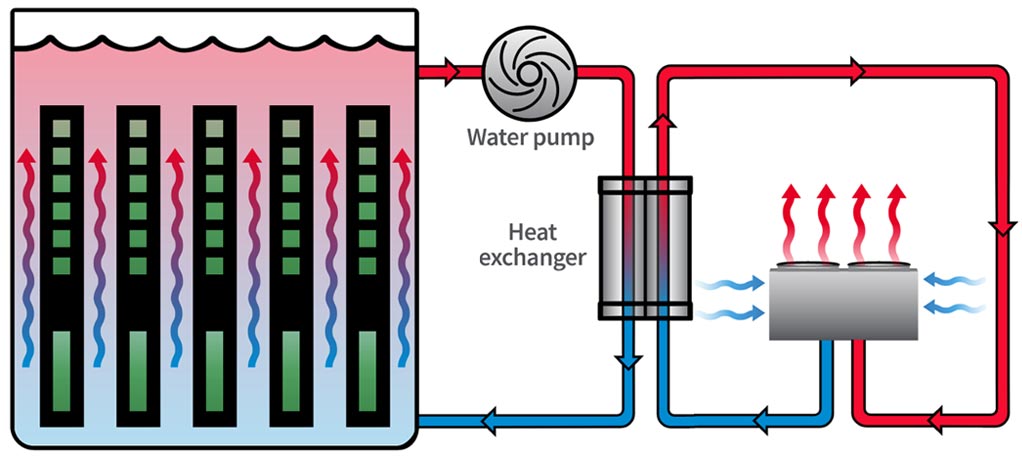

Immersive Cooling

The entire system is immersed in a liquid which cools all components. The warm liquid is then chilled and brought back into the tank.


Anewtecch Systems Liquid Cooling Servers Singapore Supermicro Server Rear Door Heat Exchanger Liquid Cooling Server

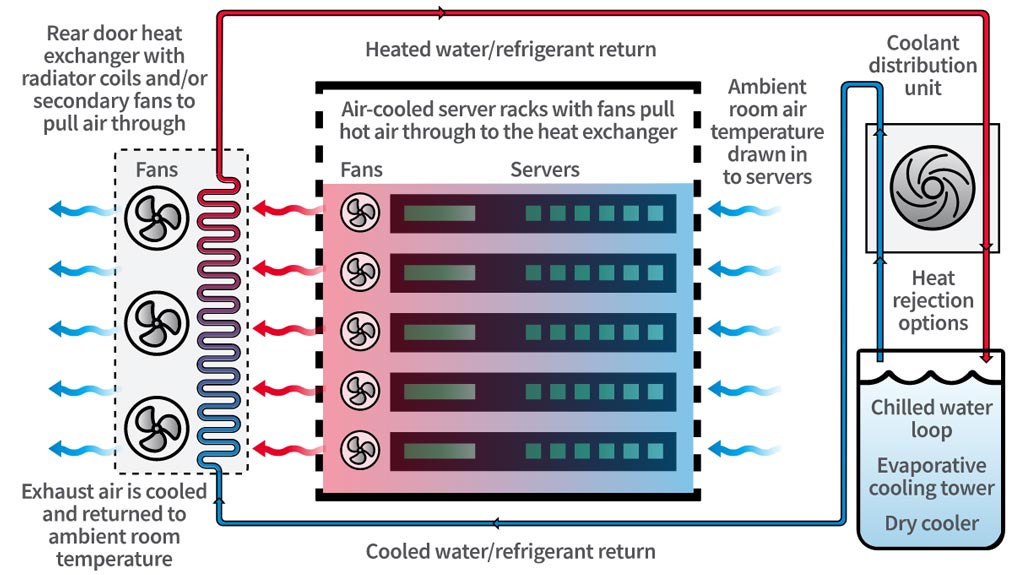

Rear Door Heat Exchanger

The rear door of a rack contains several fans that draw hot air away from the servers and cool the air before the air is returned to the data centre. The cooling liquid is then chilled externally to the door.


Benefits of Differing Liquid Cooling Options

Method of CoolingDirect To ChipImmersionRear Door Heat Exchanger
Primary BenefitRange of Servers can be usedMost EfficientLeast Disruptive
Secondary BenefitLower fan speed, noiseLowest/No NoiseCan be installed later

Liquid cooling is becoming a critical technology that will be needed as CPUs and GPUs run faster and hotter. Removing the heat generated by the latest generation of CPUs and GPUs reduces compute jitter and reduces OPEX for data center operators. While there is an initial upfront investment, the savings over the life of a server or storage system will exceed the original costs. Next-generation processors are expected to consume even more power and produce more heat than today's high-end processors. As HPC and AI move into mainstream corporate workloads, Liquid Cooling solutions will play an even more significant role in adopting these new technologies.


Servers Available with Liquid Cooling

Anewtecch Systems Liquid Cooling Server Supermicro Server SYS-421GU-TNXR GPU Server – 4U 8 GPU
SYS-421GU-TNXR
GPU Server – 4U 8 GPU
Anewtecch Systems Liquid Cooling Servers Supermicro Server SYS-421GE-TNRT GPU Server PCIe
SYS-421GE-TNR
GPU Server PCIe
Anewtecch Systems Liquid Cooling Server Supermicro Servers AS-4125GS-TNRT GPU Server PCIe
AS-4125GS-TNRT
GPU Server PCIe
Anewtecch Systems Liquid Cooling Servers Supermicro-Server-SYS-821GE-TNHR GPU 8U AI training server
SYS-821GE-TNHR
GPU Server - 8U 8 GPU
Anewtecch Systems Liquid Cooling Servers Supermicro Server AS-8125GS-TNHR GPU Server - 8U 8 GPU AI Training Server
AS-8125GS-TNHR
GPU Server - 8U 8 GPU
