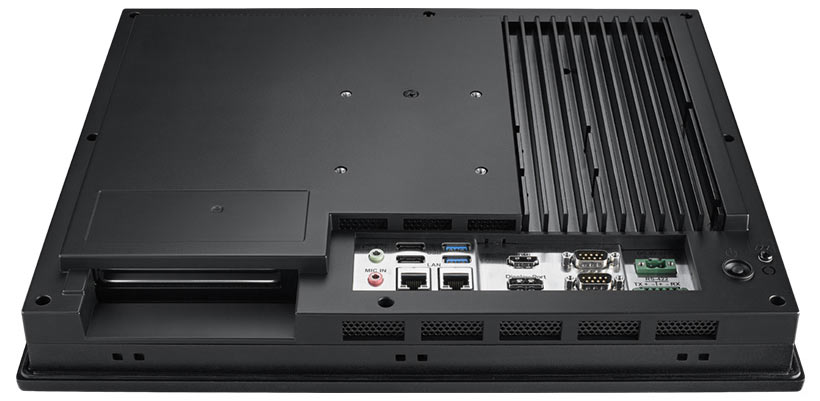

AD-PPC-419 EHL
19" Fanless Panel PC with Intel® Atom™ x6425E Processor
- 19" SXGA TFT LCD with resistive (default)or projected capacitive(by request) touchscreen
- Intel® Atom™ x6425E quad-core, 2.0 GHz processor
- Fanless, slim design
- Supports 1 x 2.5" SATA and 1 x M.2 B key slot for expansion
- 1 x PCI/PCIe x1 expansion slot
- Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
- Wide range DC support (9 ~ 32 VDC)
- 1 x isolated RS-422/485 with automatic flow control
- Dual 2.5GBASE-T Ethernet supports Time-Sensitive Network(TSN) technology
Datasheet
Product Specification
| Model | PPC-419-RX6A | |
| Hardware | ||
| CPU | Intel® Atom™ x6425E 2.0GHz Quad-Core | |
| Memory | 1 x DDR4 3200 MHz SDRAM Slot | |
| Storage | 1 x M.2 B key 2242/2280 (SATA/ USB3.0); 3042/3052 (5G), 1 x 2.5” SSD/HDD bay | |
| LAN | 2 x 10/100/1000/2500 Mbps | |
| Ethernet | Intel® i226-LM | |
| I/O | 2 x RS-232, 1 x RS-422/485, 2 x USB 3.2, 2 x USB 2.0, 1 x Line Out, 1 x Mic In, 1 x HDMI, 1 x DP | |
| Expansion | 1 x M.2 E key 2230,1 x M.2 B key 2242/2280/3042/3052, 1 x PCIe x1 or 1 x PCI | |
| Watchdog Timer | 1~255 s | |
| OS Support | Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux | |
| Power Input | 9~32 VDC | |
| Power Consumption | 55 W @ 19 VDC | |
| Certification | CE, FCC Class B, BSMI, CB, UL, CCC, UKCA | |
| I/O Interface | ||
| Serial Ports | 2 x RS-232, 1 x RS-232/422/485, 2 x RS-232 (Pin Header) | |
| Audio | Line-Out, Mic-In | |
| Displays | 1 x HDMI, 1 x DP | |
| Power Connector | 1 x 2-Pin Terminal Block | |
| USB Vision | ||
| Connector | 2 x USB 3.2 Type A, 2 x USB 2.0 Type A | |
| Mechanical | ||
| Dimension (W x H x D) | 454 x 380 x 62 mm | |
| Enclosure | Die-cast aluminum alloy, ABS | |
| Mounting | Stand, Wall, VESA, Panel | |
| Weight (Net) | 7 kg (15.4 lb) | |
| Touchscreen | ||
| Touch Type | 5-wire resistive | |
| LCD Display | ||
| Display Size | 19" | |
| Max. Resolution | 1280 x 1024 | |
| Viewing Angle (H/V°) | 170/160 | |
| Luminance (cd/m2) | 350 | |
| Backlight Life (hrs) | 50,000 | |
| Environment | ||
| Operating Temperature | -20~60 °C (-4~140 °F) | |
| Storage Temperature | -40~60°C (-40~140°F) | |
| Relative Humidity | 95% RH (non-condensing) | |
| Shock Protection | 10 G, half sine | |
| Vibration Protection | 2 Grms, random | |
| Ingress Protection | Front Panel IP66 | |
AD-PPC-419 is a 19" fanless panel PC equipped with a high-performance Intel® Atom™ x6425E quad-core, 2.0 GHz, processor that supports both a wide operating temperature range (-20 ~ 60 °C) and wide power input range (9 ~ 32 VDC).
