SSG-631E-E1CR16L

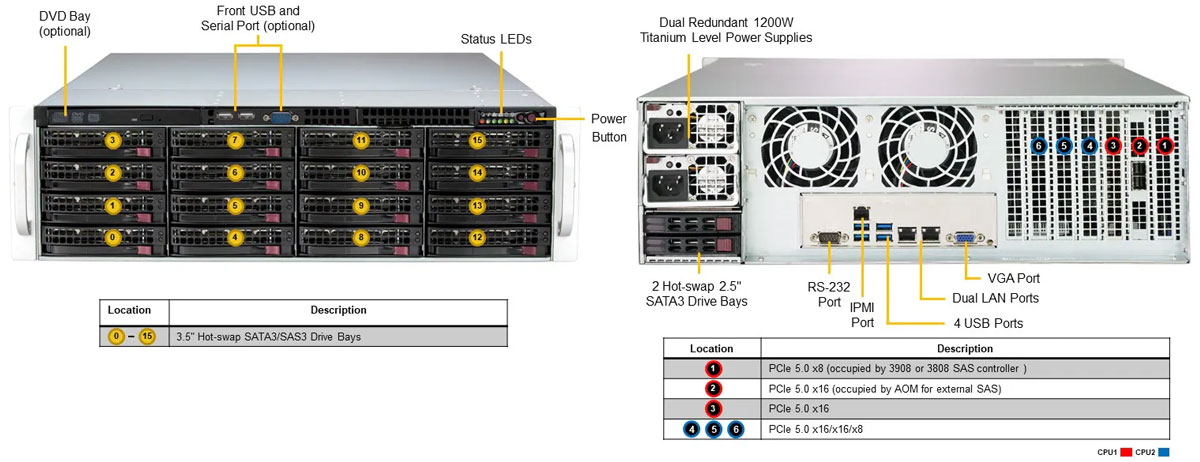

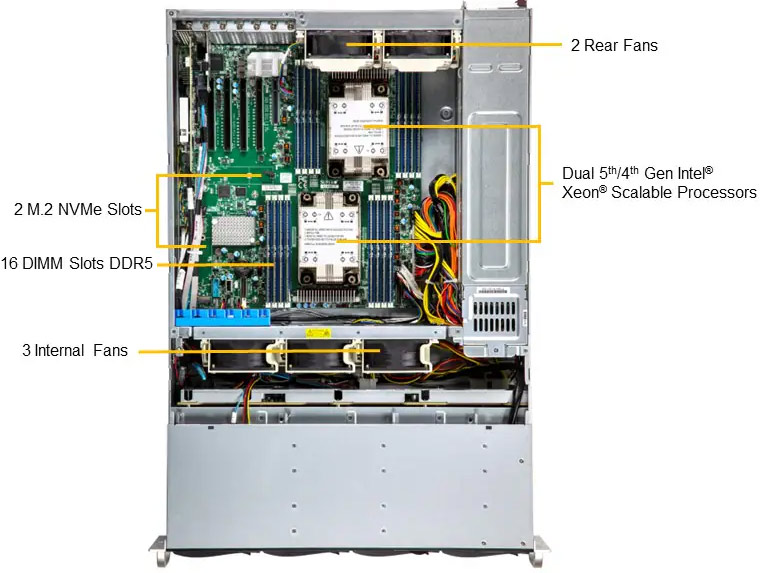

3U front-loading storage server with 16 hot-swap 3.5" SAS/SATA bays and PCIe 5.0
- Dual socket 5th/4th Gen Intel® Xeon® Scalable processors
- Up to 4TB 3DS ECC RDIMM, DDR5-4800MT/s(1DPC) in 16 DIMM slots
- 1x GbE Dedicated LAN for server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
- 2x 10 GbE onboard via Broadcom BCM57416
- 16x 3.5"/2.5" Hot-swap SAS3/SATA3 drives, 2x Rear 2.5" SATA Slots, 2x SATA/NVMe M.2 (form factor: 2280 and 22110)
- 5x 8cm hot-swap counter-rotate redundant PWM cooling fans
- 1200W Redundant Power Supplies Titanium Level (96%)
- HBA Controller support via Broadcom® 3808
Datasheet
Product Specification
| Product SKUs | SuperServer SSG-631E-E1CR16L (Silver) |
| Motherboard | Super X13DEI-T |
| Processor | |
| CPU | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors |
| Note | Supports up to 270W TDP CPUs (Air Cooled) |
| System Memory | |
| Memory | Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1 V |
| On-Board Devices | |
| Chipset | Intel® C741 |
| Network Connectivity | 2x 10GbE BaseT with Broadcom BCM57416 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output | |
| LAN | 1 RJ45 Dedicated IPMI LAN port 2 Onboard 10 GbE LAN Ports |
| USB | 4 USB 3.0 port(s) (4 Rear_USB) |
| Video | 1 VGA port(s) |
| Serial Port | 1 COM Port(s) (1 rear) |
| DOM | 2 Super DOM (Disk on Module) port |
| System BIOS | |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management | |
| Software | IPMI 2.0 KVM with dedicated LAN Super Diagnostics Offline SuperDoctor® 5 Supermicro Update Manager (SUM) Supermicro Power Manager (SPM) Supermicro Server Manager (SSM) Redfish API |
| Power Configurations | ACPI Power Management Power-on mode for AC power recovery |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
| CPU | 7+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
| Form Factor | 3U Rackmount |
| Model | CSE-836BTS-R1K23BP2 |
| Dimensions and Weight | |
| Height | 5.2" |
| Width | 17.2" |
| Depth | 25.5" |
| Package | 13" (H) x 27" (W) x 35" (D) |
| Weight | Gross Weight: 79 lbs (48 kg) |
| Available Color | Silver |
| Front Panel | |
| Buttons | Power On/Off |
| LEDs | HDD activity Network activity Power status System information (overheat/UID) |
| Expansion Slots | |
| PCI-Express (PCIe) | 3 PCIe 5.0 x16 slot(s) 1 PCIe 5.0 x8 slot(s) |
| Note | PCIe slot 1 & 2 are occupied by the Storage Controller/JBOD Expansion Module |
| Drive Bays / Storage | |
| Hot-swap | 16x 3.5" hot-swap SATA3/SAS3 drive bays |
| M.2 | 2 M.2 NVMe M-Key, 2280 and 22110 |
| System Cooling | |
| Fans | 5x 8cm heavy duty fans with optimal fan speed control |
| Air Shroud | 1 Air Shroud(s) |
| Power Supply | 1200W Redundant Titanium Level power supplies |
| Operating Environment | |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing) |
5th Gen Intel® Xeon® Scalable Processors
- Up to 64 cores and 385W TDP per CPU
- Support for Intel Xeon® Max Series CPUs with High Bandwidth Memory
- Support for PCIe 5.0, DDR5 and CXL 1.1
- Built on the Intel® 7 process
- Built in accelerators:
- Intel AMX
- Intel® Dynamic Load Balancer
- Intel® QuickAssist
- Technology (QAT)
- Intel vRAN Boost
