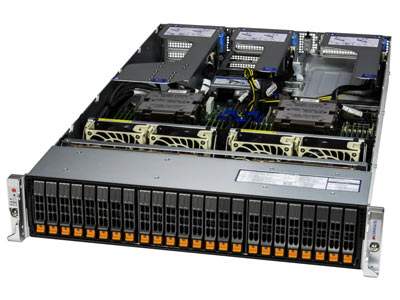

AS-2125HS-TNR
2U Hyper Server. 24 hot-swap 2.5" NVMe/SATA bays and 1 PCIe 5.0 x16 slot
- 4th Generation AMD EPYC™ 9004 Series Processors
- ASPEED AST2600
- 24 x DIMM slots, DDR5 -4800 memory support up to 6 TB
- 1 AIOM/OCP NIC 3.0 Slots with up to 2 AIOM/OCP with additional kits
- Configuration Options for up to 4 PCI-E 5.0 x16 Slots
- Configuration Options for up to 8 PCI-E 5.0 x8 Slots
- 2 On-board Gen 3 M.2 NVMe 80mm/110mm (Boot)
- 24 Hot-swap 2.5” NVMe/SAS/SATA (Optional parts required for NVMe/SAS/SATA configurations)
- *Full redundancy based on configuration and application load
- 1600W Redundant Power Supplies (Titanium Level)
- Optional Configuration: 1200W/2000W/2600W Redundant Power Supplies (Titanium Level)
Datasheet
Product Specification
| Product SKUs | AS -2125HS-TNR (Black front & sliver body) |
| Motherboard | Super H13DSH |
| Processor | |
| CPU | Dual Socket SP5 4th Generation AMD EPYC™ 9004 Series Processor Support CPU TDP 360W * *Support CPU cTDP 400W |
| Cores | Up to 192C/386T |
| Note | **Certain CPUs with high TDP may be supported only under specific conditions. Please contact us for additional information about specialized system optimization |
| System Memory | |
| Memory | Memory Capacity: 24 DIMM slots Up to 1.5TB: ECC Registered RDIMM, DDR5-4800MHz Up to 12TB: 3DS ECC Registered RDIMM, DDR5-4800MHz Memory Type: 4800MHz ECC DDR5 ECC DDR5 RDIMM Up to 512GB of memory with spe |
| Memory Voltage | 1.1 V |
| Error Detection | Corrects single-bit errors Detects double-bit errors (using ECC memory) |
| On-Board Devices | |
| SATA | SATA3 (6Gbps) |
| Chipset | System on Chip |
| Network Connectivity | Via AIOM |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output | |
| SATA | 32 SATA port(s) |
| LAN | 1 Dedicated IPMI LAN port |
| USB | 2 USB 3.0 port(s) (2 rear) |
| Video | 1 VGA port(s) |
| System BIOS | |
| BIOS Type | AMI 256MB SPI Flash |
| BIOS Features | ACPI 6.4Plug and Play (PnP)SMBIOS 3.5 or later UEFI 2.8USB Keyboard support |
| Management | |
| Software | IPMIView for Linux/ WindowsIPMICFG, SSM, SPM, SUM, Watch DogSuperDoctor® 5 |
| Power Configurations | Power-on mode control for AC power loss recovery ACPI Power Management |
| PC Health Monitoring | |
| CPU | 4+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory. |
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support |
| FAN | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectorsStatus monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
| Form Factor | 2U |
| Model | CSE-HS219-R1K63P-A |
| Dimensions and Weight | |
| Height | 3.5" (88.9mm) |
| Width | 17.2" (437mm) |
| Depth | 29.9" (760mm) |
| Package | 10.4" (H) x 23.8" (W) x 43.6" (D) |
| Weight | Net Weight: 39 lbs (17.7 kg) Gross Weight: 72 lbs (32.7 kg) |
| Available Color | Black front & sliver body |
| Front Panel | |
| Buttons | Power On/Off, UID button |
| LEDs | HDD activity, LAN1 activity, Power status, System information |
| Expansion Slots | |
| PCI-Express (PCI-E) | Configurable PCI-E slot options up to 8 PCI-E 5.0 x8 or 4 PCI-E 5.0 x16 FH, 10.5"L |
| Drive Bays / Storage | |
| Hot-swap | 24x 2.5" hot-swap NVMe/SATA/SAS drive bays |
| M.2 | 2x NVMe |
| System Cooling | |
| Fans | 4x 8cm heavy duty fans with optimal fan speed control |
| Air Shroud | 2 Air Shroud(s) |
| Power Supply | 1U 1000W/1600W Redundant single output power supply with inp |
| Dimension (W x H x L) | 73.5 x 40 x 265 mm |
| AC Input | 1000W: 100-127Vac / 12A-9A / 50-60Hz 1600W: 200-240Vac / 9A-7.5A / 50-60Hz |
| +12V | Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133.3A / Min: 0A (200Vac-240Vac) |
| 12V SB | Max: 3.5A / Min: 0A |
| Output Type | 25 Pairs Gold Finger Connector |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
Flexible and High Performance for Enterprise Data Centers
Our H13 Hyper systems are your new flagship data center systems, certified to run the major enterprise applications while affording you a flexible range of computing, networking, storage, and I/O expansion capabilities.
Choose NVMe, SATA, or SAS storage to achieve the number of I/O operations per second (IOPS) your applications need to perform at their best. And use Open Compute Project (OCP) 3.0 add-in modules (AIOMs) for consistent and standard networking capabilities across all of your server deployments.
Enterprise-focused platform designed for utmost performance and flexibility
Gain high performance, flexibility, scalability and serviceability to demanding IT environments, and to power mission-critical enterprise workloads
- Two 4th Gen AMD EPYC™ processors
- 24 DIMMs for up to 6 TB of DDR5-4800 memory
- Flexible NVMe, SAS, and SATA3 drive options
- Configurable PCIe 5.0 expansion capabilities with CXL 1.1+ memory expansion
- Open Compute Project (OCP) 3.0 AIOM slots
- Titanium-Level efficiency power supplies
Leading Multi-node Architecture with Front or Rear I/O
Highest Performance A+ Hyper Servers
The new H13 Hyper series brings next-generation versatility and performance to Supermicro's range of rackmount servers, built to take on the most demanding workloads along with the storage & I/O flexibility that provide customer fit for a wide range of application needs.
