WM-W18IT7T-OFA2

18.5” Intel® Core™ i5 (Tiger Lake) Open Frame Panel PC

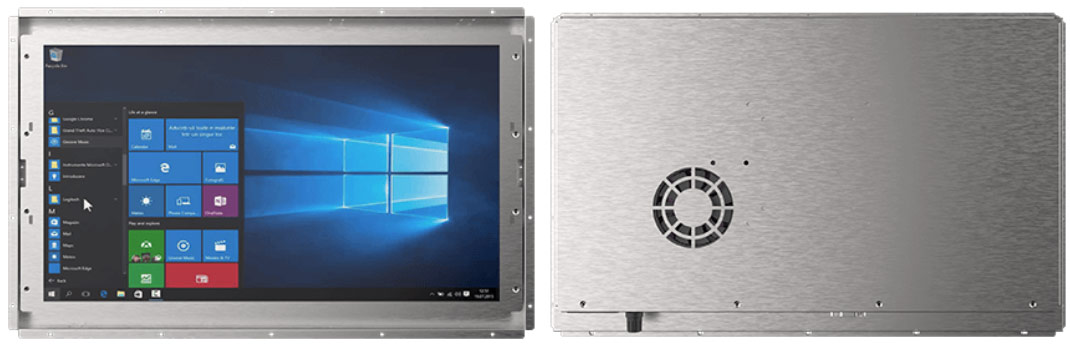

Anewtech Systems Open Frame Panel PC Winmate Industrial HMI WM-W18IT7T-OFA2

Features

  • Intel® Core™ Tiger Lake UP3 i5-1135G7(No vPro)/ Intel® Core™ Tiger Lake UP3 i5-1145G7E(With vPro)
  • 1366x768 Resolution
  • Multi display supports DP / HDMI / LVDS / eDP panel interface
  • Multiple I/Os, 2 x Serial Ports, 4 x USB 3.2 Gen. 1 Ports
  • 12V Single Voltage Power Input


Specification

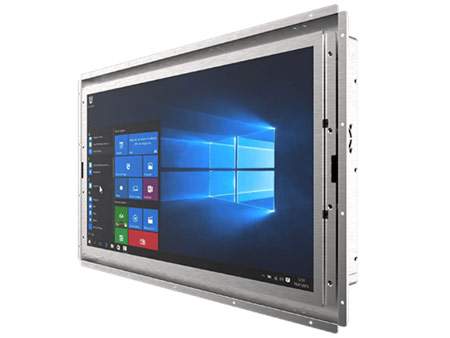

Anewtech Systems Open Frame Panel PC Winmate Industrial HMI WM-W18IT7T-OFA2

Display
Size 18.5inch
Touch / Glass Resistive Touch Screen
Protection Glass Without Touch Function (Optional)
Resolution 1366x768
Panel Brightness 450 nits
Contrast Ratio 1000:1
View Angles 85,85,80,80
Active Area 409.8X230.4 mm
System Specification
Processor Intel® Core™ i5-1135G7 (8M Cache, up to 4.20 GHz, no vPro)
Intel® Core™ i5-1145G7 (8M Cache, up to 4.40 GHz, With vPro) (Optional)
Memory 1 x SO-DIMM, DDR4 3200 MHz, 4GB
8GB (Optional)
16GB (Optional)
32GB (Optional)
2 x SO-DIMM, up to 64GB (Optional)
Storage 1 x M.2 M-Key 2242 SATA SSD or 1 x M.2 M-Key 2280 NVMe SSD 128GB
512GB (Optional)
1TB(for NVMe) (Optional)
2TB(for NVMe) (Optional)
4TB(for NVMe) (Optional)
1 x SATA III , up to 2TB (Optional)
Ethernet controller 2 x Intel® Gibabit Ethernet Controller
Security TPM 2.0
Operating System Windows 11 IoT Enterprise (Optional)
Windows 10 IoT Enterprise (Optional)
Linux Ubuntu 22.04 (Optional)
Mechanical
Dimension 476 x 299 x 63 mm
Mounting Open Frame panel mount VESA Mount
Enclosure Metal Housing
Cooling System Fan design
Environment
Operating Humidity 10% to 90% (non-condensing)
Operating Temperature 0~50°C
Storage Temperature -10~60°C
Certification
Certification CE, FCC
IO Ports
USB Port 4 x USB3.2 Gen2 x 1 (10Gbps, Type-A)
LAN 2 x Giga LAN RJ45 Connector
Video 1 x DP1.4 1 x HDMI 2.0 (Optional)
Audio Mic in Line out
Expansion Port 1 x M.2 2242/2260/2280 Key M slot for SATA/NVMe SSD
1 x M.2 2230 Key E slot for WiFi (Optional)
Power Input 1 x 12V DC, Din4 pin connector
Control
Button 1 x Power Button 1 x Reset Button
Accessory
Accessory 100~240V AC to DC Adapter
Power Cord
Driver CD & Manual
VESA screws
Power
Power Rating 12V DC
Adapter 12V 50W
