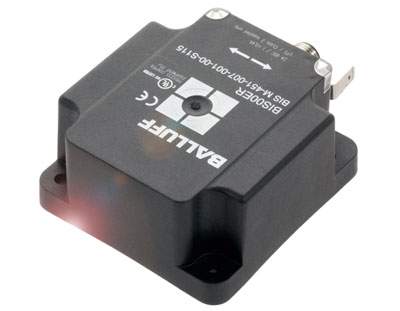

BIS00ER (BIS M-451-007-001-00-S115)

HF read/write heads (13.56 MHz) with integrate d processor unit. Interface: RS232

Anewtech Systems Industrial HF RFID Balluff HF read/write head BIS00ER
  • BIS M uses the high frequency (HF) 13.56 MHz and supports the standard according to DIN ISO 15693
  • Read heads with an integrated processor unit can be connected directly to the higher-level control system via IO-Link, RS232, TCP/IP or via Serial Subnet 16
  • The diverse configurations, dimensions, and variants with separate or integrated read heads allow you to meet most requirements
Datasheet
BIS00ER.pdf
Product Specification
Product groupHF (13.56 MHz)
Dimension80 x 40 x 84.5 mm
Antenna typeRod
Operating voltage Ub19.2...26.4 VDC
Ambient temperature0...70 °C
Housing materialPBT
InterfaceRS232
Connection(RS232/TP OUT): M12x1-Male, 8-pole
IP ratingIP67
Installationwith clear zone (in steel)
Approval/ConformityCE, UL-FILE E227256, Vol.X1, BIS
