I-HYPER-EHL
Pico-ITX SBC supports Intel® Celeron J6412/N6210 on-board SoC, with 4GB LPDDR4x memory
- Support Intel® Atom™ x6000 series / Pentium® / Celeron® processor (Elkhart Lake platform)
- Support Intel® I225V 2.5GbE Ethernet controller
- Support dual independent display via HDMI and iDPM
- Support one PCIe x4 and one M.2 M Key expansions
- Support two USB 3.2 Gen 2, two USB 2.0, with up to 10Gb/s transfer speed
| Form Factor | |
| Form Factor | Pico-ITX |
| System | |
| CPU | Onboard Intel® Atom™ x6000 series Celeron® processor (Elkhart Lake platform) Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W) Intel® Celeron® N6210 on-board SoC (up to 2.6GHz, dual-core, 1.5M Cache, TDP=6.5W) |
| Memory | LPDDR4x-3200Gbps 4GB,up to 8GB |
| Memory Max. | 8GB |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 100mm x 72mm |
| Net Weight | 600g |
| Storage | |
| Storage | 1 x M.2(NGFF) : M key (2242,PCIe Gen3 X 2) |
| 1 x SATA : iSATA 6Gb/s | |

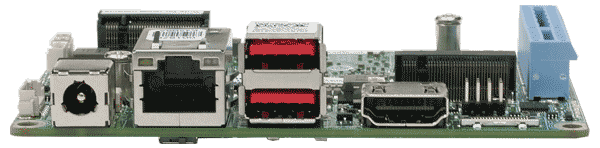

| I/O Interface | |
| Display Output | 1 x HDMI : up to 4096x2160 @ 30Hz |
| 1 x iDPM : support iEi eDP/ LVDS/ VGA module | |
| Ethernet | 1 x LAN - LAN1: Intel® I225V 2.5GbE controller |
| I/O Interface | 2 x External USB 3.2 Gen2x1 : 10Gb/s (Type A) |
| 1 x Internal RS-232/422/485 : 1x9 pin, P=1.25 | |
| 2 x Internal USB 2.0 : 2x4 pin, P=2.0 | |
| Expansion | 1 x M.2(NGFF) : M key (2242,PCIe Gen3 X 2) |
| 1 x PCIe x4 (PCIe Gen3 x4) | |
| Power | |
| Power Consumption | 12V@ 2.07A (Intel® Celeron® J6412 CPU with 4 GB 3200 MHz LPDDR4x memory, max. loading, EuP mode enabled) |
| Power Supply | ATX/AT power supply Support AT/ATX mode ErP/EuP Compliant |
| Environment | |
| Operating Temperature | 0°C~60°C |
| Storage Temperature | -30°C~70°C |
| Humidity | 5% ~95%, non-condensing |

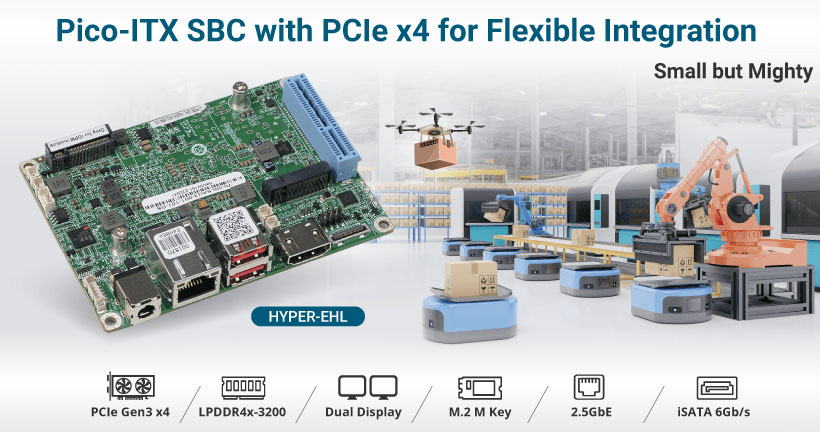

I-HYPER-EHL, a Pico-ITX fanless embedded board powered by Intel® Celeron® J6412/N6210 processor with Intel® UHD Graphics. It supports dual display and multiple I/O on a board size of just 100 x 72 mm, including 2.5GbE, USB 10Gb/s and RS-232/422/485. Additional functionalities can be added through the PCIe Gen3 x4 slot, enhancing the flexibility on system integration in many space-critical applications such as AMR/AGV, delivery robot, EV charging station and medical care system.
Equipped with Intel® Celeron® J6412/N6210 processor and 4GB on-board LPDDR4X, I-HYPER-EHL can deliver high levels of CPU and graphics performance at low power. It gets up to 74% higher benchmark score than previous generation.
