AX-eBOX800-511-FL
Rugged IP67-rated Fanless Embedded System with Intel® Core™ i5-7300U & Celeron® 3965U
- IP67-rating for outdoor use
- Intel® Core™ i5-7300U & Celeron® 3965U onboard
- 4 N-jack antenna openings with water proof design
- 9 to 36 VDC wide range power input
- -30°C to +60°C operating temperature range
- Features M12 lockable I/Os
- Trusted Platform Module 1.2 (TPM 1.2)
| CPU | Intel® Core™ i5-7300U/Celeron® 3965U onboard |
| Chipset | SoC integrated |
| System Memory | 1 x 260-pin DDR4-2133 SO-DIMM, up to 16GB |
| BIOS | AMI |
| COM | 2 x RS-232/422/485 (M12) |
| USB | 2 x USB 2.0 (M12) |
| Ethernet/PoE | 1 x 10/100/1000 Mbps Ethernet (Intel® i219-LM, M12) |
| Display | 1 x VGA (M12) |
| Digital I/O | N/A |
| Audio | N/A |
| Storage | 1 x 2.5” HDD drive bay (max. up 9.5 mm height) 1 x mSATA (enabled in BIOS setting) |
| Expansion | 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal) 1 x Half-size PCI Express Mini Card slot (USB +PCI Express signal) |
| Others | 1 x ATX power switch w/indicator 4 x N-jack antenna opening with water proof design TPM 1.2 supported |
| Power Supply | 9 to 36 VDC |
| Watchdog Timer | 255 levels, 1 to 255 sec. |
| Construction | Aluminum die-casting and heavy-duty steel, IP67 |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) (with i5-7300U, W.T. SSD/DRAM) |
| Relative Humidity | 10% to 95% , non-condensing |
| Vibration | 3 Grms with SSD (5 to 500Hz, X, Y, Z directions) |
| Shock | N/A |
| Dimensions (W x D x H) | 210 x 366.83 x 83 mm (8.27" x 14.44" x 3.27") |
| Weight (net/gross) | 4.31 kg (9.5 lb)/5.1 kg (11.24 lb) |
| Certifications | CE, FCC Class A |
| EOS Support | Win10 IoT & Linux |
| Software Support | AMS.AXView |
| Mounting | Wall mount VESA mount |

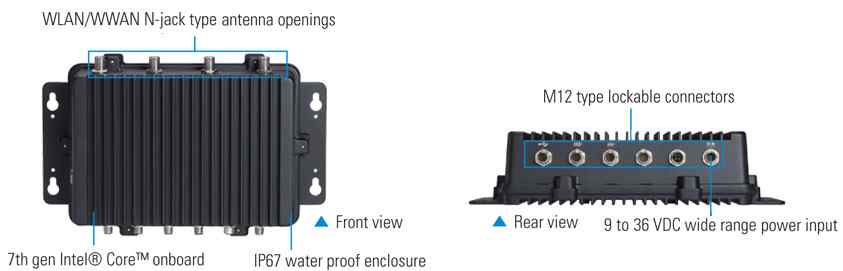

AX-eBOX800-511-FL is a fanless embedded system with IP67-rated housing and M12 connectors for mission-critical environments. This rugged embedded system is powered by the onboard 7th generation Intel® CoreTM i5-7300U and Celeron® 3965U (formally codename: Kaby Lake) and comes with one 204-pin DDR4-2133 SO-DIMM slot with system memory up to 16GB.
AX-eBOX800-511-FL is designed for enabling to function in harsh environments with power protection, a wide range operating temperature from -30°C to 60°C, operating shock tolerance up to 3G and 9-36V wide range DC input. Additionally, there are M12 lockable connectors and N-jack type waterproof antenna openings to meet the performance needs for outdoor critical applications such as facility condition monitoring. Furthermore, the fanless embedded box computer comes in great expansion possibilities, including flexible I/O connectors and two 2 PCI Express Mini Card slots. For enhanced platform security AX-eBOX800-511-FL provides Trusted Platform Module (TPM) 1.2 support.
