AS-iBOX-1145G7E
Fanless Embedded PC with Intel® 11th Gen (Tiger Lake-UP3) Core™ Processors
- Intel® 11th Gen (Tiger Lake-UP3) Core™ Processors
- 2 x 260-pin SO-DIMM up to 64GB DDR4 3200 MHz
- 6 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 1 x SATA3
- 1 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN
- Supports Quad display, 1 x HDMI 2.0a, 3 x DP 1.4a (2 from Type C)
- TPM onboard
- 19V/90W Power Adapter
Datasheet
Product Specification
| Form Factor | |
| Dimensions | 171.8 x 50.05 x 109.45 mm |
| Processor System | |
| CPU | I5-1145G7E, QC, Max Speed up to 4.1GHz |
| Chipset | MCP |
| BIOS | AMI SPI 256 Mbit |
| Memory | |
| Technology | Dual Channel DDR4 3200 MHz |
| Capacity | 64GB (32 GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
| Graphics | |
| Controller | Intel® Iris® Xe Graphics |
| HDMI | HDMI 2.0a Max resolution up to 4096x2160@60Hz |
| DisplayPort | DisplayPort 1.4, DP++ Max resolution up to 4096x2160@60Hz |
| MultiDisplay | Quad-Display (Included 2 outputs from Type-C) |
| Expansion Slot | |
| M.2 | 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless |
| Audio | |
| Interface | Realtek ALC233, High Definition Audio. |
| Ethernet | |
| Controller/ Speed | LAN1: Intel® I219V with 10/100/1000 Mbps LAN2: Intel® I225LM with 10/100/1000/2500 Mbps |
| Connector | 2 x RJ-45 |

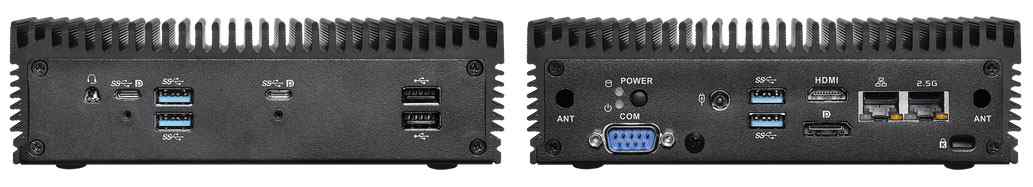

| Front I/O | |
| USB | 2 x USB 3.2 Gen2 (Type A) 2 x USB 3.2 Gen2 (Type-C, Supports DP 1.4 display output) * USB4™ Compliance Test is pending for certification 2 x USB 2.0 * For Thunderbolt support, please refer to support list. |
| Audio | 1 (headphone & microphone jack) |
| Rear I/O | |
| HDMI | 1 x HDMI 2.0a |
| DisplayPort | 1 x DP 1.4 |
| Ethernet | 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN |
| USB | 2 x USB 3.2 Gen2 (Type-A) |
| COM | 1 x COM(RS-232) |
| DC Jack | 1 |
| Storage | |
| M.2 | 1 x M.2 (KEY M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD *M.2 Key M 2280(Supported by bracket) |
| SATA | 1 x SATA3.0 (6.0 Gb/s) |
| Watchdog Timer | |
| Output | From Super I/O to drag RESETCON# |
| Interval | 256 Segments, 0, 1, 2, ...255sec |
| Power Requirements | |
| Input PWR | 19V/90W Power Adapter |
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
| Environment | |
| Operating Temp | 0ºC ~ 50ºC |
| Storage Temp | -40° C – 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
| Mechanical | |
| Construction | Aluminum |
| Mounting | VESA mounting、Wall mounting |
| Dimensions (W x H x D) | 171.8 x 50.05 x 109.45 mm |
| Weight | Net Weight:1.6Kg |
| Others | |
| OS Support | Windows 10 |
| Certifications | CE, FCC Class A |
| Packing List | 1 x 19V/90W Power Adapter 1 x Screw Package 1 x VESA mounting bracket 1 x Bracket for M.2 2280 support |
| Accessories | |
| Bulk Package | 2 x SCREW M2*2,D=5 (13G020302031AK) 1 x IBOX VESA MOUNT BRACKET (13G020554000AI) 1 x BRACKET FOR M.2 W/2*SCREW (13G030007000AK) |
