AS-iBOX-125U
Embedded PC supports Intel® Core™ Ultra processors (Meteor Lake-U/H)
- Intel® Core™ Ultra processors (Meteor Lake-U/H)
- 2 x 262-pin SO-DIMM DDR5 5600MHz up to 96GB (48GB per DIMM)
- 1 x USB4/Thunderbolt™4, 4 x USB3.2 Gen2, 2 x USB 2.0, 2 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 1 x SATA3
- 2 x Intel 2.5 Gigabit LAN
- Supports Quad display, 2 x HDMI 2.1 TMDS, 1 x DP 2.1 (from USB4), 1 x DP 1.4a (from Type-C)
- Intel® PTT
- Supports Intel® vPro, VMD RAID 0/1
- 19V/90W Power Adapter
- 171.8 x 109.45 x 50.05mm (6.76" x 4.31" x 1.97"), Fanless Embedded BOX PC
Datasheet
Product Specification
| Processor System | |
| CPU | Intel® Core™ Ultra processors (Meteor Lake-U/H) iBOX-125U (2P+8E) |
| Chipset | MCP |
| BIOS | AMI SPI 256 Mbit |
| Form Factor | |
| Dimensions | 200 x 200 x 35mm (WxDxH) |
| Memory | |
| Technology | Dual Channel DDR5 5600 MHz |
| Capacity | 96GB (48GB per DIMM) |
| Socket | 2 x 262-pin SO-DIMM |
| Graphics | |
| Controller | Intel® Graphics |
| HDMI | HDMI 2.1 TMDS Max resolution up to 4096x2160@60Hz |
| DisplayPort | DisplayPort 2.1/ 1.4a, DP++ Max resolution up to 4096x2160@60Hz |
| MultiDisplay | Quad-Display (Included 2 outputs from Type-C) |
| Expansion Slot | |
| M.2 | 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless |
| Audio | |
| Interface | Realtek ALC256, High Definition Audio. |
| Ethernet | |
| Controller/ Speed | LAN1: Intel I226LM with 10/100/1000/2500 Mbps, supports vPro LAN2: Intel I226V with 10/100/1000/2500 Mbps |
| Connector | 2 x RJ-45 |

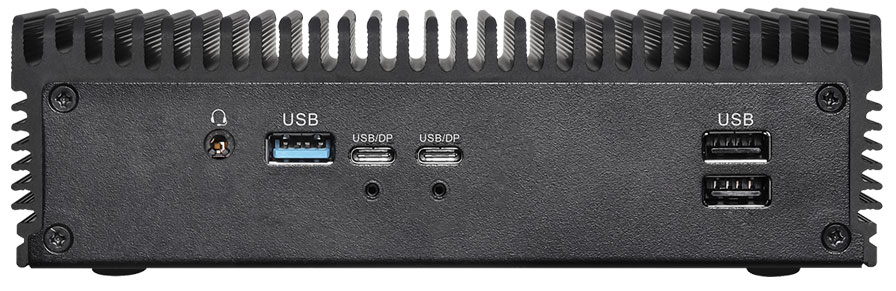

| Front I/O | |
| USB | 1 x USB 3.2 Gen2 (Type A) 1 x USB4/Thunderbolt™ 4 (5V/3A, Supports DP 2.1 display output) 1 x USB3.2 Gen2 x2 (Type-C, 5V/3A, Supports DP1.4a display output) 2 x USB 2.0 *For Thunderbolt support, please refer to support list. |
| Audio | 1 (headphone & microphone jack) |

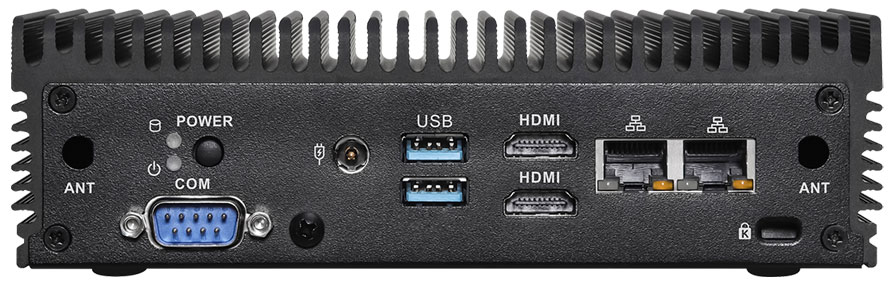

| Rear I/O | |
| HDMI | 2 x HDMI 2.1 TMDS |
| Ethernet | 2 x 2.5 Gigabit LAN |
| USB | 2 x USB 3.2 Gen2 (Type-A) |
| COM | 1 x COM(RS-232) |
| DC Jack | 1 |
| Storage | |
| M.2 | 1 x M.2 (KEY M, 2242) with PCIe Gen4 x4 for SSD 1 x M.2 (KEY M, 2242/2280) with PCIe Gen4 x4 for SSD |
| SATA | 1 x SATA3.0 (6.0 Gb/s) |
| Watchdog Timer | |
| Output | From Super I/O to drag RESETCON# |
| Interval | 256 Segments, 0, 1, 2, ...255sec |
| Power Requirements | |
| Input PWR | 12V~24V DC-In Jack |
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
| Environment | |
| Operating Temp | -20ºC ~ 40ºC with air flow 0.5~0.8 m/s (with extended temp. peripherals) |
| Storage Temp | -40° C – 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
| Mechanical | |
| Construction | Aluminum housing |
| Mounting | VESA mount/Wall mount/Din-rail |
| Dimensions (L x W x H) | 171.8 x 109.45 x 50.05mm (6.76" x 4.31" x 1.97") |
| Weight | Net Weight:1.6Kg |
| Others | |
| OS Support | Windows 10/11 |
| TPM | Intel® PTT |
| Certifications | CE, FCC |
| Packing List | 1 x 19V/90W Power Adapter 1 x Wall mount kit |
