AS-iBOX-8365UE

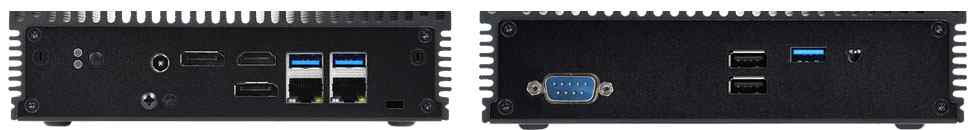

Fanless Embedded BOX PC with Intel® 8th Gen (Whiskey lake-U) Core™ Processors
- Intel® 8th Gen (Whiskey lake-U) Core™ Processors
- 2 x 260-pin SO-DIMM up to 32GB DDR4 2400 MHz (16GB per DIMM)
- 3 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 1 x SATA3
- 1 x Intel 1 Gigabit LAN, 1 x Realtek 1 Gigabit LAN
- Supports triple display, 1 x HDMI 1.4, 2 x DP 1.2a
- TPM 2.0 onboard IC
- 12V DC-In
- 171.8 x 150 x 71.5 mm, Fanless Barebone
Datasheet
Product Specification
| Form Factor | |
| Dimensions | 171.8 x 150 x 71.5 mm |
| Processor System | |
| CPU | Intel® 8th Gen (Whiskey lake-U) Core™ Processors iBOX-8145UE (I3-8145UE DC, up to 3.90 GHz) iBOX-8365UE (I5-8365UE QC, up to 4.10 GHz) iBOX-8665UE (I7-8665UE QC, up to 4.40 GHz) |
| Chipset | SoC |
| BIOS | AMI SPI 128 Mbit |
| Memory | |
| Technology | Dual Channel DDR4 2400 MHz |
| Capacity | 32 GB (16 GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
| Graphics | |
| Controller | Intel® Gen9 Graphics DX 12 |
| HDMI | HDMI 1.4b Max resolution up to 4096 x 2160@24Hz |
| DisplayPort | DisplayPort 1.2a Max resolution up to 4096 x 2160@60Hz |
| MultiDisplay | Triple Display |
| Expansion Slot | |
| M.2 | 1 x Key E (2230) with PCIe x1 and USB 2.0 for Wireless |
| Audio | |
| Interface | Realtek ALC233, High Definition Audio, Line-out, Mic-in |
| Ethernet | |
| Controller/ Speed | iBOX-8365UE / iBOX-8665UE: LAN1: 1 x Intel® I219LM, supports AMT/vPro LAN2: 1 x Realtek RTL8111H iBOX-8145UE: LAN1: 1 x Intel® I219V LAN2: 1 x Realtek RTL8111H |
| Connector | 2 x RJ-45 |
| Front I/O | |
| USB | 1 x USB 3.2 (Gen1) + 2 x USB 2.0 |
| COM | 1 x COM (RS-232) |
| Audio | 1 (Mic-in or Line-out) |
| Rear I/O | |
| HDMI | 1 x HDMI 1.4 |
| DisplayPort | 2 x DP 1.2a |
| Ethernet | 2 x 1 Gigabit LAN |
| USB | 2 x USB 3.2(Gen2) |
| DC Jack | 1 |
| Storage | |
| M.2 | 1 x M.2 (Key M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD *M.2 Key M 2280(optional support, by bracket) |
| SATA | 1 x SATA3 (6Gb/s), SATA3_1 shared with M.2_Key M |
| Watchdog Timer | |
| Output | From Super I/O to drag RESETCON# |
| Interval | 256 Segments 0,1,2....255sec |
| Power Requirements | |
| Input PWR | 1 x 12V/96W Power Adapter |
| Power On | AT/ATX supported -AT: Direct PWR on as power input ready -ATX:Press button to PWR on after power input ready |
| Environment | |
| Operating Temp | 0ºC ~ 40ºC |
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 10% ~ 90% |
| Storage Humidity | 10% ~ 90% |
| Mechanical | |
| Construction | Aluminum housing |
| Mounting | VESA mounting bracket, Wall mounting |
| Dimensions (W x H x D) | 171.8 x 150 x 71.5 mm |
| Weight | Net Weight: 2.2kg |
| Others | |
| OS Support | Windows 10 |
| TPM | TPM 2.0 onboard IC |
| Certifications | CE, FCC Class A |
| Packing List | 1 x 12V/96W Power Adapter 1 x Screw Package 1 x Product DVD 1 x VESA mounting bracket |
| Accessories | |
| Gift Package | 2 x SCREW M2,D=5 (13G020302031AK) |
