AS-iEP-7020E

Industrial IoT Controller supports Intel® 13th Gen Core™ Embedded & Industrial Processors

Anewtech-Systems Embedded-PC AS-iEP-7020E AsRock Industrial AIoT Edge AI PC Industrial IoT Controller
  • Intel® 13th Gen Core™ Embedded & Industrial Processors
  • Scalable power and performance in BGA for edge controller
  • High performance Intel® Iris Xe Graphics architecture
  • Fan-less and Rugged Design
  • Wide Temperature Operating (-40 °C to 70 °C)
  • 9V ~ 36VDC Wide Range Power Inputs
  • Intel® TCC and TSN Support for Real-Time Computing
  • 3 x Intel i226-IT LAN (Support vPro)
  • 2 x Intel i210-AT LAN (Support IEEE 802.3AF PoE)
  • Support Intel® IN-Band ECC
Datasheet
Product Specification
Anewtech-Systems-Embedded-PC-AS-iEP-7020E-asrock-industrial
System Core
ProcessorIntel®13th Gen Core™ i7/i5 Embedded & Industrial Processor
- Intel® Core™ i7-1365URE, 10C, 1.70GHz, 15W
- Intel® Core™ i5-1345URE, 10C, 1.40GHJz, 15W
- Intel® Core™ i7-1370PRE, 14C, 1.90GHz, 28W
- Intel® Core™ i5-1350PRE, 12C, 1.80GHz, 28W
Video2 x DP++ 1.4a
Memory2 x DDR4 3200MHz SO-DIMM, up to 64GB (Support In-Band ECC)
Expansion Slot
SIM Socket1 x Nano SIM Card slot
RF& Antenna (Option)M.2 Wi-Fi 6E module supports IEEE 802.11 a/b/g/n/ac/ax + BT 5.2
- 3 x 4G LTE antenna and 2 x Wi-Fi antenna
- 4 x 5G antenna and 2 x Wi-Fi antenna
M.21 x M.2 3042/3052/2280 Key B (PCIe Gen3/USB3.2)
- Support 4G LTE/5G module
- Support SATA3 SSD storage for iEP-7020E-000 only
1 x M.2 2230 Key E (CNVi / PCIe Gen3 / USB2.0)
- Support Wifi/BT module
I/O
Ethernet3 x Intel® i226-IT (vPro Support)
2 x Intel® i210-AT (1GbE) for PoE SKU & 5LAN SKU (Optional)
PoE (Option)2 x Intel® i210-AT, each port supports IEEE 802.3AF PoE, for PoE SKU only (Optional)
Serial Port4 x RS-232/422/485
USB3 x USB 3.2 Gen2x1
1 x USB 2.0
Digital I/O1 x 4DIs/4DOs, Power on and Reset (15-pin D-sub connector)
Audio1 x Line Out, 1 x Mic In
Storage
SD Slot1 x Micro SD card slot(SD Card specification version 3.01)
SATA1 x 2.5" 9.5mm SA TA3 SSD for Basic SKU only
M.21 x M.2 Key M Socket (2280) with PCIe Gen3
Power Requirements
DC InputFor Basic & 5LAN SKU
- 3-pin terminal block (Phornix type) for 9 to 36V DC input
For PoE SKU
- 3-pin terminal block (Phornix type) for 19 to 36V DC input
(Support OVP, UVP, OCP power protection design)
AC to DC Adaptor (Option)Adapter 120W for Basic SKU & 5LAN SKU
- AC input 100-240Vac, 1.8A 50-60Hz, DC output 19V, 6.32A
Adapter 330W for PoE SKU
- AC input 100-240Vac, 4.2A 50-60Hz, DC output 24V, 13.75A
Mechanical
Dimensions (W x H x D)For Basic SKU & 5LAN SKU : 55 x 170 x 134 mm
For PoE SKU : 68 x 170 x 134 mm
Indicator1 x Storage LED
1 x UD LED (USER Define)
Function1 x Power Button with LED
2 x Debug LED
WeightTBD
MountingFor Basic SKU & 5LAN SKU : Wall mount, VESA mount, DIN-Rail (Optional)
For PoE SKU : Wall mount, Din Rail (Optional)
Manageability / Security
ManageabilityWDT, Intel® In-Band Manageability
SecurityTPM2.0
Add-on Feature / OS Support
Real-Time EnablementTSN, TCC support under Ubuntu
OS SupportWindows 10 & Ubuntu 22.04 LTS
Embedded PC Support 13 Gen Intel Core™ Processor (iEP-7020E Series)

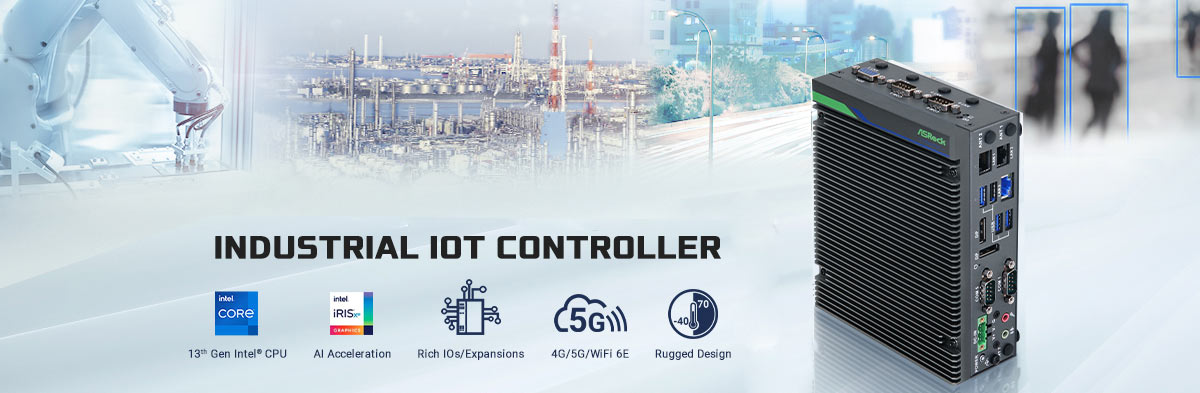

Anewtech-industrial-embedded-pc-iEP-7020E-asrock-industrial

AS-iEP-7020E Series enable streamlined solutions through high-performance data acquisition and control capabilities in edge computing, delivering real-time visual insights with intelligence. The iEP-7020E Series Industrial IoT Controller up to 14 cores and 20 threads for computing-intensive process control, securing optimized performance and energy efficiency while delivering up to 1.08x faster single-thread performance and up to 1.05x faster multi-thread performance.

SKUBasicPoE5LAN
CPU13th Gen Intel® Core™ i7/i5 Embedded and Industrial Processors (RPL-P)
MemoryDDR4 3200 Dual SO-DIMM, up to 64G (Support In-Band ECC)
Storage1 x M.2 2280 Key M
1 x 2.5” 9.5mm SSD
1 x M.2 2280 Key M1 x M.2 2280 Key M
Wi-Fi/BTSupport*Support*Support*
4G/5GSupport**N/AN/A
Ethernet3 x Intel I226-IT3 x Intel I226-IT
2 x Intel I210-AT
3 x Intel I226-IT
2 x Intel I210-AT
PoEN/ASupport IEEE 802.3AF PoE (I210-AT)N/A
Mount (Option)Wall Mount, VESA Mount, DIN-RailWall Mount, DIN-RailWall Mount, VESA Mount, DIN-Rail

*Support by additional Wifi/BT kit
**Support by additional 4G LTE/5G kit
