AS-iEP-7040E
Industrial IoT Controller Intel® 15th Gen Core™ Ultra Processor (Arrow Lake-H)
- Intel® 15th Gen Core™ Ultra Processor (Arrow Lake-H)
- High-Performance Intel® Arc™ Graphics
- Integrated NPU for Dedicated AI Acceleration
- Fan-less and Rugged Design
- Operating Temperature: -25°C to 50°C
- Dual 9V/19V to 36V Wide-Range DC Power Input
- 3 x Intel® i226-IT LAN
- 2 x Intel® i210-AT LAN, Supports IEEE 802.3af for PoE SKU
- 8DIs/8DOs with sink/source isolation 36V for 8DIO SKU
- Supports Intel® In-Band ECC
Datasheet
Product Specification
| Processor System | |
| CPU | iEP-7040E Series : Intel® Core™ Ultra processors 255H, 16Core, 2.00 GHz, 28W iEP-7041E Series : Intel® Core™ Ultra processors 225H, 14Core, 1.70 GHz, 28W |
| BIOS | AMI SPI 256 Mbit |
| Chipset | MCP |
| Memory | |
| Technology | Dual Channel DDR5 5600 MHz |
| Capacity | Up to 64GB |
| Socket | 2 x 262-pin SO-DIMM |
| Graphics | |
| Controller | Intel® Arc™ graphics |
| HDMI | HDMI 2.0b Max resolution up to 4096x2160@60Hz |
| VGA | Max resolution up to 1920x1200@60Hz |
| Expansion Slot | |
| M.2 | 1 x M.2 3042/3052 Key B (PCIe Gen3x1/USB3.2 mode) - Support 4G LTE/5G module 1 x M.2 2230/2260 Key E (CNVi/PCIe Gen3x1/USB2.0 mode) - Support Wifi/BT module |
| RF& Antenna | 7 x SMA connector hole reserved, support for Basic/5G SKU 5 x SMA connector hole reserved, support for PoE/5LAN/8DIO SKU |
| Audio | |
| Interface | Realtek ALC897, High Definition Audio |
| Ethernet | |
| Controller/ Speed | LAN1/LAN2/LAN3 : Intel® I226IT with 10/100/1000/2500 Mbps LAN4/LAN5: Intel® I210AT with 10/100/1000 Mbps (For 5LAN SKU) PoE1/PoE2: Intel® I210AT. PoE output max.15.4W/port, each port supports IEEE 802.3AF PoE. (For PoE SKU) |
| Connector | RJ45 |
| Front I/O | |
| Audio | 1 x Mic-in 1 x Line-out |
| COM | 2 x RS-232/422/485 |
| Ethernet | 3 x 2.5G LAN |
| HDMI | 1 x HDMI 2.0b |
| USB | 3 x USB 3.2 Gen2x1 1 x USB 2.0 |
| LED | 2 x Diagnostic LED 2 x DC-IN LED |
| DC-IN | 2 x 3-pin Phoenix type |
| Power Button | 1 (with LED) |
| Rear I/O | |
| SIM Card | 1 x Nano SIM Card slot |
| Micro SD Card | 1 x Micro SD card slot (Support SD specification v3.0 UHS-I: SDR25/SDR50) |
| Manageability / Security | |
| Manageability | Intel® In-Band Manageability |
| Security | TPM2.0 |
| Top I/O | |
| COM | 1 x RS-232/422/485 |
| Digital I/O | 4DIs/4DOs for all SKU (15-pin D-sub connector) 8DIs/8DOs with sink/source isolation 36V for 8DIO SKU only (2x10-pin connector) |
| Ethernet | 2 x 1G LAN for 5LAN SKU only |
| PoE | 2 x 1G LAN, support IEEE 802.3AF for PoE SKU only |
| LED | 2 x PoE LED for PoE SKU only |
| Storage | |
| M.2 | 1 x M.2 2280 Key M (PCIe Gen4 x4) |
| Watchdog Timer | |
| Output | From Super I/O to drag RESETCON# |
| Interval | 256 Segments, 0, 1, 2, ...255sec |
| Power Requirements | |
| DC Input | For Basic/5LAN/5G/8DIO SKU : DC 9V to 36V, Redundant Power Input For PoE SKU : DC 19V to 36V, Redundant Power Input OVP, UVP, OCP, plus 80V surge protection |
| AC to DC Adaptor (Option) | Adapter 120W for Basic/5LAN/5G SKU - AC input 100-240Vac, 1.8A 50-60Hz, DC output 19V, 6.32A, Adapter 330W for PoE SKU only - AC input 100-240Vac, 4.2A 50-60Hz, DC output 24V, 13.75A |
| Power Interface | 3-pin Terminal Block : V+, V-, Frame Ground |
| Environment | |
| Operating Temp | -25°C~50°C (-13°F~122°F) (with airflow 0.5~0.8m/s) |
| Storage Humidity | -40°C ~ 85°C (-40°F~185°F) |
| Humidity | ~95% @ 40°C (non-condensing) |
| Vibration | Operating: 5 Grms, 5-500 Hz, 3 axes with SSD |
| Shock | Operating 100 G, half sine 11 ms duration with SSD |
| ESD | Contact +/-8 KV, Air +/-15 KV |
| EMC | CE and FCC Class A (EN61000-6-4/-2) |
| Safety | LVD |
| Construction | Aluminum |

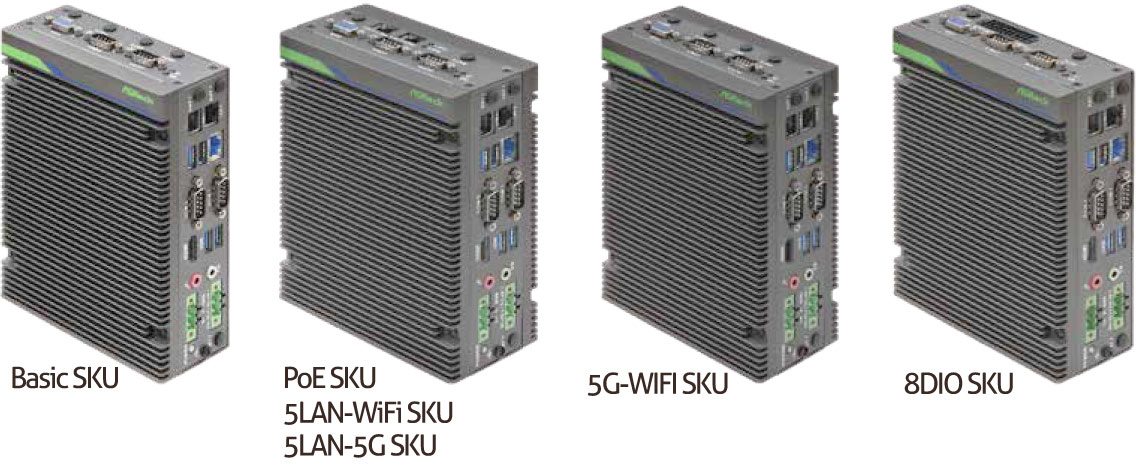

| Dimensions (L x W x H) | For Basic/8DIO SKU : 55 x 170 x 134 mm For PoE/5LAN/5G SKU : 68 x 170 x 134 mm |
| Mounting (Option) | For Basic/8DIO SKU : DIN-Rail, Wall Mount, VESA Mount For PoE/5LAN/5G SKU: Wall mount, Din Rail |
| Net Weight | TBD |
| Others | |
| OS Support | Windows 11 / Linux |
| Packing List | 3 x M2*2 Screw Package 2 x 3-pin phoenix connector 1 x System QIG |
| Optional Items | (1) 19V/120W Power Adapter for Basic/5LAN/5G/8DIO SKU (2) 24V/330W Power Adapter for PoE SKU (3) WIFI Kits (include WIFI Module, Antenna and SMA Cable) (4) 4G Kits (include 4G Module, Antenna and SMA Cable) (5) 5G Kits (include 5G Module, Antenna and SMA Cable) (6) DIN Rail Kit (7) Wall Mount Kit (8) VESA Mount Kit |
