SH-DH02U
Embedded System supports Intel® 7th Generation Processors, with Quad Display support
- Intel® 7th Generation Processors
- NVIDIA GeForce® GTX 1050 Graphics
- 4K UHD Experience
- Quadruple Display Productivity
- Blazing-fast Storage with M.2
- Extensive Connectivity
| PROCESSOR | Intel Kabylake-U Celeron 3865U 15W CPU i3 7100U, i5 7200U, i7 7500U (optional) |
| MEMORY | 2 x 260 pin DDR4 SODIMM slots,16GB per DIMM (Max 32GB) Dual Channel DDR4 2133 Mhz |
| VIDEO OUTPUT | HDMI 2.0 x 4 quad independence video output 4K/2K playback (Dual channel memory recommended) |
| AUDIO | Realtek ALC662 channel High Definition Audio |
| ETHERNET | Intel i211 100Mb/s and 1Gb/s operation Support Wake-On-LAN function |
| STORAGE INTERFACE | SATA 6.0Gb/s interface |
| ONBOARD CONNECTORS | (1) SATA power connector (2) 4pin fan connectors (1) Auto power on header (1) RS232 |

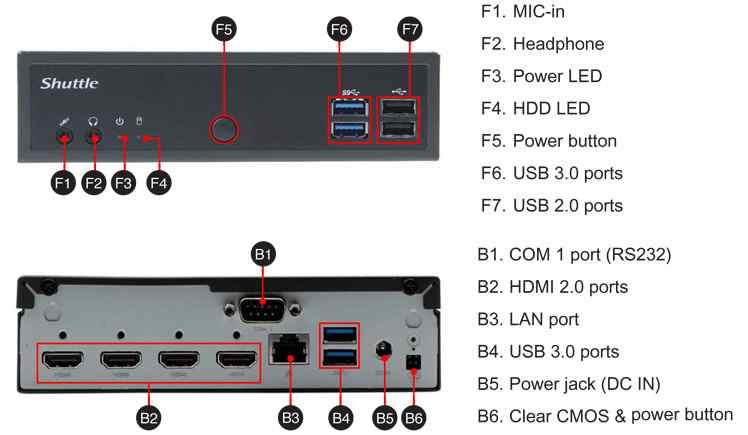

| FRONT PANEL | (2) USB 3.0 ports (2) USB 2.0 ports (1) Microphone-In (1) Earphone-Out (1) Power-On button (1) Power LED (1) HDD LED |
| BACK PANEL | (1) RJ45 Gigabit LAN port (4) HDMI port (2) USB 3.0 ports (1) RS232* (1) External power on/Clear CMOS header (1) Kensington lock (2) Wireless Antenna fixture |
| DRIVE BAYS | (1) 2.5" HDD / SSD bay |
| DIMENSIONS | 190(L) x 165(W) x 43(H) mm |
| POWER | 120W Power Adapter Input:100- 240V AC Output: 19V 6.32A DC |
| ACCESSORIES | XPC Multilanguage Quick User Guide XPC DVD Driver VESA mount VESA mount quick installation guide 1* Power cord 1* SATA cable Screws Optional 802.11ac/b/g/n WLAN module |
| EXPANSION SLOT | (1) M.2 2280 Type M key socket (1) M.2 2230 Type E key socket (1) MxM 3.0 Type A |
| OS SUPPORT | Windows 10 64 bit O.S Linux |
Compact in size but big on performance, more robust than ever. SH-DH02U is a four HDMI output PC that drives up to 4K UHD resolution for every display channel. Equipped with 7th Gen Intel® Core™ processors and NVIDIA GeForce® GTX 1050 graphics, SH-DH02U delivers a breakthrough performance for rendering content in 4K/3D.
Featuring integrated 4 x HDMI 2.0 that support four 4K UHD displays, it also provides a variety of I/O connectivity includes multiple USB ports, 2 x M.2 slots, as well as RS232 and Gigabit LAN for various options. With its robust performance in only 1.3 liter compact size, SH-DH02U is the perfect solution for Menu Boards, Video Walls, Surveillance and other high-end digital signage applications.
