I-TANGO-3010
Compact Fanless embedded system supports Intel® Celeron™ J6412 2.0 GHz processor
- Ultra-Compact Industrial Mini PC
- Fanless system
- Intel® Celeron™ J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
- Triple 2.5GbE LAN
- Built-in Wi-Fi 6E & Bluetooth 5.2 module (internal antenna)
Datasheet
Product Specification
| Form factor | |
| SBC Form Factor | CPU: Intel® Celeron J6412 2GHz (up to 2.6 GHz, quad-core, TDP 10W) Chipset: SOC System Memory: LPDDR4X on board 8GB (up to 16G) Power: DC Jack: 12 V DC Consumption: +12V@2.95A (Intel® Celeron J6412 with 8GB memory) |
| I/O Interface | |

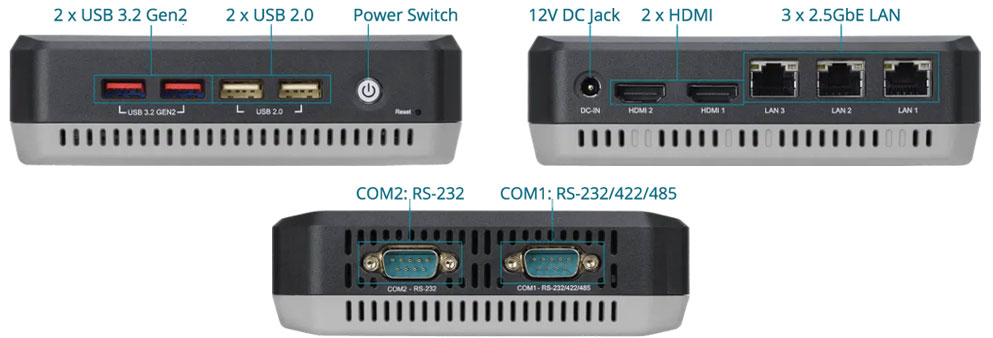

| I/O Ports | USB: 2 x USB 3.2 Gen2 ; 2 x USB 2.0 Ethernet: 3 x RJ-45 2.5 GbE by I225V controller Display: 2 x HDMI COM Port: 1 x RS-232 (DB9) ;1 x RS-232/422/485 (DB9) TPM: Support Intel PTT Wireless/Bluetooth: INTEL AX210 WiFi 6E & Bluetooth 5.2 Module built-in 2T2R antenna Watchdog Timer: Programmable 1 ~ 255 sec/min |
| Expansion Slots | |
| Expansion Slots | M.2: 1 x 2230 A-key (PCIe x1/USB2.0)(preinstalled WIFI Module) 1 x 2280 M-key (PCIe x4) |
| System | |
| Cooling method / System Fan | Fanless |
| Drive Bays | 1 x 2.5” SATA 6Gb/s HDD/SSD bay (support up to 9.5 mm SSD) |
| Indicator&Buttons | |
| Buttons | 1 x Power button (with LED) 1 x Reset button |
| Indicators | 1 x Power LED 1 x HDD LED |
| Physical Characteristics | |
| Construction | ABS Plastic + Aluminum |
| Color | |
| Color | Black C & grey (Pantone 430C) |
| Dimensions | |
| Dimensions | 139 x 137 x 39.8 (mm) |
| Weight | |
| Weight | 0.57/1.35 kg |
| Environment | |
| Operating Temperature | 0°C ~ 40°C with air flow (SSD) |
| Humidity | 10% ~ 95% non-condensing |
| Operating Vibration | 10-500 Hz, 1.04 Grms, random, 1 hr/axis (SSD) |
| Operating Shock | Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD) |
| Safety & EMC | CE/RED/FCC/UKCA/ compliant |
| OS Support | |
| OS Support | Microsoft® Windows® 10/11, Linux |
