I-TANGO-7010
Compact Industrial Mini PC supports 12th Intel® Core™ i Processor. Triple 2.5GbE LAN
- Compact Industrial Mini PC
- Smart Fan system
- 12th Intel® Core™ i Processors
- Triple 2.5GbE LAN
- Built-in Wi-Fi 6E & Bluetooth 5.2 module (internal antenna)
Datasheet
Product Specification
| Form factor | |
| SBC Form Factor | CPU: 12th Intel® Core™ i Processors Chipset: H610 System Memory: 2 x SODIMM 3200MHz DDR4, 8GB pre-installed up to 64GB Power: DC Jack: 12V DC Consumption: 12V@2.95A (Intel® Core™ i7-12700TE with 8GB memory) |
| I/O Interface | |

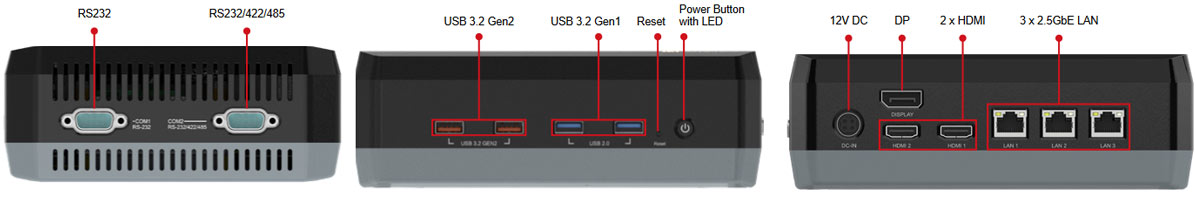

| I/O Ports | USB: 2 x USB3.2 Gen2 ; 2 x USB3.2 Gen1 Ethernet: 3 x RJ-45 2.5 GbE by I225V controller Display 2 x HDMI 2.0B Support CEC (up to 4k@ 60Hz) 1 x DP 1.4 (:up to 4k@ 60Hz) COM Port: 1x RS-232 (DB9) 1x RS-232/422/485 (DB9) TPM: Support Intel PTT Wireless/Bluetooth: INTEL AX210 WiFi 6E & Bluetooth 5.2 Module built-in 2T2R antenna Watchdog Timer: Programmable 1 ~ 255 sec/min |
| Expansion Slots | |
| Expansion Slots | M.2: 1 x 2230 E-key (PCIe Gen3 x1/USB2.0) (preinstalled WIFI Module) 1 x 2280 M-key (PCIe Gen4 x4) 1 x 2280 M-key (PCIe Gen3 x4) |
| System | |
| Cooling method / System Fan | Smart Fan |
| Drive Bays | 1 x 2.5” SATA 6Gb/s HDD/SSD bay (support up to 9.5 mm SSD) |
| Indicator&Buttons | |
| Buttons | 1 x Power button(with LED) 1 x Reset button |
| Indicators | 1 x Power LED |
| Physical Characteristics | |
| Construction | ABS Plastic + Aluminum |
| Color | |
| Color | Black C & grey (Pantone 430C) |
| Dimensions | |
| Dimensions | 192.09 x 158 x 64 (mm) |
| Weight | |
| Weight | 1.29 / 2.34kg |
| Environment | |
| Operating Temperature | 0°C ~ 40°C with 0.7M/S air flow (SSD) |
| Humidity | 10% ~ 95% non-condensing |
| Operating Vibration | 10-500 Hz, 1.04 Grms, random, 1 hr/axis (SSD) |
| Operating Shock | Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD) |
| Safety & EMC | CE/RED/FCC/UKCA/ compliant |
| OS Support | |
| OS Support | Microsoft® Windows® 10/11, Linux |
