AD-UNO-148 V2
Fanless DIN-Rail IPC with Intel® Core™ Processors (13th Gen)
- Intel® Core™ processors (13th Gen) with 8GB DDR5 memory
- Port isolation for 8 x DI, 8 x DO, 4 x COM
- Supports 2 x M.2 M key 2280 NVMe SSD storage (support RAID)
- Supports 1 x M.2 E Key 2230 wi-fi module and 1 x miniPCIe with Nano SIM card slot
- Dual 2500 BASE-T Ethernet supports Time-Sensitive Network (TSN) technology
- Modular design for optional iDoor extension
- Support Windows 11 IoT Enterprise LTSC
Datasheet
Product Specification
| UNO-148-D33BA | UNO-148-D53BA | UNO-148-D73BA |
| Intel® Core™ i3-1315UE 1.2GHz 6-Core | Intel® Core™ i5-1335UE 1.3GHz 10-Core | Intel® Core™ i7-1365UE 1.7GHz 10-Core |
| Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux | ||
| 1 x SO-DIMM with 8 GB DDR5 4800 MHz, 2 x NVME M.2 SSD (2280 M-key) | ||
Industrial DIN-Rail Edge Computer UNO-148 V2 with Advanced AI Capabilities

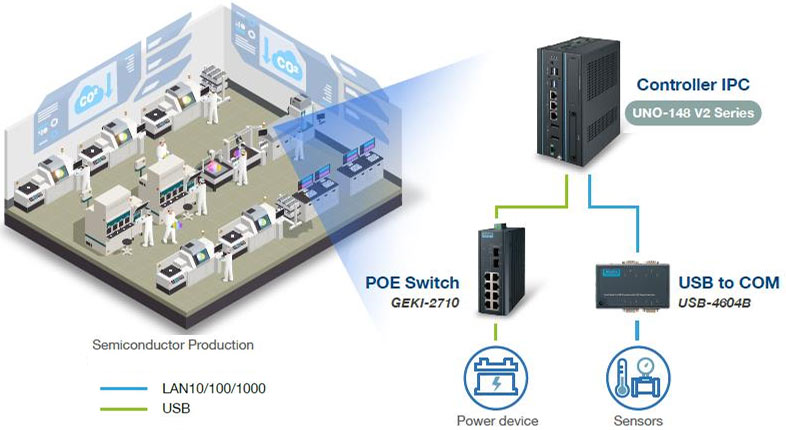

UNO-148 V2, a DIN-rail automation controller equipped with the latest 13th Gen Intel® Core™ processors and an innovative design that integrates with its second-stack extension kit to support embedded MXM GPUs based on NVIDIA Ada Lovelace and Ampere architecture.
UNO-148 V2 product is set to revolutionize real-time control and automation applications across various AI-driven industries, unlocking edge AI capabilities.
