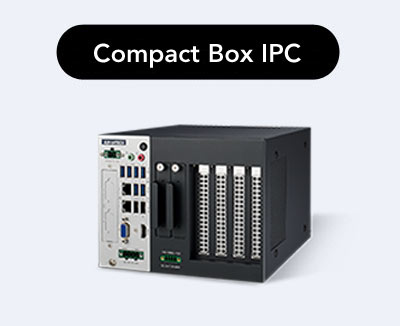

AD-IPC-240

Compact Industrial Computer System with 10th Gen Intel® Core™ i CPU Socket (LGA 1200)

Anewtech-Systems Industrial-Computer Advantech Industrial Chassis AD-IPC-240
  • Intel® 10th Gen Core™ i CPU socket-type (LGA1200) with Intel® Q470E/ H420E chipset
  • 3 x independent displays (third display output (DP) via optional cable)
  • 2 x GigaLan and 6 x USB3.2
  • 2 x RS-232/422/485 and 2 x RS232 serial ports
  • 1 x NVMe M.2 (Q470E Only), 2 x 2.5" HDD/SSD, and 1 x mSATA
  • 19 ~ 24 VDC input power range
  • Support Power Out 12V/5V - 2A
  • Supports Advantech i-Door
  • Versatile LED for system status and alarm
Datasheet
Product Specification
Anewtech-AD-IPC-240 Advantech industrial Computer Chassis
Anewtech-Industrial-PC-IPC-240-Advantech-Industrial-Computer

Ultra-Compact System with Card Expansion for Powerful Industrial IoT Application

Designed to function as the intelligent edge for manufacturing equipment, the latest IPC-220 is an ultra-compact modular system equipped with 2/4 PCIe/PCI slots for integrating diverse add-on cards, such as I/O cards, motion cards, vision cards, and GPU cards to support machine control and vision applications, or provide artificial intelligence for automated optical inspection (AOI) operations.

Anewtech

Anewtech-Industrial-PC-IPC-240-Advantech-Industrial-Computer

Easy Deployment with Flexible Power Design and Front-Facing I/O

To ensure easy deployment for IoT installations with limited cabling space and complex power requirements, IPC-220 is compatible with CPU board - PCE-2032 and PCE-2132, supporting 10th Generation Intel® Core™ Processors, and all the I/O ports are located in the front panel for easy access and space savings. New IPC-240 supports a wide power input range of 19 ~ 24 VDC, and a wide range of I/O ports as well as multiple expansion slots, aims at users environment requiring minimum setup effort yet multi-functional platform. Moreover, all of the new IPC-240 supports 5 VDC/2A and 12 VDC/2A power output for powering external devices
