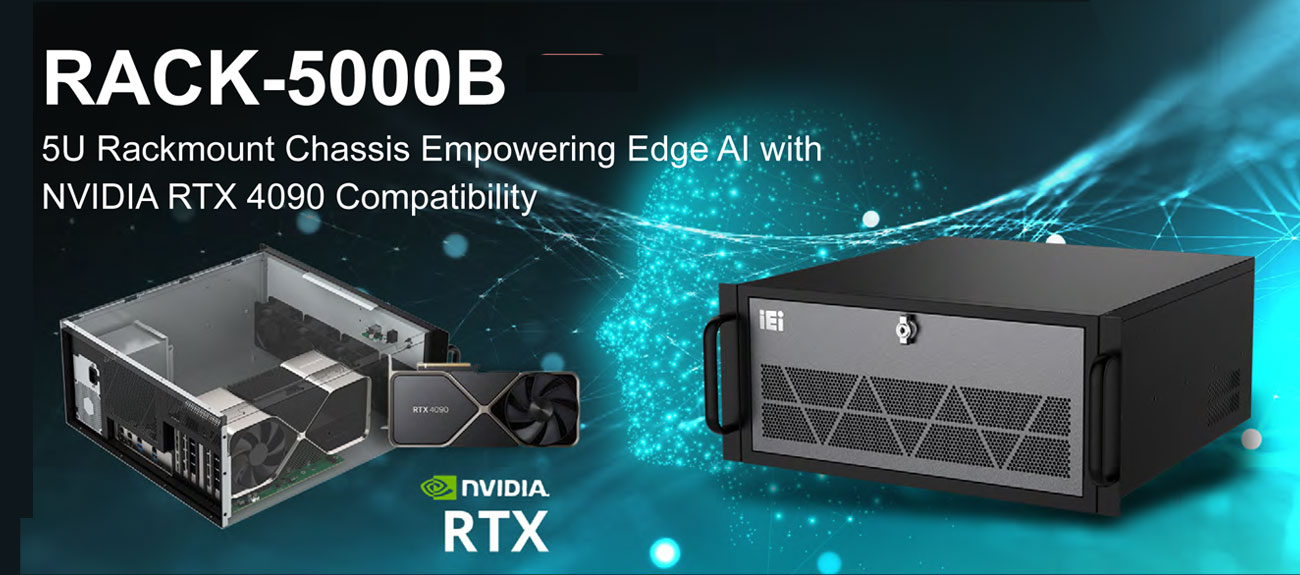

I-RACK-5000B
5U ATX Rackmount Chassis, 2 x USB2.0, Black, ATX Power Switch, HDD shockproof
- RoHS compliant design
- Compatible with ATX and microATX form factor motherboards
- Two 3.5” and three 2.5” drive bays
- Four cooling fans (92 x 92 x 38mm)
- Lockable door prevents unauthorized access
Datasheet
Product Specification
| Form factor | |
| SBC Form Factor | ATX Motherboard |
| I/O Interface | |
| I/O Ports | 2 x USB |
| Expansion Slots | |
| Expansion Slots | 7 slots |
| System | |
| Cooling method / System Fan | 4 |
| Drive Bays | 2 x 3.5” HDD 3 x 2.5” HDD |
| Indicator&Buttons | |
| Buttons | Power switch, reset button |
| Indicators | Power, HDD |
| Physical Characteristics | |
| Construction | Heavy duty metal |
| Color | |
| Color | Black chassis with silver frame |
| Dimensions | |
| Dimensions | 562.5 x 431 x 200.2 mm |
| Environment | |
| Operating Temperature | 0°C ~ 60°C |
| Humidity | 10% ~ 90% |
| Operating Vibration | Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD) |
| Operating Shock | MIL-STD-810G 514.6C-1 (SSD) |
| Safety & EMC | CE/FCC compliant |
