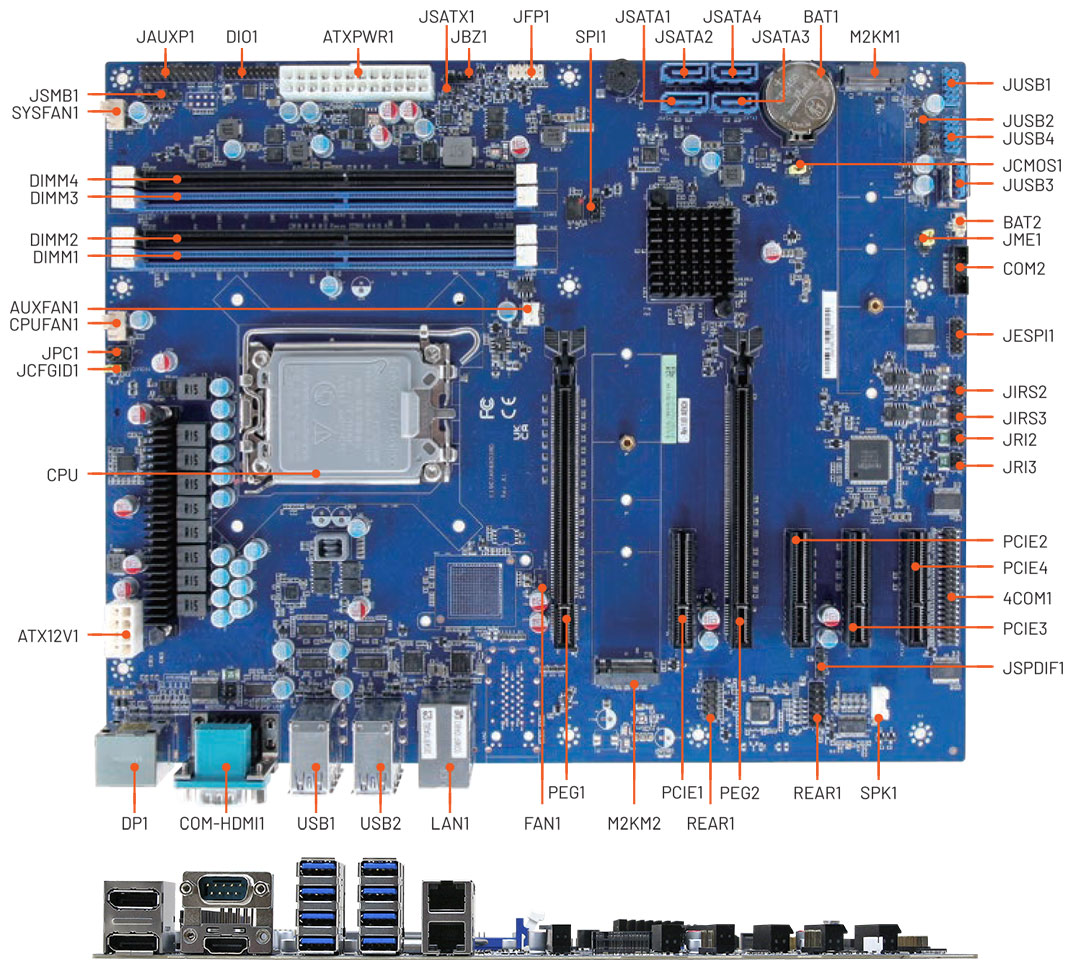

A-EAX-R680FP
12/13/14th Gen Intel® Core™ i9/i7/i5/i3 Processors, supports LGA1700 CPU Up to 125W Max
- 12/13/14th Generation Intel® Core™ i9/i7/i5/i3 Processors, supports LGA 1700 CPU Up to 125W Max, Intel® R680E Chipset
- 4 x 288-Pin DDR4 3200MHz U-DIMM Socket Supports Up to 128GB (ECC Memory Support by CPU)
- 2 x DP++, 1 x HDMI2.0b
- 2 x PCIe x16 Slots for 1 x PCIe x16 (Gen5) Default or 2 x PCIe x8 (Gen5), 2 x PCIe x4 Gen4, 1 x PCIe x4 Gen3, 1 x PCIe x4 slot for 1 x PCIe x2 (Gen3)
- 1 x Intel® X550AT2 10G Gigabit Controller (BOM Optional) , 2 x Intel® i225LM 2.5G Gigabit Controller
- 8 x USB 3.2 Gen2, 1 x USB 3.2 Gen1 Vertical Type A, 5 x USB by Pin-header
- 2 x M.2 Key M NVMe (Gen4x4) 2242/2280/22110
- 6 x RS232, 2 x RS232/422/485 (COM2 & 3 By BIOS Selection)
- ATX Power
Datasheet
Product Specification
| System Information | |
| Processor | LGA 1700 Socket Supports 12/13/14th Generation Intel® Core™ i9/i7/i5/i3 Processors (Max. TDP at 125W) |
| Platform Controller Hub | Intel® R680E Chipset |
| System Memory | 4 x 288-Pin DDR4 3200MHz U-DIMM Socket Supports Up to 128GB (ECC Memory Support by CPU) |
| I/O Chipset | nuvoton NCT6126D |
| Watchdog Timer | H/W Reset, 5~255 Seconds/5~255 Minutes |
| BIOS | AMI uEFI BIOS, 256Mbit SPI Flash ROM |
| H/W Status Monitor | CPU Temperature Monitoring Voltage Monitoring CPU Fan Speed Control |
| TPM | Onboard nuvoTon NPCT750AADYX Supports TPM 2.0 |
| Board | ATX |
| Expansion | |
| Expansion | 2 x PCIe x16 slots for 1 x PCIe x16 (Gen5) default or 2 x PCIe x8 (Gen5) 2 x PCIe x4 Gen4 1 x PCIe x4 Gen3 1 x PCIe x4 slot for 1 x PCIe x2 (Gen3) |
| Storage | |
| Storage | 2 x M.2 Key M NVMe (Gen4x4) 2242/2280/22110 4 x SATAIII |
| Display | |
| Graphic Chipset | Intel® 12th/13/14th Generation CPU Integrated |
| Spec. & Resolution | 2 x DP (DP1.4a): Max (Combined): 7680 x 4320@60Hz (DP++ Via dongle: 1920 x 1080@60 Hz) 1 x HDMI (HDMI 2.0b): Max Resolution 4K x 2K@60Hz (With HDR) |
| Multiple Display | Triple Display |
| Audio | |
| Audio Codec | Realtek ALC888S HD Audio Decoding Controller |
| Audio Interface | Mic-in, Line-out, 5.1-CH Audio |
| Audio Amplifier | 2 x 6W 8Ω Amplifier |
| Ethernet | |
| LAN Chipset | 1 x Intel® X550AT2 10G Gigabit Controller (BOM optional) 2 x Intel® i225LM 2.5G Gigabit Controller |
| LAN Port | 2 x 10G LAN (BOM Optional) 4 x 2.5G LAN |
| Power Requirement | |
| Power Mode | AT/ATX (Default Setting: ATX) |
| Software Support | |
| OS | Windows 10, Windows 11, Linux |
| Certification | |
| Certification Information | CE, FCC Class, RoHS Compliant |
| I/O | |
| USB | 8 x USB 3.2 Gen2 1 x USB 3.2 Gen1 Vertical Type A 5 x USB 2.0 |
| COM Port | 6 x RS232 2 x RS232/422/485 (COM2 & 3 By BIOS Selection) |
| SATA | 4 x SATA III |
| RAID | Support RAID 0, 1, 5, 10 |
| DIO | 1 x 16-bit GPIO |
| Mechanical & Environmental | |
| Operating Temp. | 0~55°C (32~131°F), 0.5m/s Air Flow |
| Storage Temp. | -40~ +75°C (-40~167°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Weight | 1.54lbs (0.7kg) |
| Power Requirement | +12V/+5V/5VSB/+3.3V/-12V |
| Power Mode | AT/ATX (Default Setting: ATX) |
| Dimension (L x W) | 12" x 9.6" (304.8mm x 243.84mm) |
