AD-AIMB-522
AMD Ryzen™ AM4 5000 Series MicroATX Motherboard with 1 DP/HDMI/VGA, 6 COM, 4 GbE LANs, 8 USB 3.2, 4 USB 3.0, 3 USB2.0
- Supports AMD AM4 Ryzen™ 5000 series processor with X570 chipset
- Supports PCIe Gen4, max up to 8x USB 3.2 Gen2, 4x USB 3.0 Gen2, 3x USB 2.0, 4x SATAIII, 4x 10GbE LANs, M.2 (M Key)
- Supports triple displays. (DP, VGA, HDMI display)
- Supports DeviceOn and Embedded Software APIs
Datasheet
Product Specification
| Model | AIMB-522G4-00A1 | AIMB-522G2-00A1 |
| Form Factor | ||
| Form Factor | Micro ATX | Micro ATX |
| Processor | ||
| CPU TDP | 105W/65W | 105W/65W |
| Core Number | up to 16C | up to 16C |
| Frequency | 3.4GHz~3.9GHz | 3.4GHz~3.9GHz |
| L3 Cache | 16MB~64MB | 16MB~64MB |
| BIOS | AMI EFI 256 Mbit | AMI EFI 256 Mbit |
| Chipset | AMD X570 | AMD X570 |
| Memory | ||
| Max. Capacity | 128GB | 128GB |
| Technology | Dual Channel DDR4 3200MHz UDIMM | Dual Channel DDR4 3200MHz UDIMM |
| ECC Support | No | No |
| Socket | 4 x 288-pin DIMM | 4 x 288-pin DIMM |
| Display | ||
| DDI (HDMI/DVI/DisplayPort) | HDMI/DP/VGA | HDMI/DP/VGA |
| Multiple Display | Dual/ Triple | Dual/ Triple |
| Expansion | ||
| PCI Express x 16 | 1 | 1 |
| PCI Express x 4 | 2 | 2 |
| Ethernet | ||
| Controller | 2 x INTEL LAN i225LM, 2 x Realtek 8119i | 2 x INTEL LAN i225LM, 2 x Realtek 8119i |
| Speed | Up to 2.5GbE | Up to 2.5GbE |
| Connector | RJ45 x 2 | RJ45 x 2 |
| Audio | ||
| CODEC | Realtek ALC888S | Realtek ALC888S |
| Connector | 2 (Line out, Mic-in) | 2 (Line out, Mic-in) |
| Watchdog Timer | ||
| WatchDog Timer | Yes | Yes |
| Storage | ||
| SATA | 4 x SATA III (Max. Data Transfer Rate600 MB/s) | 4 x SATA III (Max. Data Transfer Rate600 MB/s) |
| RAID | Software RAID 0, 1, 5, 10 | Software RAID 0, 1, 5, 10 |
| I/O | ||
| GPIO | 8-bit GPIO | 8-bit GPIO |
| USB3.0 | 8 | 8 |
| USB2.0 | 3 | 3 |
| COM Port | 6 ( 5 x RS232, 1 x RS232/ 422/ 485) | 6 ( 5 x RS232, 1 x RS232/ 422/ 485) |
| TPM | 1 | 1 |
| Power | ||
| Power Type | ATX | ATX |
| Connector | ATX24P | ATX24P |
| Environment | ||
| Operational Temperature | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) |
| Non-Operational Temperature | -40 ~ 85° C and 60° C @ 95% RH Non-Condensing | -40 ~ 85° C and 60° C @ 95% RH Non-Condensing |
| Vibration Resistance | 3.5 Grm (Non-Operation Mode) | 3.5 Grm (Non-Operation Mode) |
| Physical | ||
| Dimension (mm) | 244 x 244 mm | 244 x 244 mm |
| Weight | 1.2 kg (2.64 lb), weight of total package | 1.2 kg (2.64 lb), weight of total package |
| Operating System | ||
| Microsoft Windows | Yes | Yes |
| Linux | Yes | Yes |
| SUSIAccess | Yes | Yes |
| Ubuntu | V | V |

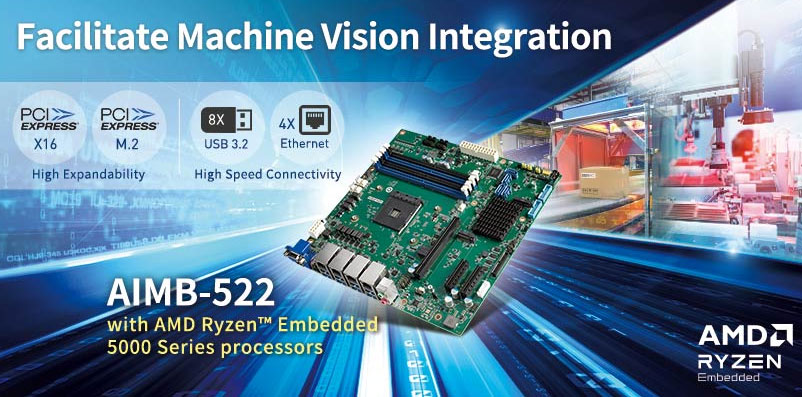

AD-AIMB-522, industrial Micro-ATX motherboard designed for AI image processing in automation and surveillance.
Powered by AMD first desktop processor “Ryzen™ Embedded 5000” with up to 8 high performance “Zen 3” cores, AD-AIMB-522 achieves new level of processing and power efficiency.
AD-AIMB-522 come with a full suite of technologies to elevate your applications including high computing performance-efficiency, high expandability with PCIe Gen4, and up to 4x Gigabit Ethernet ports and 8x USB 3.2, yielding an ideal solution for factory automation, smart logistics and intelligent surveillance.
