AD-AIMB-523
AMD Ryzen™ Embedded 7000 Series processors, MicroATX motherboard with 6 2.5GbE LAN, DDR5, PCIe x16 Gen5
- AMD Ryzen™ Embedded 7000 Series processors with B650 chipset
- 6 2.5Gbe LAN ports for multiple IP-based devices
- High-speed expansions: 8 USB 3.2, 1 M.2 M-key (PCIe Gen4 x4)
- Triple displays by 1 DP and 2 HDMI
- 1 internal USB2.0 type A to support USB keylock functions
- Windows Server and Windows 10/11

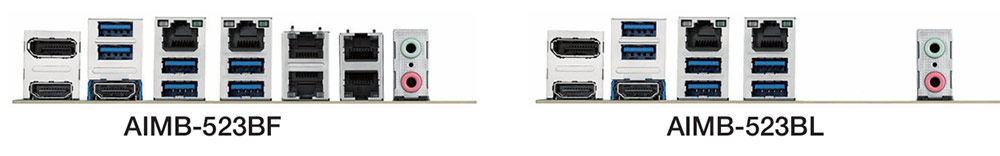

| Model | AIMB-523BK-PAA1 |
| Form Factor | |
| Form Factor | Micro ATX |
| Processor | |
| CPU TDP | 105W/65W |
| Core Number | 12/8/6 |
| Frequency | 3.7GHz~4.7GHz |
| L3 Cache | 32MB~64MB |
| BIOS | AMI EFI 256 Mbit |
| Chipset | B650 |
| Memory | |
| Max. Capacity | 128GB |
| Technology | DDR5 |
| ECC Support | No |
| Socket | 4 x 288-pin DIMM |
| Display | |
| DDI (HDMI/DVI/DisplayPort) | DP/HDMI |
| Multiple Display | Dual/ Triple |
| Expansion | |
| PCI Express x 16 | 1 |
| PCI Express x 4 | 1 |
| PCI Express x 1 | 1 |
| Ethernet | |
| Controller | Intel i226LM |
| Speed | 10/100/1000/2500 Mbps |
| Audio | |
| CODEC | Realtek ALC888S |
| Connector | 2 (Line out, Mic-in) |
| Connector | |
| Connector | RJ45 x 6 |
| Watchdog Timer | |
| WatchDog Timer | Yes |
| Storage | |
| SATA | 4 x SATA III (Max. Data Transfer Rate600 MB/s) |
| RAID | RAID 0, 1, 10 |
| I/O | |
| GPIO | 8-bit GPIO |
| USB 3.2 | 8 |
| COM Port | 4(2 x RS232, 2 x RS232/ 422/ 485) |
| USB2.0 | 1 (internal type A connector) |
| TPM | TPM Module (optional) |
| Power | |
| Power Type | ATX |
| Connector | ATX24P |
| Environment | |
| Operational Temperature | 0 ~ 60° C (32 ~ 140° F) |
| Non-Operational Temperature | -40 ~ 85° C and 60° C @ 95% RH Non-Condensing |
| Vibration Resistance | 3.5 Grm (Non-Operation Mode) |
| Physical | |
| Dimension (mm) | 244 x 244 mm |
| Weight | 1.2 kg (2.64 lb), weight of total package |
| Operating System | |
| Microsoft Windows | Yes |
| Linux | Yes |
| SUSIAccess | Yes |
| Certification | |
| EMC | CE, FCC |

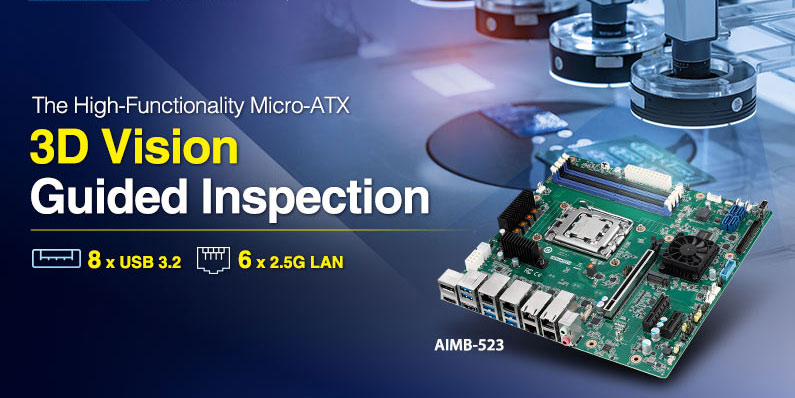

AD-AIMB-523, a high-functionality Micro-ATX motherboard is ideal for 3D vision guided inspection and is powered by AMD Ryzen™ Embedded 7000 series processors with “Zen 4” architecture and 5nm technology. With 12 cores and support for up to 128GB of DDR5 memory, it delivers up to 49% more performance within the same power budget compared to the AMD Ryzen™ 5000 series.
Targeted toward demanding 3D/4D visual capturing applications, AD-AIMB-523 features 6 x 2.5GbE LAN ports and 8 x USB 3.2 ports for high-speed, high-resolution image capturing devices, ensuring exceptional data transmission with minimal latency. It also includes a steel-reinforced PCIe x16 Gen5 slot for dual-slot GPU cards, plus an internal USB Type-A port for a USB security dongle. These features make it an ideal solution for real-time visual inspection applications in industrial automation that require full functionality, precise graphics inference, and high-security data processing capability.
