AD-AIMB-585SV

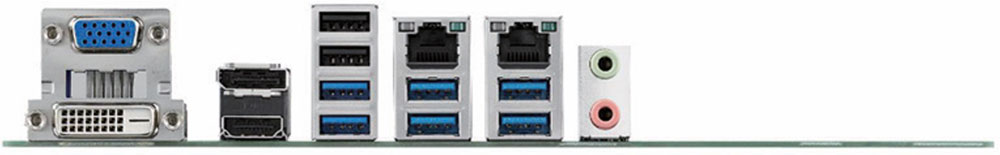

6th & 7th Gen Intel® Xeon E3/ Core™ i7/i5/i3 LGA1151 microATX with DVI-D/ HDMI2.0/ DP++/eDP/ VGA, 2 COM, Dual LAN
- Supports WISE PaaS/RMM and Embedded Software APIs
- Supports Software RAID 0, 1, 5, 10, TPM 1.2/2.0 (optional)
- Supports PCIE Gen3, 10 x USB 3.0, 2 USB 2.0, 8 x SATAIII, 1 miniPCIe(mSATA) and dual GbE LAN
- Supports Intel AMT 11.0 and Intel vPro competent
- Supports DVI-D,HDMI2.0 ,DP++,eDP,VGAdisplay
- Four DIMM sockets support up to 64GB DDR4 2133/2400 MHz SDRAM
- Supports Intel® Xeon®/ 6th & 7th Gen Core™ i7/i5/i3 processor with C236 chipset
Datasheet
Product Specification
| Model | AIMB-585WG2-SVA1E |
| Form Factor | |
| Form Factor | Micro ATX |
| Processor | |
| CPU | Intel® Core™ i7/i5/i3/Pentium |
| CPU TDP | 80W/65W/35W |
| BIOS | AMI EFI 128Mbit |
| Core Number | 2 / 4 |
| Frequency | 2.3GHz ~ 3.6GHz |
| L3 Cache | 2 ~ 8MB |
| Chipset | Intel C236 |
| Memory | |
| Max. Capacity | 64 GB |
| Technology | DDR4 2133MHz |
| ECC Support | Yes/NO |
| Socket | 4 x 288-pin DIMM |
| Display | |
| Controller | Intel HD Graphics |
| Graphic Engine | DirectX11.1, Open GL 4.0 |
| Graphic Memory | 1GB maximum shared memory with 2GB and above system memory installed |
| VGA | Up to 1920 x 1200 at 60 Hz |
| LCD (TTL/LVDS/eDP) | eDP: support to 3840 x 2160 @ 60 Hz |
| DDI (HDMI/DVI/DisplayPort) | HDMI: upto 4096x2160 @60Hz / DVI: 1920x1080 @60Hz / DP: 4096x2304 @60HZ |
| Multiple Display | Dual/ Triple |
| Expansion | |
| PCI Express x 16 | 1 |
| PCI Express x 8 | option |
| PCI Express x 1 | 0 |
| PCI Express x 4 | 1 |
| SMBus | 1 |
| Audio | |
| Audio Interface | HD Audio |
| CODEC | Realtek ALC892, High Definition Audio (HD) |
| Connector | 2 (Line out, Mic-in) |
| Ethernet | |
| Controller | LAN1: Intel i219LM / LAN2: Intel i211AT |
| Speed | 10/ 100/ 1000 Mbps |
| Connector | RJ45 x 2 |
| Watchdog Timer | |
| WatchDog Timer | Yes |
| Storage | |
| SATA | 8 x SATAIII + 1mSATA |
| RAID | Software RAID 0, 1, 5, 10 |
| I/O | |
| GPIO | 16-bit GPIO |
| USB3.0 | 10 |
| USB2.0 | 2 |
| COM Port | 2(2 x RS232, 1 x RS232/ 422/ 485) |
| Keypad | 1 |
| TPM | Optional |
| Smart Fan | 5 |
| Power | |
| Power Type | ATX |
| Connector | ATX24P |
| Power Consumption (Full Load) | 3.66A @ 5V / 1.05A @ 3.3V / 6.02A @12V / 0.29A @ 5Vsb / 0A @ -12V /2.88A @ 5V / 1.06A @ 3.3V / 3.3A @12V / 0.36A @ 5Vsb / 0.01A @ -12V |
| Battery | Lithium 3 V / 200 mAh |
| Environment | |
| Operational Temperature | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Non-Operational Temperature | -20 ~ 70° C (-4 ~ 158F) and 60° C @ 95% RH Non-Condensing |
| Vibration Resistance | 3.5 Grm (Non-Operation Mode) |
| Physical | |
| Dimension (mm) | 244 x 244 mm |
| Weight | 1.2 kg (2.64 lb), weight of total package |
| Operating System | |
| Microsoft Windows | Yes |
| Linux | Yes |
| SUSIAccess | Yes |
| Certification | |
| EMC | CE, FCC |
