AS-IMB-1311-D
microATX motherboard with Socket LGA 1151 for Intel® Core i7/i5/i3/Celeron processor
- Socket LGA 1151 for Intel® Core i7/i5/i3/Celeron
- Supports Dual Channel DDR4 4x Long-DIMM 2400/2666, up to 128GB
- 1 x DVI-D, 1 x HDMI, 1 x Displayport, 1 x eDP
- 6 x USB 3.1, 6 x USB 2.0, 6 x SATA3, 6 x COM
- 1 x PCIe x 16, 1 x PCIe x4, 2 x PCI, 1 x mini-PCIe, 1 x M.2 Key E, 1 x M.2 Key M
- 2 x Intel® LAN
- 1 x TPM 2.0 IC
- ATX PWR 24+8-pin
- Supports RAID function
Datasheet
Product Specification
Form Factor | |
Dimensions | Micro-ATX (9.6-in x 9.6-in) |
Processor System | |
CPU | Socket LGA 1151 for Intel Core i7/i5/i3/Celeron (Supports up to 95W) |
Chipset | Intel Q370 |
Expansion Slot | |
PCIe | 1 xPCIe x16 (Support riser card), 1 xPCIe x4 |
PCI | 2 |
Mini-PCIe | 1 x Full/Half mini-PCIe with PCIe x1 and USB 2.0 |
mSATA | N/A |
M.2 | 1x M.2 (Key E, 2230) with PCIe x1, CNVI and USB 2.0 for Wireless 1x M.2 (Key M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD |
Memory | |
Technology | Dual Channel DDR4 2400/2666 MHz |
Max. | 128GB* * Intel Core i9/i7/i5 CPUs support up to 128GB (32GB per DIMM) Intel Core i3/Pentium/Celeron CPUs support up to 64GB (16GB per DIMM) |
Socket | 4 x Long-DIMM |
Graphics | |
VGA | N/A |
DVI | DVI-D: Supports max resolution up to 1920x1200@60Hz |
LVDS | N/A |
HDMI | Supports max resolution up to 4096x2160@24Hz |
DisplayPort | Supports max resolution up to 4096x2304@60Hz |
MultiDisplay | Triple Display |
eDP | Supports max resolution up to 4096x2304@60Hz |
Ethernet | |
Ethernet | 10/100/1000 Mbps |
Controller | 1 x Intel I210, 1 x Intel I219LM |
Storage | |
SATA | 6 x SATA3 (6.0Gb/s), one is shared with M.2 Key M |

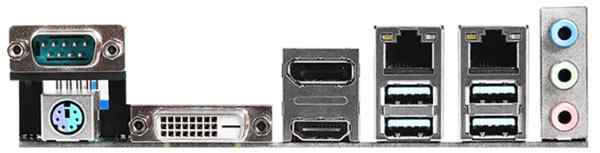

Rear I/O | |
VGA | N/A |
DVI | DVI-D: 1 |
HDMI | 1 |
DisplayPort | 1 |
Ethernet | 2 |
USB | 4 x USB3.1 |
Audio | 3 (Mic-in. Line-in. Line-out) |
Serial | 1 x COM (RS-232/422/485) |
PS2 | 1x PS/2 combo |
Internal Connector | |
USB | 2 x USB 3.1, 6 x USB 2.0 |
LVDS / inverter | N/A |
eDP | 1 |
VGA | N/A |
Serial | 5 x COM(RS-232) |
SATA | 6 x SATA3 (6.0Gb/s), one is shared with M.2 Key M |
Parallel | 1 (shared with GPIO) |
GPIO | 8 x GPI, 8 x GPO |
SATA PWR Output | N/A |
Speaker Header | 1 |
TPM | 1 x Onboard TPM 2.0 IC |
Watchdog Timer | |
Output | From super I/O to drag RESETCON# |
Interval | 256 Segments, 0,1,2…255 Sec |
Power Requirements | |
Input PWR | ATX PWR 24+8-pin |
Power On | AT/ATX Supported AT : Directly PWR on as Power input ready ATX: Press Button to PWR on after Power input ready |
Environment | |
Operating Temp | 0ºC – 60ºC |
Storage Temp | -40ºC – 85° C |
Operating Humidity | 5% ~ 90% |
Storage Humidity | 5% ~ 90% |
