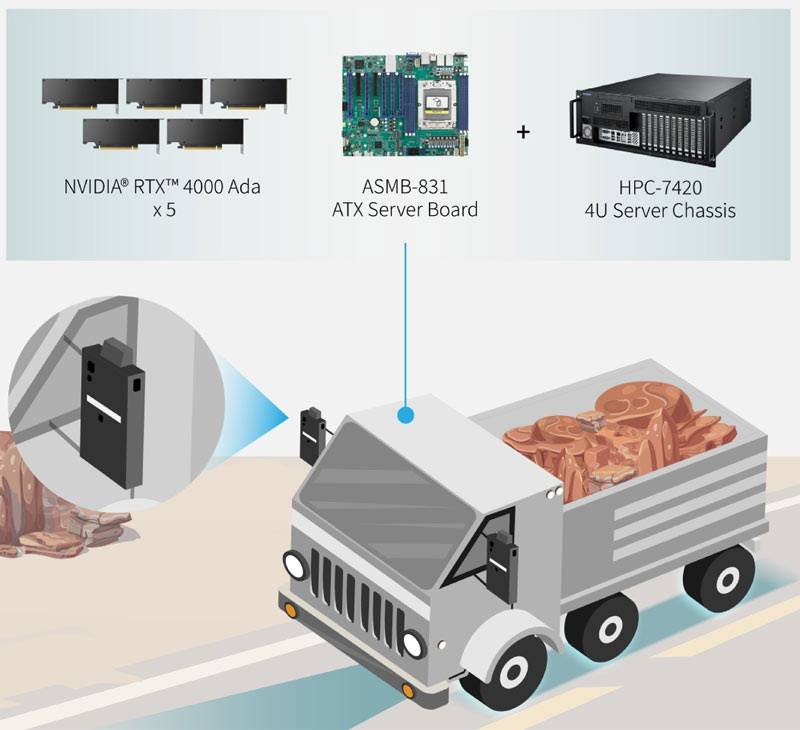

AD-ASMB-831
LGA 6096 AMD® EPYC™ 9004 ATX Server Board with 6 x DDR5, 5 x PCIe x16 + 2 x PCIe x8, 9 x SATA3, 7 x USB 3.2 (Gen1), Dual 10GbE, and IPMI
- LGA 6096 (Socket SP5) ATX server board with AMD® EPYC™ 9004 processor
- DDR5 4800 MHz RDIMM up to 384GB (6 DIMMs)
- Five PCIe x16 (Gen5) and two PCIe x8 (Gen5) for four double-deck cards
- Intel® X710-AT2 dual 10GbE ports
- Nine SATA3 and seven USB 3.2 (Gen1) ports
- Two M.2 2280/22110 (SATA / PCIe compatible)
- 0 ~ 60 °C/ 32 ~ 140 °F ambient operating temperature range
Datasheet
Product Specification
| Model | ASMB-831T2-00A1 |
| Processor System | |
| CPU | AMD EPYC™ 9004 processors |
| CPU TDP | Up to 210W |
| Frequency | Up to 3.0 GHz |
| Core Number | Up to 32 cores |
| L3 Cache | Up to 256MB |
| BIOS | AMI SPI 256 Mbit |
| Integrated Graphics | - |
| Form Factor | |
| Form Factor | ATX |
| Memory | |
| Capacity | Up to 384 GB |
| Technology | DDR5 ECC-REG 4000/4400/4800 MHz |
| Socket | 8 x 288-pin DIMM |
| Type | RDIMM/ LRDIMM |
| ECC Support | Yes |
| REG Support | YES |
| Display | |
| Controller | ASPEED AST2600 |
| Graphic Memory | Onboard memory 64MB |
| Multiple Display | - |
| Display Interface | VGA: Up to 1920 x 1200 |
| Expansion Interface | |
| PCI Express x 16 | 5 (Gen5) |
| PCI Express x 8 | 2 (Gen5) |
| Ethernet | |
| Controller | LAN1: Intel X710-AT2, LAN2: Intel Intel X710-AT2, LAN3: Realtek 8211F |
| Speed | 10/100/1000 Mbps & 10G Base-T |
| Connector | 3 x RJ45 |
| Watchdog Timer | |
| Output | System Reset |
| Interval | Programmable 1 ~ 255 sec/min |
| I/O | |
| SATA | 9 x SATA3 |
| SAS Port | - |
| SAS controller | - |
| USB2.0 | 7 (1 TypeA) |
| USB3.0 | 7 |
| GPIO | 8-bit |
| LPT | - |
| COM Port | 1 (1 x RS232) |
| PS/2 Keyboard/Mouse | - |
| SPDIF | - |
| System Fan | 5 |
| Rear I/O Interface | |
| Display | VGA x1 |
| LAN | 3 (One is for remote IPMI/iKVM consloe Only and doesn't have LAN function) |
| USB3.0 | 4 |
| USB2.0 | - |
| COM | 1 (1 x RS232) |
| PS/2 | - |
| VGA | 1 |
| DVI | - |
| Power Requirement | |
| Current | 2.96A/3.26A/0.61A/15.72A/6.87A |
| Voltage | +12V/+5V/+3.3V/+5Vsb/-12V/12V_8P |
| Environment | |
| Operating-Temperature | 0 ~ 60° C (32 ~ 140° F) |
| Non-Operational Temperature | -40 ~ 85° C (-40 ~ 185° F) |
| Non-Operating Vibration | 3.5 Grms |
| Physical Characteristics | |
| Dimensions (LxW) | 304.8 x 244 mm (12" x 9.6") |
| Weight | 1.3 kg |
| Certification | |
| EMC | CE/FCC |
| Management Solution | |
| Software | IPMI 2.0 |
| Out of band remote management | IPMI 2.0 |
