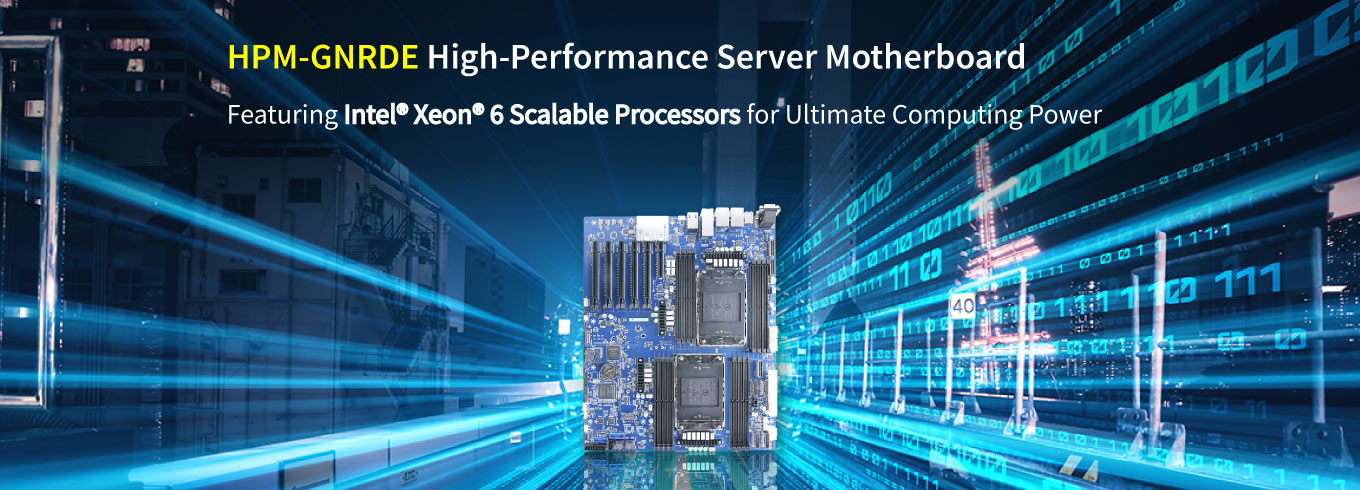

A-HPM-GNRDE
Dual Intel®Xeon® 6 Scalable Processor EATX Server Board with IPMI2.0. Processor supports up to 350W TDP
- Dual Intel LGA4710 Sockets support Intel® Xeon® 6 6500P & 6700P series Processor (Max. TDP at 350W each)
- 16 x DDR5 6400 MHz RDIMM & 8000 MHz MRDIMM up to 4TB
- TPM 2.0 onboard
- IPMI 2.0 with AST 2600 BMC controller onboard.
- 2 x Intel I210AT 1GbE controllers
- 1 x Intel E610-XAT2 10GbE controller supports 2 x 10GbE Ethernet ports
- 9 x SATA III(2 x MiniSAS HD 4i (for 4x SATA Only) & 1 x 7 pin SATA connector)
- 1 x RS232 port
- 6 x USB 3.2 Gen2 ports at Edge I/O
- 1 x M.2 M-Key slots PCIe 5.0 x4 NVMe SSD,2242/2260/2280/22110 form factor
- 1 x M.2 M-Key slots PCIe 5.0 x4 NVMe SSD,2242/2260/2280 form factor
- 12” x 13.974” (304.8mm x 354.94mm), PCB thickness is 2.8mm
Datasheet
Product Specification
| System Information | |
| Processor | Dual Intel LGA4710 Sockets support Intel® Xeon® 6 6500P & 6700P series Processor (Max. TDP at 350W each) |
| System Memory | 16 x DDR5 6400 MHz RDIMM & 8000 MHz MRDIMM Up to 4TB |
| Watchdog Timer | System reset event 0 ~ 6553 seconds |
| BIOS | AMI UEFI BIOS |
| H/W Status Monitor | CPU temperature Fan speed and voltage monitoring Fan speed control Case open detection |
| TPM | TPM 2.0 onboard |
| IPMI | IPMI 2.0 with AST 2600 BMC controller onboard |
| Rear I/O | |
| USB | 6 x USB 3.2 Gen2 ports |
| COM Port | 1 x RS232 port |
| RJ-45 | 5 x RJ45 MGMT port for dedicated IPMI access only LAN1 port for 1GbE shared with IPMI access LAN2 port for 1GbE LAN3 and 4 ports for 10GbE |
| VGA | 1 x VGA port |
| Display | |
| Graphic Chipset | AST2600 BMC controller |
| Resolution | 1 x VGA port VGA: 1920 x 1200 @ 60Hz 32bpp |
| Expansion | |
| Expansion | 5 x PCIe Gen5 x16 slots & 1 x PCIe Gen5 x8 slot Slot 1, PCIe 5.0 x16 from 1st CPU Slot 2, PCIe 5.0 x16 from 2nd CPU Slot 3, PCIe 5.0 x16 from 2nd CPU Slot 4, PCIe 5.0 x16 from 2nd CPU Slot 5, PCIe 5.0 x16 from 2nd CPU Slot 6, PCIe 5.0 x8 from 1st CPU(Slot 7 is the slot closest to CPU) |
| Storage | |
| M.2 | 1 x M.2 M-Key slots to support 1 x PCIe 5.0 x4 NVMe SSD from 1st CPU 2242/2260/2280/22110 form factor 1 x M.2 M-Key slots to support 1 x PCIe 5.0 x4 NVMe SSD from 1st CPU 2242/2260/2280 form factor |
| I/O | |
| USB | 2 x Internal USB 3.2 Gen2 ports 1 x Internal USB 3.2 Gen1 type A receptacle 2 x Internal USB 3.2 Gen1 ports |
| SATA | 9 x SATA III (2 x Mini-SAS HD 4i (for 4 xSATA only) & 1 x 7pin SATA connector) |
| Serial | 1 x Internal RS232 port |
| Other | 4 x Slim SAS 8i (SFF-8654) connectors (from 1st CPU) 3 x MCIO x8 connectors (SFF-TA-1016) (from 2nd CPU) |
| CMOS Battery | 1 x Horizontal Socket Type CMOS Battery Holder with CR2450 |
| Ethernet | |
| LAN Chipset | 2 x Intel I210AT 1GbE controllers 1 x Intel E610-XAT2 10GbE controller supports 2 x 10GbE Ethernet ports |
| LAN Port | 5 x RJ45 MGMT port for dedicated IPMI access only LAN1 port for 1GbE shared with IPMI access LAN2 port for 1GbE LAN3 and 4 ports for 10GbE |
| Mechanical & Environmental | |
| Operating Temp. | 0 °C to 60 °C (without Intel E610) 0 °C to 55 °C (with Intel E610) |
| Storage Temp. | -40 °C to 85 °C |
| Operating Humidity | 40°C 95% non-condensing |
| Power Connector | 1 x Std. 24 Pin ATX connector 5 x 8 Pin SSI 12V connectors |
| Dimension (L x W) | 12” x 13.974” (304.8mm x354.94mm), PCB thickness is 2.8mm |
| Software Support | |
| OS | Windows 11 SAC and LTSC Windows Server 2025 Ubuntu Red Hat Enterprise Linux (RHEL) |
