O-IGS-9084GP-LA

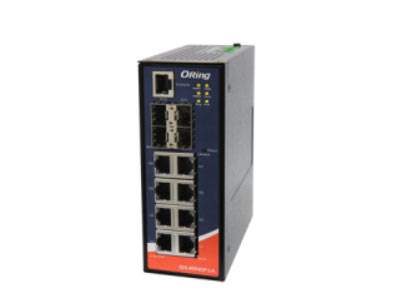

Industrial Slim 12-port managed Gigabit Ethernet switch with 8x10/100/1000Base-T(X) ports and 4x100/1000Base-X, SFP socket

Anewtech Systems Industrial Ethernet Switch managed Switch O-IGS-9084GP-LA
  • Support O-Ring(recovery time < 30ms over 250 units of connection) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
  • Open-Ring support the other vendor's ring technology in open architecture
  • O-Chain allow multiple redundant network rings
  • *note Support standard IEC 62439-2 MRP (Media Redundancy Protocol) function
  • Support IPV6 new internet protocol version
  • Support Modbus TCP protocol
  • Support IEEE 802.3az Energy-Efficient Ethernet technology
  • Provided HTTPS/SSH protocol to enhance network security
  • Support SMTP client and NTP server protocol
  • Support IP-based bandwidth management
Product Specification
ModelIGS-9084GP-LA
Physical Ports
10/100/1000Base-T(X) with Ports in RJ45 Auto MDI/MDIX8
100/1000Base-X with SFP port4
Technology
Ethernet StandardsIEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3x for Flow control
IEEE 802.3ad for LACP (Link Aggregation Control Protocol )
IEEE 802.1p for COS (Class of Service)
IEEE 802.1Q for VLAN Tagging
IEEE 802.1D for STP (Spanning Tree Protocol)
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol)
IEEE 802.1x for Authentication
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
MAC Table8K
Priority Queues8
ProcessingStore-and-Forward
Switch PropertiesSwitching latency: 7 us
Switching bandwidth: 24Gbps Throughput (packet per second) : 17.856Mpps@64Bytes packet
Max. Number of Available VLANs: 4096
VLAN ID Range : VID 0 to 4095
IGMP multicast groups: 256 for each VLAN
Port rate limiting: User Define
Jumbo frameUp to 9.6K Bytes
Security FeatuesDevice Binding security feature
Enable/disable ports, MAC based port security
Port based network access control (802.1x)
VLAN (802.1Q ) to segregate and secure network traffic
Radius centralized password management
SNMPv3 encrypted authentication and access security
Https / SSH enhance network security
Software FeaturesSTP/RSTP/MSTP (IEEE 802.1D/w/s)
Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units
TOS/Diffserv supported
Quality of Service (802.1p) for real-time traffic
VLAN (802.1Q) with VLAN tagging
IGMP Snooping
IP-based bandwidth management
Application-based QoS management
DOS/DDOS auto prevention
Port configuration, status, statistics, monitoring, security
DHCP Server/Client/Relay
SMTP Client
Modbus TCP
NTP server
Network RedundancyO-Ring
Open-Ring
O-Chain
*note MRP
MSTP (RSTP/STP compatible)
RS-232 Serial Console PortRS-232 in RJ45 connector with console cable. 115200bps, 8, N, 1
LED Indicators
Power Indicator (PWR)Green : Power LED x 3
Ring Master Indicator (R.M.)Green : Indicates that the system is operating in O-Ring Master mode
Ring indicator (Ring)Green : Indicates that the system operating in O-Ring mode
Green Blinking : Indicates that the Ring is broken.
Fault indicator (Fault)Amber : Indicate unexpected event occurred
10/100/1000Base-T(X) RJ45 port IndicatorGreen for Port LINK/ACT indicator
Dual color LED for speed indicator: Green for 1000Mbps / Amber for 100Mbps / off-light for 10Mbps
100/1000Base-X SFP port IndicatorGreen for port Link/Act.
Fault Contact
RelayRelay output to carry capacity of 1A at 24VDC
Reset Function
Reset Button< 5 sec: System reboot, > 5 sec: Factory default
Power
Redundant Input PowerDual DC inputs. 12~48VDC on 6-pin terminal block
Power Consumption (Typ.)13 Watts
Overload Current ProtectionPresent
Reverse Polarity ProtectionPresent
Hi-POT1.5KV AC
Physical Characteristics
EnclosureIP-30
Dimensions (W x D x H)54.3 (W) x 108.3 (D) x 145.1 (H) mm (2.13 x 4.26 x 5.71 inches)
Environmental
Storage Temperature-40 to 85°C (-40 to 185°F)
Operating Temperature-40 to 75°C (-40 to 167°F)
Operating Humidity5% to 95% Non-condensing
Regulatory Approvals
EMCCE EMC (EN 55024, EN 55032), FCC Part 15 B
EMIEN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A
EMSEN 55024 (IEC/EN 61000-4-2 (ESD: Contact 8KV, Air 10KV), IEC/EN 61000-4-3 (RS),IEC/EN 61000-4-4 (EFT Power 2KV, Single 2KV), IEC/EN 61000-4-5 (Surge: Power 4KV, RJ45 4KV), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11 (DIP))
ShockIEC60068-2-27
Free FallIEC60068-2-31
VibrationIEC60068-2-6
SafetyEN60950-1
