A-ARC-1232

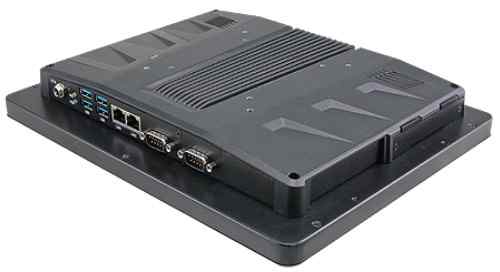

12.1" 6th Gen Intel® ULT Core™ Processor i7/i5/i3 Fanless Rugged Touch Panel PC with IET Expansion

Anewtech Systems Industrial Panel PC Avalue Rugged Touch Computer A-ARC-1232
  • Onboard 6th Gen Intel® ULT Core™ i5 6300U 2.40GHz BGA Processor
  • One SODIMM sockets supports up to 16GB DDR4 2133 SDRAM
  • 4 USB3, 2 COM
  • Dual Intel Gigabit LAN
  • Wide Voltage +12V ~ +26V Input, ErP Power
  • Available Expansion for Audio, USB, COM, HDMI, MPCIe, GPIO, CAN Bus
  • IP65 Compliant Front Panel, IP41 Rear Box
  • 5-wire Resistive Touch
  • TPM 1.2 Function (Optional)
Datasheet
Product Specification
Anewtech ARC-1232  Industrial Touch Panel PC Avaule Rugged Panel PC" data-align="cente
System Information
Processor6th Gen Intel® Core™ i5-6300U, 2-Core, 2.4GHz processor
System Memory1 x 260-Pin DDR4 2133MHz SO-DIMM up to 16 GB
I/O ChipsetEC ITE IT8528E
Watchdog TimerH/W Reset, 1sec. ~ 65535min. and 1sec. or 1min./step
H/W Status MonitorMonitoring CPU & System Temperature and Voltage
SBCARC-SKLU
Expansion
Expansion1 x Mini PCIe Support mSATA
1 x 80-pin IET interface
Storage
Storage1 x 2.5" Drive Bay (7mm HDD Restricted)
Panel
LCD Size12.1", 4:3
Display TypeXGA
Resolution1024 x 768
Pixel pitch0.240 mm (H) x 0.240 mm (V)
Luminance600 cd/m²
Contrast ratio1000
Viewing angle89 (U), 89 (D), 89 (L), 89 (R)
Response time11 ms
BacklightLED
Touch Type5 Wires resistive
Touch Light Transmission80 %
Touch ControllerOnboard USB touch (PenMount)
I/O
USB Port4 x USB 3.0
COM Port1 x RS-232/422/485
1 x RS-232
SATA1 x SATA III
Other3 x Knockouts for Antenna Mounting
Display
Graphic ChipsetIntel® Skylake SoC integrated Graphics
Supports optional dual display
Spec. & ResolutionHDMI: Max. resolution 4096x2160 @ 24Hz
(Optional by IET module)
Audio
Audio CodecRealtek ALC888S
Speaker Output2 x 0.6W
Certifications
Certification InformationCE / FCC Class B
Ethernet
LAN Chipset1 x Intel® I211AT
1 x Intel® I219LM
Ethernet Interface10/100/1000 Base-Tx GbE compatible
LAN Port2 x RJ-45
Power Requirement
DC Input+12V ~ +26V
DC Input ConnectorLockable DC Jack
AdapterInput: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W Adapter (12V @ 5A Adapter) AC-DC Adapter
Mechanical & Environmental
Operating Temperature-10°C ~ 50°C (14°F ~ 122°F)
Storage Temperature-20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity0% ~ 90% Relative Humidity, Non-condensing
Weight2.4 Kgs
Vibration TestWith SSD/mSATA : 5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 1hr/axis
Shock TestOperating with SSD/CFast/mSATA : MIL-STD-810G, Method 516.6, Procedure I, functional shock=20G
IP RatingFront IP65
Rear IP41
Mounting KitWall / Stand / VESA 75mm x 75mm, 100mm x 100mm
Power ModeAT/ATX (ATX is default setting)
System FanFanless
Construction - FrontSilver Aluminum
Construction - RearBlack Die Casting
Dimension284 x 223 x 46 mm
Software Support
OS InformationWin 7/ 8.1 / 10 / Linux
