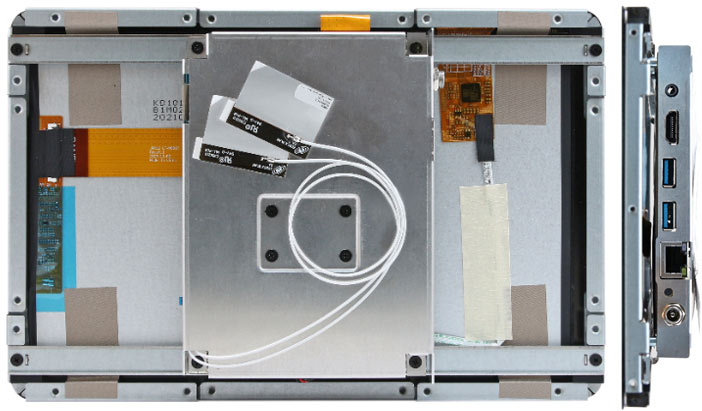

A-OFT-10WAD
10.1" Open Frame Tablet with Intel® N50
- 10.1" 1280 x 800 / 1920 x 1200 Open Frame Tablet with PCAP touch
- Intel® Processor N50, 6M Cache, up to 3.4 GHz
- Onboard 8GB LPDDR5 / 64GB eMMC
- Support Windows 10/11, Ubuntu 24.04
- Fanless operation from 0°C ~ 40°C
Datasheet
Product Specification
| System Information | |
| Processor | Intel® Processor N50, 6M Cache, up to 3.4 GHz |
| System Memory | 8GB LPDDR5 |
| CPU Cooler (Type) | Heatsink |
| Storage | |
| Storage | 64GB eMMC |
| Other Storage Device | 1 x Micro SD Slot |
| Ethernet | |
| LAN Chipset | Realtek RTL8111I-CG |
| Ethernet Interface | 10/100/1000 Base-Tx GbE compatible |
| Power Requirement | |
| DC Input | +12V ~ +24V |
| DC Input Connector | Lockable DC Jack |
| Software Support | |
| OS | Windows 10/11, ubuntu 24.04 |
| Certification | |
| Certification Information | CE, FCC Class A |
| Panel | |
| LCD Size | 10.1’’ |
| Resolution | 1280 x 800 1920 x 1200 |
| Luminance | 350 cd/m2 |
| Viewing angle | 87.5 (U), 87.5 (D), 87.5 (L), 87.5 (R) |
| Touch Type | Projective capacitive multi-touch up to 10 points |
| External I/O | |
| USB Port | 2 x USB 3.0 |
| Audio Port | 1 x Audio Jack TRS |
| LAN Port | 1 x RJ45 |
| HDMI | 1 x HDMI 2.0 Out |
| DC input | 1 x DC Jack |
| Other | 1 x Power button |
| Internal I/O | |
| Internal I/O Connector | 1 x A-MIC 1 x 16bit GPIO 1 x I2C 1 x RS-232/RS-485 1 x RTC Battery 1 x Speaker 2 x Touch Button 1 x USB 2.0 2 x USB 2.0 + DMIC |
| Wireless Communication | |
| WLAN | Wi-Fi 802.11a/b/g/n/ac/ax |
| Bluetooth | Optional BT 5.2 |
| DC In / Out Characteristics | |
| Input Voltage Range | DC +12 ~ +24V |
| Power Type | AT |
| Mechanical & Environmental | |
| Operating Temp. | 0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temp. | -20°C ~ 60°C (-4°F ~ 140°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Weight | 0.78kg |
| Dimension | 252 x 165.8 x 30.6 mm |
