SYS-E300-9D-8CN8TP
Embedded system supports Intel® Xeon® processor D-2146NT, 8-Core, 16 Threads, 80W
- Intel® Xeon® processor D-2146NT, 8-Core, 16 Threads, 80W
- System on Chip
- 1 Fixed 2.5" drive bay with bracket
- 1 M.2 slot M key for SSD, 2242/80, 1 M.2 B Key for SSD/ WAN card, 1 Mini-PCI-E with mSATA Support, 1 PCI-E 3.0 x8 slot
- Up to 512GB ECC LRDIMM, up to 256GB ECC DIMM DDR4-2666Mz; in 4 DIMM slots
- 4x 1GbE, 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
- Built in Intel QAT up to 40Gbps Crypto/Compression
Product Specification
| Product SKU | |
| SYS-E300-9D-8CN8TP | SuperServer E300-9D-8CN8TP (Black) |
| Motherboard | Super X11SDV-8C-TP8F |
| Processor/Cache | |
| CPU | Intel® Xeon® processor D-2146NT,CPU TDP support 80W |
| Cores / Cache | 8 Cores, 16 Threads |
| System Memory | |
| Memory Capacity | Up to 512GB DDR4 ECC LRDIMM Up to 256GB DDR4 ECC DIMM 4 DIMM slots |
| Memory Type | 2666/2400/2133MHz ECC LRDIMM and ECC DIMM Operating speed up to 2400MHz |
| DIMM Sizes | RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB LRDIMM: 16GB, 32GB, 64GB, 128GB |
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors Detects double-bit errors(using ECC memory) |
| On-Board Devices | |
| Chipset | System on Chip |
| SATA | SATA3 (6Gbps) ports via SoC controller |
| Network Controllers | Quad 1GbE with Intel I350-AM4 Dual 10GBase-T with Intel X557 Dual 10G SFP+ via SoC |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Graphics | Aspeed AST2500 BMC |
| Input / Output | |
| SATA | SoC controller for 4 SATA3 (6Gbps) ports |

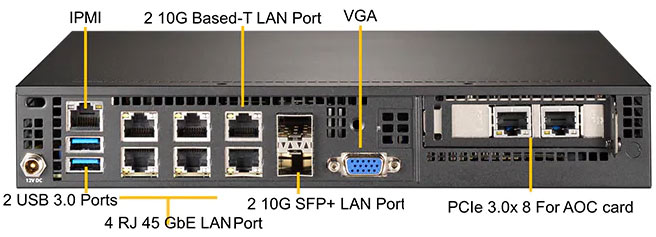

| LAN | 2x 10G SFP+ ports 2x 10GBase-T LAN ports 4x 1GbE LAN ports 1 Dedicated IPMI LAN port |
| USB | 2 USB 3.0 ports (rear) |
| Display | 1 VGA port |
| TPM | 1 TPM 2.0 header |
| Chassis | |
| Form Factor | Compact |
| Model | CSE-E300 |
| Dimensions | |
| Width | 10" (254mm) / 15" (381mm) - pkg. |
| Height | 1.7" (43mm) / 10.87" (276mm) - pkg. |
| Depth | 8.9" (226mm) / 5.59" (142mm) - pkg. |
| Weight | Gross Weight: 7.5 lbs (3.4 kg) Net Weight: 3.45 lbs (1.56 kg) |
| Available Colors | Black |
| Front Panel | |
| Buttons | Power On/Off button |
| LEDs | Power LED (Hard drive activity LED) |
| Expansion Slots | |
| PCI-Express | 1 PCI-E 3.0 x8 slot |
| Drive Bays | |
| Internal | 1 Fixed 2.5" drive bay with bracket (when AOC area is not occupied) |
| System Cooling | |
| Fans | 3x 40x28mm 4-PIN PWM Fan |
| Power Supply | DC Power Adapter with PFC |
| System BIOS | |
| BIOS Type | 128Mb SPI Flash with AMI BIOS |
| BIOS Features | PCI 3.0, ACPI 5.0, USB Keyboard support, Hardware BIOS Virus protection SMBIOS 2.8, UEFI 2.4, RTC (Real Time Clock) Wakeup |
| Management | |
| Software | Intel® Node Manager IPMI 2.0 KVM with dedicated LAN NMI SUM SuperDoctor® 5 Watch Dog |
| Power Configurations | ACPI Power Management, +12V DC Power Input Control of power-on for recovery from AC power loss CPU thermal trip support for processor protection, M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL |
| Fan | Fans with tachometer status monitoring Status monitor for speed control Low noise fan speed control Pulse Width Modulated (PWM) fan connectors |
| Operating Environment / Compliance | |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 0°C to 35°C (32°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
