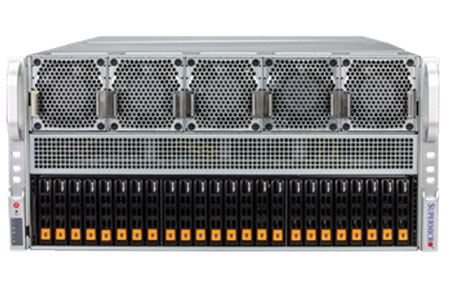

SYS-522GA-NRT
DP Intel 5U Dual-Root PCIe GPU Server with up to 10 GPUs and extended thermal capacity
- Support for up to 10 double-width PCIe GPU accelerator cards
- Flexible networking with up to AIOM slots
- Up to 13 PCIe 5.0 x16 FHFL slots
- 16 front hot-swap 2.5" NVMe + 8 front hot-swap 2.5" NVMe for Storage RDMA
Key Applications
- High Performance Computing
- VDI
- AI/Deep Learning Training
- Media/Video Streaming
- Cloud Gaming
- Animation and Modeling
- Design & Visualization
- 3D Rendering
- Diagnostic Imaging
Datasheet
Product Specification
| Product SKUs | SuperServer SYS-522GA-NRT |
| Motherboard | Super X14DBG-AP |
| Processor | |
| CPU | Dual Socket BR (LGA-7529) Intel® Xeon® 6900 series processors with P-cores |
| Core Count | Up to 128C/256T; Up to 504MB Cache per CPU |
| Note | Supports up to 500W TDP CPUs (Air Cooled) Supports up to 500W TDP CPUs (Liquid Cooled) |
| GPU | |
| Max GPU Count | Up to 10 double-width or 10 single-width GPUs |
| Supported GPU | NVIDIA PCIe: H100 NVL, L40S, L4 |
| CPU-GPU Interconnect | PCIe 5.0 x16 Switch Dual-Root |
| GPU-GPU Interconnect | NVIDIA® NVLink® Bridge (optional) |
| System Memory | |
| Memory | Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM |
| On-Board Devices | |
| Chipset | System on Chip |
| Network Connectivity | 2 RJ45 10GbE with Intel® X710-AT2 |
| Input / Output | |
| LAN | 2 RJ45 10 GbE LAN ports (Intel® I350) |
| USB | 2 USB 3.0 Type-A ports(Rear) |
| Video | 1 VGA port |
| System BIOS | |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management | |
| Software | SuperCloud Composer Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power configurations | Power-on mode for AC power recovery ACPI Power Management |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory 8+4 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
| Form Factor | 5U Rackmount |
| Model | CSE-528G2TS-R5K40P |
| Dimensions and Weight | |
| Height | 8.75" (222.5 mm) |
| Width | 17.2" (437 mm) |
| Depth | 29" (737 mm) |
| Package | 17.32" (H) x 28.34" (W) x 42.51" (D) |
| Weight | Gross Weight: 100 lbs (45.3 kg) Net Weight: 65.5 lbs (29.7 kg) |
| Available Color | Black Front & Silver Body |
| Front Panel | |
| LED | Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED |
| Buttons | Power On/Off button System Reset button |
| Expansion Slots | |
| PCI-Express (PCIe) Configuration | Default 13 PCIe 5.0 x16 FHFL slots |
| Drive Bays / Storage | |
| Drive Bays Configuration | Default: Total 24 bays 24 front hot-swap 2.5" PCIe 5.0 NVMe drive bays |
| M.2 | 2 M.2 NVMe slots (M-key) |
| System Cooling | |
| Fans | 10 heavy duty fans with optimal fan speed control |
| Air Shroud | 1 Air Shroud |
| Liquid Cooling | Direct to Chip (D2C) Cold Plate (optional) |
| Power Supply | |
| Power Supply | 6x 2700W Redundant Titanium Level (96%) power supplies |
| Dimension (WxHxL) | 73.5 x 40 x 203 mm |
| AC Input | 2700W: 200-240Vac 2700W: 200-240Vac / 50-60Hz 2700W: 240-240Vdc / 50-60Hz (for CQC only) |
| +12V | Max: 225A / Min: 0A (200Vac-240Vac) Max: 225A / Min: 0A (240Vdc-240Vdc) |
| 12V SB | Max: 3.5A / Min: 0A Max: 4A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
Optimized for Large-Scale AI Training, Generative AI and HPC
GPU SuperServer SYS-522GA-NRT
X14 PCIe GPU Server: Flexible configurations for AI training, Media, 3D Design, and Simulation
Key Features
- Dual Intel® Xeon® 6900 series processors with P-cores
- Supports up to 10 double-width GPUs including NVIDIA H100/H200 NVL, L40S, and RTX 6000 Ada
- Up to 13 PCIe 5.0 slots
- Support for DDR5-6400 and 8800MT/s MRDIMMs
- Up to 24 NVMe drives
- Enhanced thermal design to support up to 10 GPUs with free-air cooling
- Direct-to-chip CPU and GPU liquid cooling options
