SYS-620C-TN12R
2U CloudDC server. 12x 3.5" NVMe/ SAS/ SATA bays, 4 PCIe 4.0 x16 slots
- Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
- Intel® C621A Chipset
- 16 DIMMs up to 6TB 3DS ECC DDR4-3200: LRDIMM/RDIMM/Intel® DCPMM
- 4 PCI-E 4.0 x16 FHHL (OR) 2 PCI-E 4.0 x16 FHHL and 4 PCI-E 4.0 x8 FHHL;
2 PCI-E 4.0 x16 AIOM (OCP 3.0); 2 PCI-E 3.0 x2 NVMe M.2 - Dual AIOM with NCSI (OCP 3.0) for networking, 1 dedicated IPMI LAN

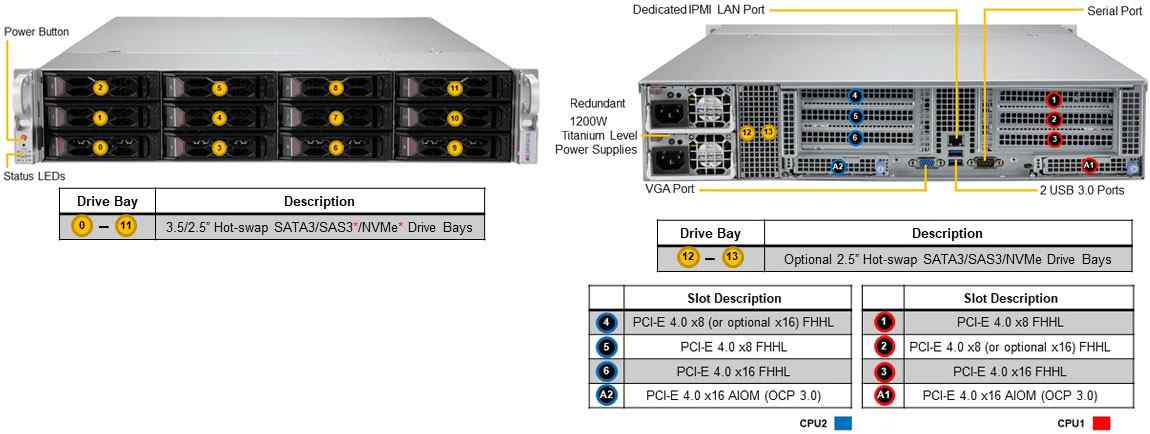

- 12x 3.5/2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
- 3 heavy duty fans with optimal fan speed control, 1 air shroud
- 1200W redundant Titanium level 100-240Vac and 200-240 Vdc power supplies
- 1 VGA, 1 COM, 2 USB 3.0 (rear)
Datasheet
Product Specification
| Product SKU | |
| SYS-620C-TN12R | SuperServer SYS-620C-TN12R |
| Motherboard | Super X12DDW-A6 |
| Processor/Cache | |
| CPU | Dual Socket P4 (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors |
| Core Count | Up to 40C/80T; Up to 60MB Cache per CPU |
| Note | Supports up to 270W TDP CPUs (Air Cooled) |
| GPU | |
| Max GPU Count | Up to 2 double-width or 6 single-width GPU(s) |
| Supported GPU | Intel PCIe: Intel Data Center GPU Flex 170 NVIDIA PCIe: RTX A6000,RTX A4500,A16,A100,RTX A5000,A30,A2 |
| System Memory | |
| Memory | Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 Supports Intel® Optane™ persistent memory 200 series |
| Memory Voltage | 1.2 V |
| On-Board Devices | |
| NVMe | NVMe; RAID 0/1/5/10 support |
| SATA | SATA3 (6Gbps); RAID 0/1/5/10 support |
| Chipset | Intel® C621A |
| IPMI | Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output | |
| SATA | 1 SuperDOM port(s) |
| LAN | 1 Dedicated IPMI LAN port |
| USB | 2 USB 3.0 port(s) (2 rear) |
| Video | 1 VGA port(s) |
| System BIOS | |
| BIOS Type | AMI 32MB SPI FLASH ROM |
| Management | |
| Power Configurations | ACPI/APM Power Management |
| PC Health Monitoring | |
| CPU | 4+1 Phase-switching voltage regulatorMonitors for CPU Cores, Chipset Voltages, Memory. |
| FAN | Fans with tachometer monitorinPulse Width Modulated (PWM) fan connectorsStatus monitor for speed control |
| Temperature | Monitoring for CPU and chassis environmentThermal Control for fan connectors |
| Chassis | |
| Form Factor | 2U Rackmount |
| Model | CSE-LA26AC12-R1K23AW |
| Dimensions and Weight | |
| Height | 3.5" (89mm) |
| Width | 17.2" (437mm) |
| Depth | 25.5" (648mm) |
| Package | 11.4" (H) x 26.7" (W) x 34.5" (D) |
| Weight | Net Weight: 33.5 lbs (15.2 kg) Gross Weight: 60 lbs (27.2 kg) |
| Available Color | Black front & sliver body |
| Front Panel | |
| Buttons | Power On/Off button |
| LEDs | HDD activity LEDNetwork activity LEDsPower status LEDUniversal Information (UID) LED |
| Expansion Slots | |
| PCI-Express (PCI-E) | Slot 1: PCI-E 4.0 x8 FH, 6.6"L (optional x16 by merging slot 2) Slot 2: PCI-E 4.0 x8 FH, 6.6"L Slot 3: PCI-E 4.0 x16 FH, 6.6"L Slot 4: PCI-E 4.0 x8 FH, 6.6"L Slot 5: PCI-E 4.0 x8 FH, 6.6"L (optional x16 by merging slot 4) Slot 6: PCI-E 4.0 x16 FH, 6.6"L Slot A1: PCI-E 4.0 x16 OCP 3.0 Mezzanine NIC Slot A2: PCI-E 4.0 x16 OCP 3.0 Mezzanine NIC (Slot 1, 2, 4 and 5 can support FH, 10.5"L by using 1U heatsinks. Some slots share PCIe lanes with NVMe drives.) |
| Drive Bays / Storage | |
| Hot-swap | 12x 3.5" hot-swap NVMe/SATA/SAS drive bays (12x 2.5" NVMe hybrid) (Some PCIe expansion slots may disable to support 9 or more direct-attached NVMe drives.) |
| M.2 | 2 M.2 NVMeM-Key, 2280 |
| System Cooling | |
| Fans | 3x 8cm heavy duty fans with optimal fan speed control |
| Air Shroud | 1 Air Shroud(s) |
| Power Supply | AC 1200W, Titanium Level, Redundancy,PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH |
| Dimension(W x H x L) | 76 x 40 x 336 mm |
| Output Type | Gold Finger |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
Visual Inferencing Optimized
Scalable platform with up to 6 GPUs designed for image AI processing in the cloud
Key Features
- GPU: Up to 6 Intel® Data Center GPU Flex Series per node (in PCI-E 4.0 x16/x8)
- CPU: Dual 3rd Gen Intel® Xeon® Scalable Processors
- Memory: 16 DIMMs; up to 4TB, or 6TB with Intel® Optane® Persistent Memory
- Drives: 12x 2.5”/3.5” hot-swap NVMe/SAS/SATA hybrid drive bays
