AS-3015MR-H10TNR
Microcloud A+ Server. Up to 4 DIMMs supporting up to 192GB DDR5-5200 in 2DPC
- Single Socket AM5 (LGA-1718) AMD EPYC Raphael 4004 series Processors up to 170W with air cooling
- Support for up to 1 single-width PCIe GPU accelerator card
- Up to 4 DIMMs supporting up to 192GB DDR5-5200 in 2DPC
- Up to 1 PCIe 5.0 x16 LP + 1 PCIe 4.0 x8 MicroLP slots
- Up to 2 internal 2.5" NVMe/SATA drive bays
- 2000W Redundant (2+2 or 3+1) 80+ Titanium Level high-efficiency power supplies
Key Applications
- Cloud Computing
- Web/Collocation Services
- Web Cache, CDN, Video Streaming
- Social Networking, Downloads
- Corporate - WINS, DNS, Print, Login

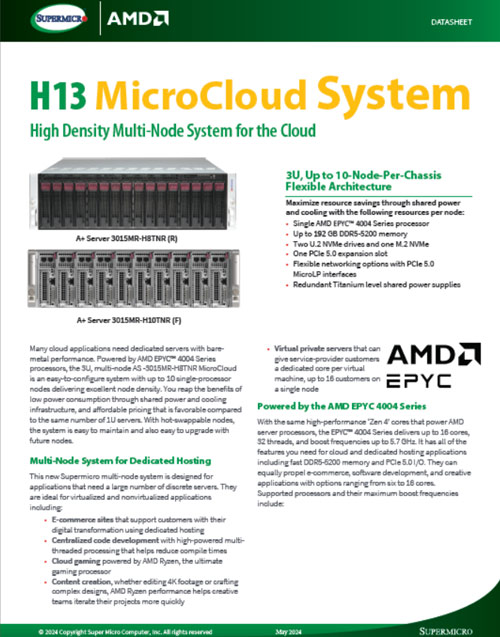

Datasheet
Product Specification
| Product SKUs | A+ Server AS -3015MR-H10TNR |
| Motherboard | Super H13SRE-F |
| Processor (per Node) | |
| CPU | Single Socket AM5 (LGA-1718) AMD EPYC™ 4004 Series Processor |
| Core Count | Up to 16C/32T; Up to 32MB Cache |
| Note | Supports 65W - 170W TDP CPUs (Air Cooled)* *Air Cooled CPUs with TDP over 120W only supported under specific conditions. |
| GPU (per Node) | |
| Max GPU Count | Up to 1 single-width GPU(s) |
| Supported GPU | NVIDIA PCIe: T4, L4, A2 |
| System Memory (per Node) | |
| Memory | Slot Count: 4 DIMM slots Max Memory (2DPC): Up to 192GB 5200MT/s ECC/non-ECC DDR5 UDIMM |
| On-Board Devices (per Node) | |
| NVMe | NVMe; (Native) |
| Chipset | System on Chip |
| Network Connectivity | No NIC option supported |
| Input / Output (per Node) | |
| USB | 2 USB 2.0 port(s) 1 Type-C port(s) (front) |
| Video | 1 port(s) |
| TPM | 1 TPM Onboard/port 80 |
| System BIOS | |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management | |
| Software | SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power configurations | Power-on mode for AC power recovery ACPI 6.0 Power Management |
| PC Health Monitoring | |
| Temperature | Monitoring for CPU and chassis environment |
| CPU | Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V |
| FAN | Fan speed control, Dual Cooling Zone |
| Chassis | |
| Form Factor | 3U Rackmount |
| Model | CSE-MC301-000FNDP |
| Dimensions and Weight | |
| Height | 5.16" (131 mm) |
| Width | 17.68" (449 mm) |
| Depth | 30.51" (775 mm) |
| Package | 12.6" (H) x 24.92" (W) x 44.29" (D) |
| Weight | N/A |
| Available Color | No Paint |
| Front Panel | |
| Buttons | Power On/Off |
| Expansion Slots (per Node) | |

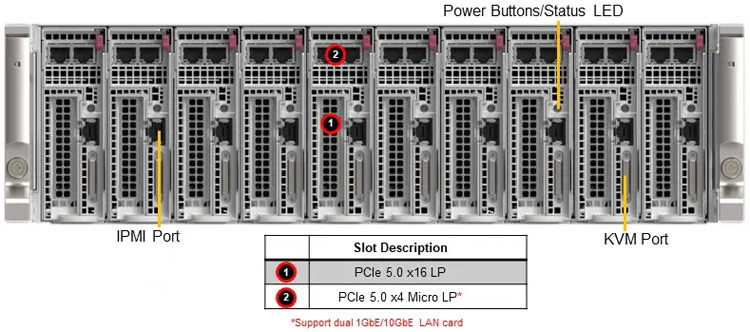

| PCI-Express (PCIe) Configuration | Default 1 PCIe 5.0 x16 LP slot(s) 1 PCIe 4.0 x8 MicroLP slot(s) |
| Drive Bays / Storage (per Node) | |
| Drive Bays Configuration | Default: Total 2 bay(s) 2 internal fixed 2.5" PCIe 3.0 x4 NVMe/SATA drive bay(s) |
| M.2 | 2 M.2 PCIe 4.0 x4 NVMe slot(s) (M-key 2280/22110) |
| System Cooling | |
| Fans | 5 Heavy Duty 8cm Fan(s) |
| Power Supply | 1x 2000W Redundant Titanium Level (96%) power supply |
| Operating Environment | |
| ROHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing) |
