SYS-531MC-H8TNR
Microcloud A+ Server supports Intel® Xeon® E-2400/Pentium®* Processor Single Socket LGA-1700
- Intel® Xeon® E-2400/Pentium®* Processor Single Socket LGA-1700 (Socket V0) supported, CPU TDP supports Up to 95W TDP *Pentium® G7400 and G7400T
- Intel® C266
- 8 set of Up to 128GB ECC UDIMM; DDR5 4400MHz, in 4 DIMM sockets
- 8 set of PCIe 5.0 x8 (in x16 slot) low profile slot and 8 set of PCIe 4.0 x8 Micro-LP slots (MicroLP upgradable)
- 8 set of 2x Front Hot-swappable 3.5" SATA3 HDD or Hybrid 2x 2.5" SAS/SATA3/NVMe U.2 drives w/ option kits
- 2200W Redundant Titanium Level high-efficiency power supplies
Datasheet
Product Specification
| Product SKUs | SuperServer SYS-531MC-H8TNR |
| Motherboard | Super X13SCD-F |
| Processor (per Node) | |
| CPU | Single LGA-1700 Intel® Xeon® E-2400/Pentium® G7400 and G6400T Processors |
| Note | Supports up to 95W TDP CPUs (Air Cooled) |
| GPU (per Node) | |
| Max GPU Count | Up to 1 single-width GPU(s) |
| System Memory (per Node) | |
| Memory | Slot Count: 4 DIMM slots Max Memory (2DPC): Up to 192GB 4400MT/s ECC DDR5 UDIMM |
| On-Board Devices (per Node) | |
| SATA | SATA (6Gbps) ; RAID 0/1/5/10 support |
| Chipset | Intel® C266 |
| Network Connectivity | No NIC option supported |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output (per Node) | |
| USB | 1 Type-C port(s) (front) 2 USB 2.0 Type-A port(s) |
| Video | 1 port(s) |
| System BIOS | |
| BIOS Type | AMI 128MB SPI Flash EEPROM |
| Management | |
| Software | Redfish API Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) SuperDoctor® 5 Super Diagnostics Offline KVM with dedicated LAN IPMI 2.0 |
| Power configurations | Power-on mode for AC power recovery ACPI 6.0 Power Management |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
| Temperature | Monitoring for CPU and chassis environment |
| CPU | Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V |
| FAN | Fan speed control, Dual Cooling Zone |
| Chassis | |
| Form Factor | 3U Rackmount |
| Model | CSE-938NH-R2K20BP2 |
| Dimensions and Weight | |
| Height | 5.21" (132 mm) |
| Width | 17.26" (438 mm) |
| Depth | 23.2" (589 mm) |
| Package | 11.65" (H) x 26.26" (W) x 34" (D) |
| Weight | Gross Weight: 88 lbs (39.92 kg) Net Weight: 62.2 lbs (28.21 kg) |
| Available Color | N/A |
| Front Panel | |

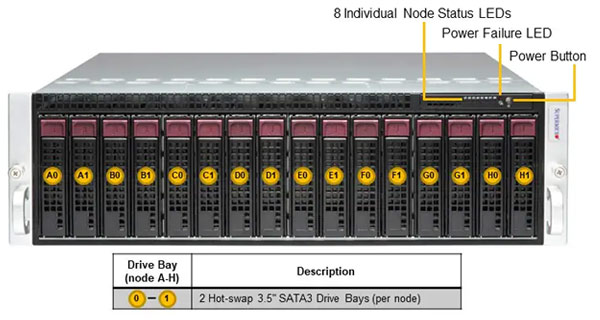

| LED | 8 Individual Node Status Indicators Power Failure |
| Buttons | Power On/Off |
| Expansion Slots (per Node) | |

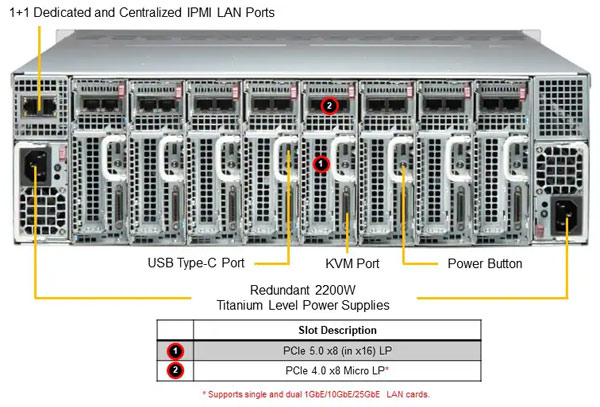

| PCI-Express (PCIe) Configuration | Default 1 PCIe 5.0 x8 (in x16) LP slot(s) 1 PCIe 4.0 x8 (in x8) MicroLP slot(s) |
| Drive Bays / Storage (per Node) | |
| Drive Bays Configuration | Default: Total 2 bay(s) 2 front hot-swap 3.5" NVMe/SAS/SATA drive bay(s) |
| M.2 | 2 M.2 NVMe/SATA slot(s) (M-key 2280/22110) |
| System Cooling | |
| Fans | 4 Heavy Duty 8cm Fan(s) |
| Power Supply | 2200W Redundant Titanium Level power supplies |
| Dimension (WxHxL) | 76 x 40 x 336 mm |
| +12V | Max: 100A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only) Max: 174.17A / Min: 0A (230Vac-240Vac) Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only) Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only) |
| 5V SB | Max: 1A / Min: 0A |
| AC Input | 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 2090W: 200-220Vac / 50-60Hz (for UL/cUL use only) 1980W: 220-230Vac / 50-60Hz 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only) 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only) |
| Output Type | Backplanes (gold finger) |
| Operating Environment | |
| ROHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 8% to 95% (non-condensing) |
