ASG-1115S-NE3X12R
1U front-loading all-flash storage server with 2x PCIe 5.0, 8x E3.S NVMe drive bays, 4x E3 CXL bays
- Single Socket SP5 AMD EPYC™ 9004 Series processors. Up to 300W TDP.
- Supports 24 DIMMs with 2DPC, up to 6TB memory capacity with 24 DIMMs of 256GB 3DS RDIMM/RDIMM DDR5 ECC memory
- Two PCIe 5.0 x16 slots & two AIOM connectors (OCP 3.0 SFF compliant)
- 4x E3.S CXL (16.8mm) + 8x hot-swap E3.S (7.5mm) NVMe drive bays
- Redundant Titanium 1600W Power Supplies
Key Applications:
- Software-defined Storage, In-Memory Computing, Data Intensive HPC
- Private & Hybrid Cloud, NVMe Over Fabrics Solution
Datasheet
Product Specification
| Product SKUs | A+ Server ASG-1115S-NE3X12R |
| Motherboard | Super H13SSF |
| Processor | |
| CPU | Single processor(s) |
| Note | Supports up to 760W TDP CPUs (Air Cooled) |
| System Memory | |
| Memory | Slot Count: Onboard Memory |
| On-Board Devices | |
| Chipset | AMD System on Chip |
| Network Connectivity | Via AIOM |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output | |
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) |
| USB | 2 USB 3.0 port(s) (rear) 2 USB 3.0 port(s) (front) |
| Video | 1 VGA port(s) |
| System BIOS | |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management | |
| Software | SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) SuperDoctor® 5 Super Diagnostics Offline TAS: Supermicro Thin-Agent Service (TAS) SAA(new!) IPMICFG SMCIPMITool IPMIView |
| Power configurations | Power-on mode for AC power recovery ACPI Power Management |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory 4+1 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Voltage | +1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT |
| Chassis | |
| Form Factor | 1U Rackmount |
| Model | CSE-126E32-R1K62P |
| chassisWeight | Net Weight: 48 lbs (21.8 kg) Gross Weight: 68.74 lbs (31.2 kg) |
| Dimensions and Weight | |
| Height | 1.7" (43.6 mm) |
| Width | 17.2" (438.4 mm) |
| Depth | 30.4" (773.25 mm) |
| Package | 7.87" (H) x 23.81" (W) x 40.55" (D) |
| Weight | Gross Weight: 68.74 lbs (31.2 kg) Net Weight: 48 lbs (21.8 kg) |
| Available Color | Silver |
| Front Panel | |
| LED | Network activity Power status SSD activity System information (overheat/UID) |
| Buttons | Power On/Off |
| Expansion Slots | |
| PCI-Express (PCIe) Configuration | Default 2 PCIe 5.0 x16 FHHL slot(s) 2 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible) |
| CXL Support | Up to 2 CXL 1.1 x16 devices |
| M.2 | 2 M.2 PCIe 3.0 x2 NVMe slot(s) (M-key 2280/22110) |
| Drive Bays / Storage | |

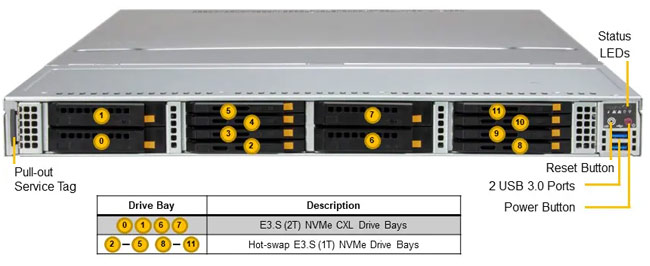

| Drive Bays Configuration | Default: Total 12 bay(s) 8 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bay(s) 4 front fixed E3.S 2T PCIe 5.0 x8 CXL drive bay(s) |
| M.2 | 2 M.2 NVMe slot(s) (M-key 2280/22110) |
| System Cooling | |
| Fans | 8 Heavy Duty 4cm Fan(s) |
| Power Supply | 1600W Redundant Titanium Level power supplies |
| Dimension (WxHxL) | 73.5 x 40 x 203 mm |
| +12V | Max: 83.3A / Min: 0A (100Vac-127Vac) Max: 133A / Min: 0A (200Vac-240Vac) |
| 12V SB | Max: 2.1A / Min: 0A |
| AC Input | 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac / 50-60Hz |
| Output Type | Backplanes (gold finger) |
| Operating Environment | |
| ROHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-condensing) Non-operating Relative Humidity: 8% to 95% (Non-condensing) |
