SSG-121E-NE3X12R

1U front-loading all-flash storage server with 2x PCIe 5.0, 8x E3.S NVMe drive bays, 4x E3 CXL bays

Anewtech-Systems-Storage-Server-Supermicro-Storage-SuperServer-SSG-121E-NE3X12R Supermicro Singapore Supermicro Servers
  • Dual Socket E (LGA-4677) 5th/4th Generation Intel® Xeon® Scalable processors. Up to 350W TDP.
  • Supports 32 DIMMs with 2DPC, up to 8TB memory capacity with 32 DIMMs of 256GB 3DS RDIMM DDR5-5600 ECC memory
  • Two PCIe 5.0 x16 slots & two AIOM connectors (OCP 3.0 SFF compliant)
  • 8x hot-swap E3.S (7.5mm) NVMe drive bays, 4x E3 CXL bays
  • Redundant Titanium 1600W Power Supplies

Key Applications

  • Software-defined Storage, In-Memory Computing
  • Data Intensive HPC, Private & Hybrid Cloud, NVMe Over Fabrics Solution
Product Specification
Anewtech-Systems-Storage-Server-Supermicro-Storage-Server-SSG-121E-NE3X12R-1U-Storage-SuperServer
Anewtech-Systems-Storage-Server-Supermicro-Storage-SuperServer-SSG-121E-NE3X12R-Supermicro
Anewtech-Systems Supermicro Singapore Supermicro Servers
Anewtech-Systems Supermicro Singapore Supermicro Servers Supermicro-Storage-SuperServer-SSG-121E-NE3X12R
Product SKUsSuperServer SSG-121E-NE3X12R
MotherboardSuper X13DSF-A
Processor
CPUDual processor(s)
NoteSupports up to 350W TDP CPUs (Air Cooled)
System Memory
MemorySlot Count: 32 DIMM slots
On-Board Devices
ChipsetIntel® C741
Network ConnectivityVia AIOM

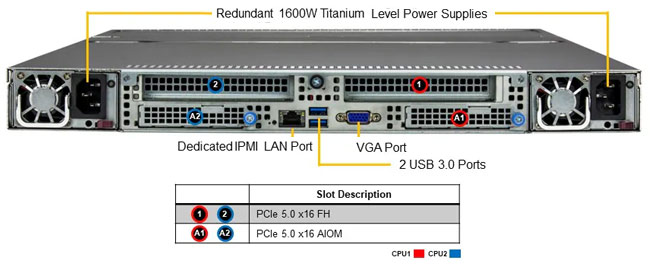

Input / Output
LAN1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB2 USB 3.0 port(s) (rear)
2 USB 3.0 port(s) (front)
Video1 VGA port(s)
System BIOS
BIOS TypeAMI 32MB SPI Flash EEPROM
Management
SoftwareSuperCloud Composer
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
SuperDoctor® 5
Super Diagnostics Offline
Power configurationsPower-on mode for AC power recovery
ACPI Power Management
Security
HardwareTrusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
FeaturesCryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
PC Health Monitoring
CPUMonitors for CPU Cores, Chipset Voltages, Memory
7 Phase-switching voltage regulator
FANFans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
TemperatureMonitoring for CPU and chassis environment
Thermal Control for fan connectors
Chassis
Form Factor1U Rackmount
ModelCSE-126E32-R1K62P
chassisWeightNet Weight: 48 lbs (21.8 kg)
Gross Weight: 68.74 lbs (31.2 kg)
Dimensions and Weight
Height1.7" (43.6 mm)
Width17.2" (438.4 mm)
Depth30.4" (773.25 mm)
Package7.87" (H) x 23.81" (W) x 40.55" (D)
WeightGross Weight: 68.74 lbs (31.2 kg)
Net Weight: 48 lbs (21.8 kg)
Available ColorSilver
Front Panel
LEDNetwork activity
Power status
SSD activity
System information (overheat/UID)
ButtonsPower On/Off
Expansion Slots
PCI-Express (PCIe) ConfigurationDefault
2 PCIe 5.0 x16 FHHL slot(s)
2 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
Drive Bays / Storage
Drive Bays ConfigurationDefault: Total 12 bay(s)
8 front hot-swap E3.S 1T NVMe drive bay(s)
4 front fixed E3.S 2T CXL drive bay(s)
M.22 M.2 NVMe/SATA slot(s) (M-key 2280/22110)
System Cooling
Fans8 Heavy Duty 4cm Fan(s)
Power Supply1600W Redundant Titanium Level power supplies
Dimension (WxHxL)73.5 x 40 x 203 mm
+12VMax: 83.3A / Min: 0A (100Vac-127Vac)
Max: 133A / Min: 0A (200Vac-240Vac)
12V SBMax: 2.1A / Min: 0A
AC Input1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac / 50-60Hz
Output TypeBackplanes (gold finger)
Operating Environment
ROHSRoHS Compliant
Environmental Spec.Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (Non-condensing)
Non-operating Relative Humidity: 8% to 95% (Non-condensing)
