SSG-110P-NTR10
1U UP front-loading storage server with 10 hot-swap 2.5" NVMe bays and PCIe 4.0
- Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.
- 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM
- 1 PCI-E 4.0 x16 (FHHL) slot
- Intel® Ethernet Controller X550 2x 10GbE RJ45
- 10x Hot-swap 2.5'' All NVMe tool-less drive bays; Onboard 2x NVMe/SATA M.2
- Redundant Platinum 860W Power Supply
Key Applications
- Virtualization
- Cloud Computing
- All Flash Storage
- CDN Optimized
Datasheet
Product Specification
| Product SKU | |
| SSG-110P-NTR10 | SuperServer SSG-110P-NTR10 (Black) |
| Motherboard | Super X12SPO-NTF |
| Processor/Cache | |
| CPU | Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Support CPU TDP 270W |
| System Memory | |
| Memory | Memory Capacity: 8 DIMM slots UP to 2TB: 8x 256 GB DRAM UP to 3TB: 4x 256 GB DRAM and 4x 512 GB PMem Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM;LRDIMM Intel® Optane™ persistent memory 200 series |
| Memory Voltage | 1.25 V |
| Error Detection | Yes |
| On-Board Devices | |
| NVMe | NVMe Gen 4 via MB onboard controller; RAID 0, 1, 5, 10 support (with additional VROC module) |
| Chipset | Intel® C621A |
| Network Connectivity | 2x 10GbE BaseT with Intel® X550 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| BMC | ASPEED AST2600 BMC |
| Input / Output | |
| LAN | 1 RJ45 Dedicated IPMI LAN port 2 RJ45 10GBase-T LAN ports |
| USB | 5 USB 3.2 Gen 1 port(s) (2 front; 2 rear; 1 Type A) 4 USB 2 port(s) (2 headers; 2 rear) |
| Video | 1 VGA port(s) |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) |
| DOM | 2 Super DOM (Disk on Module) port with built-in power |
| System BIOS | |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management | |
| Software | IPMI2.0 Redfish API SSM Intel® Node Manager SPM KVM with dedicated LAN SUM NMI |
| Power Configurations | ACPI/APM Power Management |
| PC Health Monitoring | |
| CPU | 7+1 Phase-switching voltage regulator module (VRM) Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
| Form Factor | 1U Rackmount |
| Model | CSE-116TS-R860CBP-N10 |
| Dimensions and Weight | |
| Height | 1.7" (43mm) |
| Width | 17.2" (437mm) |
| Depth | 23.5" (597mm) |
| Package | 8" (H) x 24" (W) x 32" (D) |
| Weight | Net Weight: 15.5 lbs (7.03 kg) Gross Weight: 27 lbs (12.25 kg) |
| Available Color | Black |

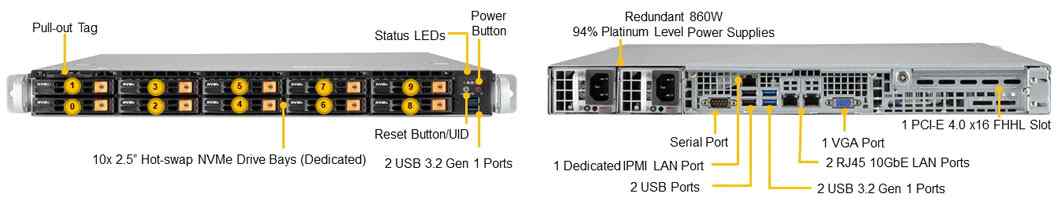

| Front Panel | |
| Buttons | Power On/Off UID button |
| LEDs | Device Activity LAN 1 Activity LAN 2 Activity Power status System information |
| Expansion Slots | |
| PCI-Express (PCI-E) | Slot 6: PCI-E 4.0 x16 FHHL |
| Drive Bays / Storage | |
| Hot-swap | 10x 2.5" hot-swap NVMe drive bays |
| M.2 | 2x PCI-E 3.0 x4 and SATA Form Factor: 2280, 22110 Key: M-key |
| System Cooling | |
| Fans | 6x (4cm x4cm x5.6cm) heavy duty fans with optimal fan speed control |
| Air Shroud | 1 Air Shroud(s) |
| Power Supply | 800W/860W 1U redundant power supply |
| Dimension (W x H x L) | 54.5 x 40.25 x 322 mm |
| AC Input | 100-127Vac / 66.6A Max / 50-60Hz 200-240Vac / 71.6A Max / 50-60Hz |
| DC Output | 200-240Vdc CCC only/62A Max |
| Output Type | Backplanes (gold finger) |
| Certification | Platinum Level |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
