SSG-640P-E1CR36L

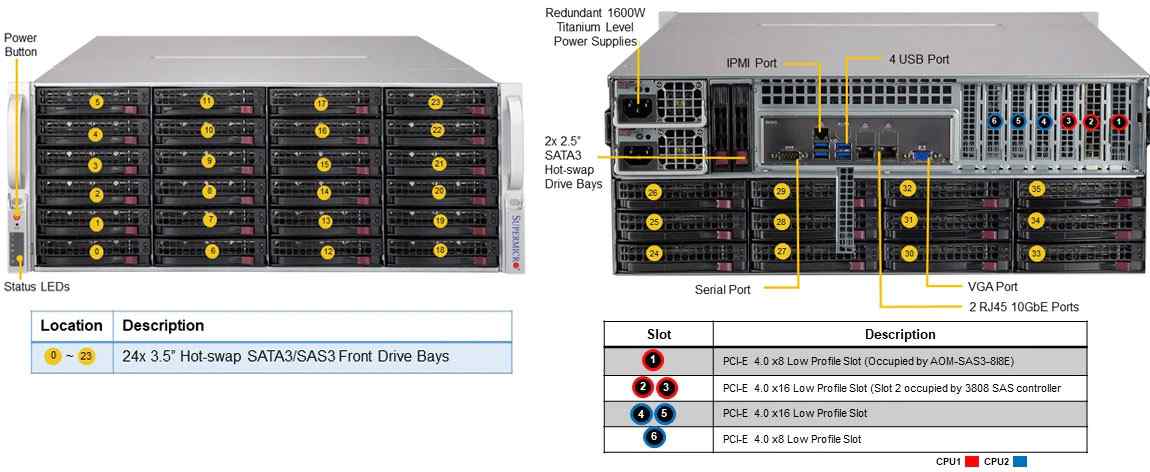

4U front/rear-loading storage server with 36 hot-swap 3.5" SAS/SATA bays and PCIe 4.0

Anewtech Systems Supermicro Servers Supermicro Singapore  SuperServer SSG-640P-E1CR36L Industrial Storage Server Supermicro SSG-640P-E1CR36L

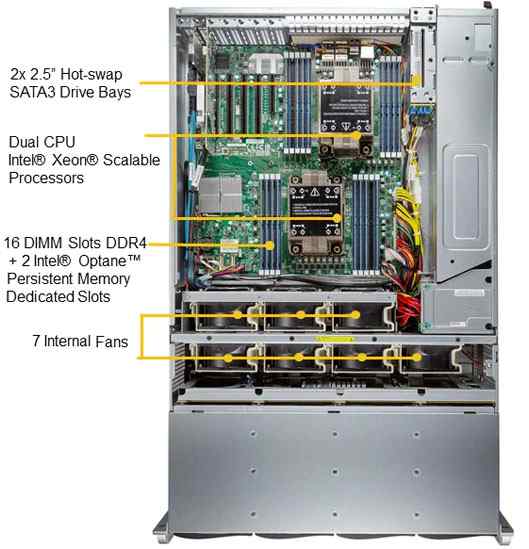

  • Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 72 Cores Per Node
  • 16 ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel® Optane™ Persistent Memory Dedicated Slots
  • 2x 10Gbe
  • Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node
  • 36 3.5"/2.5" Hot-swap SAS3/SATA3 drives (4 Hybrid NVMe), 2x Rear SATA Slots, 1x SATA/NVMe M.2 (form factor: 2280 and 22110)
  • 7x 8cm hot-swap counter-rotate redundant PWM cooling fans
  • 1200W Redundant Power Supplies Titanium Level (96%)
  • HBA Controller support via Broadcom® 3808
Product Specification
Anewtech Systems Supermicro Servers Supermicro Singapore  Supermicro Storage Server SuperServer-SSG-640P-E1CR36L Supermicro Server SingaporeAnewtech storage-server Supermicro Singapore supermicro  SuperServer SSG-640P-E1CR36L
Product SKU
SSG-640P-E1CR36LSuperServer SSG-640P-E1CR36L
MotherboardSuper X12DPi-NT6
Processor/Cache
CPUDual Socket P+ (LG-4189)
3rd Gen Intel® Xeon® Scalable processors
Support CPU TDP 120-270W
System Memory
MemoryMemory Capacity: 16 DIMM slots
UP to 18TB: PMem
UP to 4TB: 16x 256 GB DRAM
Memory Type: 3200MHz ECC DDR4 RDIMM;LRDIMM;DCPMM
Intel® Optane™ persistent memory 200 series
Memory Voltage1.2 V
Error DetectionECC
On-Board Devices
ChipsetIntel® C621A
Network Connectivity2x 10GbE BaseT with Intel® X550
IPMISupport for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
BMCASPEED AST2600 BMC
Input / Output
LAN1 RJ45 Dedicated IPMI LAN port
USB4 USB 3.0 port(s) (4 Rear_USB)
Video1 VGA port(s)
Serial Port1 COM Port(s) (1 rear)
DOM2 Super DOM (Disk on Module) port
System BIOS
BIOS TypeAMI 128MB SPI Flash EEPROM
Management
SoftwareIPMI 2.0
SUM
NMI
Watch Dog
SuperDoctor® 5
Power ConfigurationsACPI Power Management
Power-on mode for AC power recovery
PC Health Monitoring
CPU4+1 Phase-switching voltage regulator
Monitors for CPU Cores, Chipset Voltages, Memory
FANFans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
TemperatureMonitoring for CPU and chassis environment
Thermal Control for fan connectors
Chassis
Form Factor4U Rackmount
ModelCSE-847BE1C4-R1K23LPB
Dimensions and Weight
Height7"
Width17.2"
Depth27.5"
Package15" (H) x 27" (W) x 39" (D)
WeightNet Weight: 65.5 lbs (29.7 kg)
Gross Weight: 102.5 lbs (46.4 kg)
Available ColorSilver
Front Panel
ButtonsPower On/Off
LEDsHDD activity
Network activity
Power status
System information (overheat/UID)
Expansion Slots
PCI-Express (PCI-E)Slot 1: PCI-E 4.0 x8 LP
Slot 2: PCI-E 4.0 x16 LP
Slot 3: PCI-E 4.0 x16 LP
Slot 4: PCI-E 4.0 x16 LP
Slot 5: PCI-E 4.0 x16 LP
Slot 6: PCI-E 4.0 x8 LP
Drive Bays / Storage
Hot-swap36x 3.5" hot-swap NVMe/SATA/SAS drive bays (4x 3.5" NVMe hybrid)
M.21 M.2 NVMe
System Cooling
Fans7 Heavy Duty 8cm Fan(s)
Power SupplyAC 1200W, Titanium Level, Redundancy,PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH
Dimension (W x H x L)76 x 40 x 336 mm
Output TypeGold Finger
Operating Environment
RoHSRoHS Compliant
Environmental Spec.Operating Temperature: 10°C ~ 35°C
Non-operating Temperature: -40°C to 60°C
Operating Relative Humidity: 8% to 90% (Non-Condensing)
Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
