SSG-521E-E1CR24H
2U storage server. 24 hot-swap 3.5" SAS/SATA bays (SAS hardware RAID), PCIe 5.0
- Single Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors. Up to 300W TDP.
- 16 ECC DDR5-4800: LRDIMM/RDIMM
- Two Dedicated PCIe 5.0 x16 AIOM slots (OCP 3.0 SFF compliant)
- Up to 6x PCIe 5.0 Slots (Slot #2 populated by 3908 controller by default)
- Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node
- 24 3.5" Hot-swap SAS3/SATA3 drives, 2x Rear SATA Slots, 4x Optional Rear NVMe Slots, 2x NVMe/SATA M.2 (form factor: 2280)
- 4x 8cm hot-swap counter-rotate redundant PWM cooling fans
- 1600W Redundant Power Supplies Titanium Level (96%)
- HW RAID support via Broadcom® 3908
Datasheet
Product Specification
| Product SKUs | SuperServer SSG-521E-E1CR24H (Silver) |
| Motherboard | Super X13SEDW-F |
| Processor | |
| CPU | Single processor(s) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors |
| Note | Supports 120W - 300W TDP CPUs (Air Cooled) |
| System Memory | |
| Memory | Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1 V |
| On-Board Devices | |
| Chipset | Intel® C741 |
| Network Connectivity | Via AIOM |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output | |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| USB | 2 USB 3.0 port(s) (2 Rear_USB) |
| Video | 1 VGA port(s) |
| Serial Port | 1 COM Port(s) (1 rear) |
| DOM | 2 Super DOM (Disk on Module) port |
| System BIOS | |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
| CPU | 7 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
| Form Factor | 2U Rackmount |
| Model | CSE-826S3TS-R1K62P1 |
| Dimensions and Weight | |
| Height | 3.5" |
| Width | 17.2" |
| Depth | 34" |
| Package | 12" (H) x 29" (W) x 52" (D) |
| Weight | Net Weight: 52 lbs (23.59 kg) Gross Weight: 74.5 lbs (33.79 kg) |
| Available Color | Silver |
| Front Panel | |
| Buttons | Power On/Off |
| LEDs | Network activity Power status SSD activity System information (overheat/UID) |
| Expansion Slots | |

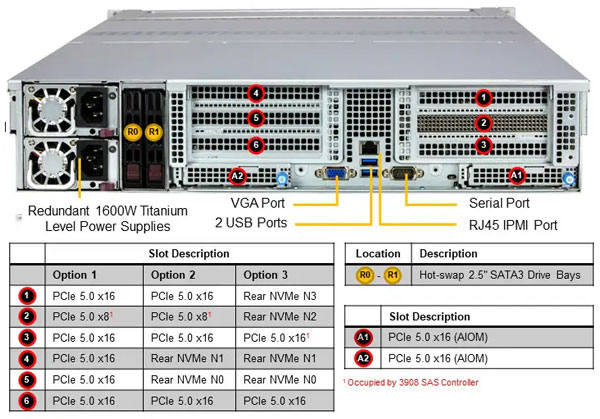

| PCI-Express (PCIe) | 4 PCIe 5.0 x8 FH slot(s) 2 PCIe 5.0 x16 FH slot(s) 2 PCIe 5.0 x16 AIOM slot(s) |
| Note | PCIe slot 2 is occupied by the Storage Controller (default configuration). If NVMe Kit exists, PCIe Slot 3 is occupied by Storage Controller instead. |
| Drive Bays / Storage | |
| Hot-swap | 24x 3.5" hot-swap SATA3/SAS3 drive bays (2x 2.5" hot-swap SATA3 rear drive bays) |
| M.2 | 2 M.2 NVMe OR 2 M.2 SATA3 M-Key, 2280 and 22110 |
| System Cooling | |
| Fans | 4 Heavy Duty 8cm Fan(s) |
| Power Supply | 1600W Redundant Titanium Level power supplies |
| Dimension (W x H x L) | 73.5 x 40 x 203 mm |
| AC Input | 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac / 50-60Hz |
| +12V | Max: 83.3A / Min: 0A (100Vac-127Vac) Max: 133A / Min: 0A (200Vac-240Vac) |
| 12V SB | Max: 2.1A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Operating Environment | |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing) |
Large-Scale Storage Building Blocks
Cost-Effective Systems for Large-Scale Object Storage
As the amount of data produced by today’s AI, HPC and Cloud applications continues to increase, cost-effective scale-out storage is essential for any organization’s storage strategy.
Supermicro X13 designs maximize the efficiency and cost effectiveness of large-scale data storage with intelligent, highdensity, economically optimized designs.
2U 16-Bay Front Loading/ Internal
Up to 12 hot-swap SAS/SATA (6 optional NVMe),
Up to 4 internal SAS/SATA
5th Gen Intel® Xeon® Scalable Processors
- Up to 64 cores and 385W TDP per CPU
- Support for Intel Xeon® Max Series CPUs with High Bandwidth Memory
- Support for PCIe 5.0, DDR5 and CXL 1.1
- Built on the Intel® 7 process
- Built in accelerators:
- Intel AMX
- Intel® Dynamic Load Balancer
- Intel® QuickAssist
- Technology (QAT)
- Intel vRAN Boost
Delivering Solutions Optimized for Tomorrow’s Data Center Workloads
Complete Rack-Scale Solutions
- Full design, integration, validation and testing services for rack-scale and multi-rack clusters
- Complete rack-scale liquid cooling solutions developed in house
Performance and Energy Optimized
- Enhanced thermal capacity to support the highest performing CPUs and GPUs
- Optimized to run in high-temperature data center environments up to 40°C
Improved Security and Manageability
- Industry-standard compliance for hardware and silicon Root of Trust (RoT)
- Cryptographical attestation of components throughout the entire supply chain
Supports Open Industry Standards
- The latest industry technologies including PCIe 5.0, DDR5, and CXL
- Open Compute Project (OCP) standards including OCP 3.0, OAM, ORV2 and OSF as well as Open BMC
