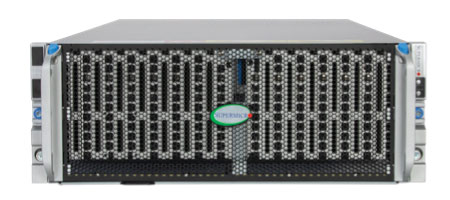

SSG-542B-E1CR90
4U top-loading storage server with 90 hot-swap 3.5" SAS/SATA bays and PCIe 5.0
- Single Socket E2 (LGA-4710) Intel® Xeon® 6700 series processors with E-cores up to 350W with air cooling
- Up to 16 DIMMs supporting up to 2TB DDR5-6400 in 1DPC or 2TB DDR5-5200 in 2DPC
- Up to 1 PCIe 5.0 x8 HHHL + 3 PCIe 5.0 x16 HHHL slots
- Up to 90 top-loading hot-swap 3.5"/2.5" SAS/SATA + 4 rear hot-swap 2.5" NVMe + 2 internal fixed 2.5" NVMe drive bays
- 2 Redundant 2600W Titanium Level power supplies
- 4U Rackmount chassis
Key Applications
- Big Data & Analytics, Data Lake
- HPC and AI/ML Workloads
- Telco & Cloud Service Providers
- Financial Services & Healthcare Image Archives
- Content Repositories
- Government Data Protection
Datasheet
Product Specification
| Product SKU | SuperServer SSG-542B-E1CR90 |
| Motherboard | Super X14SBSC |
| Processor | |
| CPU | Single Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores |
| Core Count | Up to 144C/144T; Up to 108MB Cache |
| Note | Supports up to 350W TDP CPUs (Air Cooled) |
| System Memory | |
| Memory | Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| NVMe | NVMe; RAID 0/1 support |
| Chipset | System on Chip |
| Network Connectivity | No NIC option supported |
| Input / Output | |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 ports(rear) |
| Video | 1 VGA port |
| System BIOS | |
| BIOS Type | AMI 64MB SPI Flash |
| Management | |
| Software | SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power configurations | Power-on mode for AC power recovery ACPI Power Management |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
| Form Factor | 4U Rackmount |
| Model | CSE-947HTS-R2K63P |
| Dimensions and Weight | |
| Height | 6.96" (177 mm) |
| Width | 17.6" (447 mm) |
| Depth | 43.3" (1099 mm) |
| Package | N/A |
| Weight | Gross Weight: 225 lbs (102.06 kg) Net Weight: 130 lbs (58.97 kg) |
| Palletized Packing (W x H x L) | 35.82" (910 mm) x 29.92" (755 mm) x 53.15" (1345 mm) |
| Available Color | N/A |
| Expansion Slots | |
| PCI-Express (PCIe) Configuration | Default 1 PCIe 5.0 x8 (in x8) HHHL slot 3 PCIe 5.0 x16 (in x16) HHHL slots |
| M.2 | 2 M.2 PCIe 4.0 x2 NVMe slots (M-key 2280/22110) |
| Drive Bays / Storage | |
| Drive Bays Configuration | Default: Total 90 bays 90 top-loading hot-swap 3.5"/2.5" SAS/SATA drive bays Option A: Total 4 bays 4 rear hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bays Option B: Total 2 bays 2 internal fixed 2.5" PCIe 5.0 x4 NVMe* drive bays (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details) |
| M.2 | 2 M.2 PCIe 4.0 x2 NVMe slots (M-key 2280/22110) |
| System Cooling | |
| Fans | 1 Counter Rotating 6cm Fan(s) 6 Heavy Duty 8cm Fan(s) |
| Power Supply | |
| 2x 2600W | 2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
