SYS-220BT-HNC8R
2U BigTwin Server. 6x 2.5" NVMe/SAS/SATA drives per node

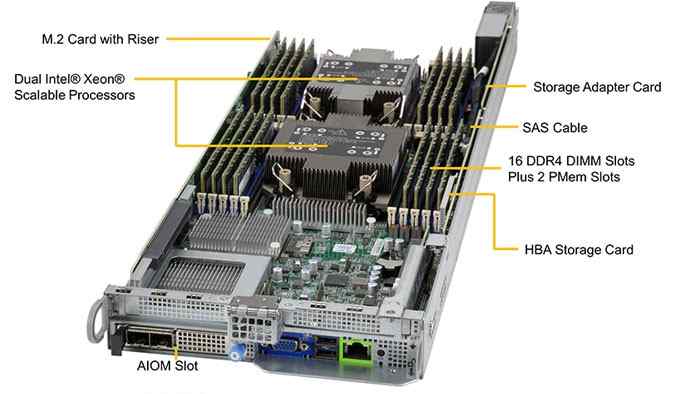

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
- Socket P+ (LGA 4189) support 3rd Gen Intel® Xeon® Scalable processors
- Intel® C621A
- 20 DIMM Slots (16 DIMM Slots + 4 Intel® Optane™ Persistent Memory Slots)
Up to 6TB DDR4-3200 with Intel® Optane™ Persistent Memory 200 Series
Up to 4TB ECC DDR4-3200 with RDIMM - 1 Internal PCI-E 3.0 x8 for M.2 NVMe/SATA support onboard
Optional M.2 NVMe Boot Controller via AOC-SMG3-2M2-B
2 PCI-E 4.0 x16 (LP) slot - Network connectivity via AIOM (OCP 3.0 compliant)
- 6 Hot-swap 2.5" drive bays, 6 PCI-E 4.0 NVMe/SAS/SATA 2.5", 2 M.2 NVMe OR 2 M.2 SATA3
- Shared cooling design with 4 heavy duty fans with optimal fan speed control
4 cooling fans per 2U enclosure, 16.5K RPM, 4 air shrouds - 2600W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
Datasheet
Product Specification
| Product SKU | |
| SYS-220BT-HNC8R | SuperServer SYS-220BT-HNC8R |
| Motherboard | Super X12DPT-B6 |
| Processor/Cache (per Node) | |
| CPU | Dual Socket P+ (LGA 4189) 3rd Gen Intel® Xeon® Scalable processors Support CPU TDP 205W * |
| Cores | 36C/72T |
| Note | *Certain CPUs with high TDP may be supported only under specific conditions. Please contact us for additional information about specialized system optimization |
| System Memory (per Node) | |
| Memory | Memory Capacity: 16 DIMM slots (16 DRAM + 4 PMem) UP to 4TB: 16x 256 GB DRAM UP to 6TB: 8x 256 GB DRAM and 8x 512 GB PMem Memory Type: 3200MHz ECC DDR4 RDIMM Intel® Optane™ persistent memory 200 series |
| On-Board Devices (per Node) | |
| SAS | SAS3 (12Gbps) via Broadcom® 3808 (IT mode) |
| Chipset | Intel® C621A |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| BMC | ASPEED AST2600 BMC |
| Input / Output (per Node) | |
| LAN | 1 RJ45 Dedicated BMC LAN port |
| USB | 2 USB 3.0 port(s) (2 rear) |
| Video | 1 VGA port(s) |
| Others | M.2 for boot drive only |
| System BIOS | |
| BIOS Type | AMI 32MB Flash ROM |
| Management | |
| Software | SuperCloud Composer SSM Intel® Node Manager SPM KVM with dedicated LAN IPMI 2.0 SUM Watch Dog SuperDoctor® 5 |
| Power Configurations | ACPI / APM Power Management |
| PC Health Monitoring | |
| CPU | 7+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory. |
| FAN | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment |
| Chassis | |
| Form Factor | 2U Rackmount |
| Model | CSE-217BQ-000NP |
| Dimensions and Weight | |
| Height | 3.47" (88mm) |
| Width | 17.68" (449mm) |
| Depth | 28.75" (730mm) |
| Package | 9.76" (H) x 24.65" (W) x 45.28" (D) |
| Weight | Net Weight: 54.5 lbs (24.7 kg) Gross Weight: 85 lbs (38.6 kg) |
| Available Color | Black |
| Front Panel | |
| Buttons | Power On/Off button UID button |
| LEDs | HDD activity LED Network activity LEDs Power status LED Universal Information (UID) LED |
| Expansion Slots (per Node) | |
| PCI-Express (PCI-E) | Slot 1: PCI-E 4.0 x16 LP Slot 2: PCI-E 4.0 x16 LP Internal Slot: M.2 |
| Drive Bays / Storage (per Node) | |
| Hot-swap | 6x 2.5" hot-swap NVMe/SATA/SAS drive bays (6x 2.5" NVMe hybrid) |
| System Cooling | |
| Fans | 4x 16.5K RPM Heavy Duty 8cm Fan(s) |
| Power Supply | 1U 2600W Redundant Titanium PWS, 45(W) X 40(H) X 480(L) |
| Total Output Power | 2600W: 208-240Vac 2600W: 220-240Vdc for CQC only |
| Dimension (W x H x L) | 45 x 40 x 480 mm |
| AC Input | 208-240Vac / 12.5A-15A / 50-60Hz 220-240Vdc / 12.5A-13.5A (CQC only) |
| +12V | Max: 216.6A / Min: 0A |
| 12V SB | Max: 4.5A / Min: 0A |
| Operating Environment | |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing) |
