SYS-221BT-HNR
2U 4-Node BigTwin server. 6 hot-swap 2.5" NVMe drives per node
Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
- Socket E (LGA 4677) support 5th/4th Gen Intel® Xeon® Scalable processors
- Intel® C741
- 16 DIMM Slots supporting up to 4TB of memory; ECC RDIMMs up to DDR5-5600
- 2 PCIe 5.0 x16 (LP) slot;
- Tool-less support
- Internal PCIe 4.0 for 2 x4 M.2 NVMe support onboard
- Optional M.2 (22x80) HW RAID1 NVMe Boot Controller via SCC-A2NM2241G3-B1
- Network connectivity via AIOM (OCP 3.0 compliant)
- 6 hot-swap PCIe 5.0 NVMe 2.5" drives; All Flash NVMe
- Liquid Cooling Support
- 4 cooling fans per 2U enclosure, 16K RPM; Shared Cooling Design, Counter-Rotating
- 3000W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
Key Applications
- All-Flash NVMe Hyperconverged Infrastructure
- Container-as-a-Service; Application Accelerator
- High-Performance File System
- Diskless HPC Clusters
Datasheet
Product Specification
| Product SKUs | SuperServer SYS-221BT-HNR |
| Motherboard | Super X13DET-B |
| Processor (per Node) | |
| CPU | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM) |
| Core Count | Up to 64C/128T; Up to 320MB Cache per CPU |
| Note | Supports up to 205W TDP CPUs (Air Cooled)* Supports up to 350W TDP CPUs (Liquid Cooled) *Air Cooled CPUs with TDP over 205W only supported under specific conditions. Contact a Supermicro representative for details. |
| System Memory (per Node) | |
| Memory | Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM |
| On-Board Devices (per Node) | |
| Chipset | Intel® C741 |
| Network Connectivity | Via AIOM |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output (per Node) | |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port(s) |
| USB | 2 USB 3.0 Gen2 Type-A port(s) (Rear) |
| Video | 1 VGA port(s) |
| System BIOS | |
| BIOS Type | AMI 32MB Flash ROM |
| Management | |
| Software | SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) SuperDoctor® 5 Super Diagnostics Offline TAS: Supermicro Thin-Agent Service (TAS) SAA(new!) IPMICFG SMCIPMITool IPMIView |
| Power configurations | ACPI / APM Power Management |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory. 8+4 Phase-switching voltage regulator |
| Chassis | |
| Form Factor | 2U Rackmount |
| Model | CSE-217BQ2-R3K04P |
| chassisWeight | Net Weight: 66.1 lbs (30 kg) Gross Weight: 96.6 lbs (43.8 kg) |
| Dimensions and Weight | |
| Height | 3.47" (88 mm) |
| Width | 17.68" (449 mm) |
| Depth | 28.75" (730 mm) |
| Package | 9.76" (H) x 24.65" (W) x 45.28" (D) |
| Weight | Gross Weight: 96.6 lbs (43.8 kg) Net Weight: 66.1 lbs (30 kg) |
| Available Color | Black front & silver body |
| Front Panel | |
| LED | HDD activity LED Network activity LEDs Power status LED Universal Information (UID) LED |
| Buttons | Power On/Off button UID button |
| Expansion Slots (per Node) | |
| PCI-Express (PCIe) Configuration | Default 2 PCIe 5.0 x16 LP slot(s) |
| Drive Bays / Storage (per Node) | |

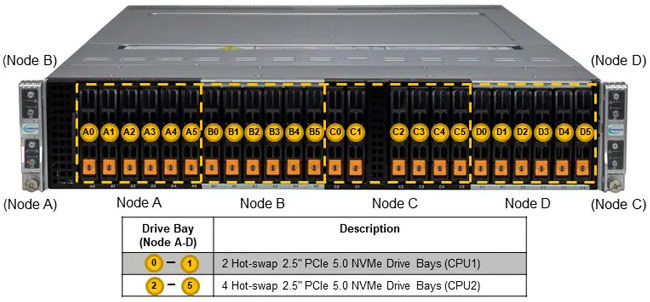

| Drive Bays Configuration | Default: Total 6 bay(s) 6 front hot-swap 2.5" PCIe 5.0 NVMe drive bay(s) |
| M.2 | 2 M.2 PCIe 4.0 x4 NVMe slot(s) (M-key 22110(default); VROC required for RAID) |
| System Cooling | |
| Fans | 4x 16K RPM Counter Rotating 8cm Fan(s) |
| Liquid Cooling | Direct to Chip (D2C) Cold Plate (optional) |
| Power Supply | 3000W Redundant Titanium Level power supplies |
| Dimension (WxHxL) | 45 x 40 x 480 mm |
| +12V | Max: 116A / Min: 0A (100Vac-127Vac) Max: 240A / Min: 0A (200Vac-207Vac) Max: 250A / Min: 0A (208Vac-240Vac) Max: 250A / Min: 0A (240Vdc-240Vdc) (for CQC safety rating only) |
| 12V SB | Max: 4.5A / Min: 0A |
| AC Input | 1400W: 100-127Vac / 50-60Hz 2880W: 200-207Vac / 50-60Hz 3000W: 208-240Vac / 50-60Hz 3000W: 240-240Vdc / 50-60Hz (for CQC only) |
| Output Type | Backplanes (connector) |
| Operating Environment | |
| ROHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing) |
