Digi IX40
5G edge computing industrial IoT cellular router solution, purpose-built for Industry 4.0
- Global 5G and LTE support and certification on major carrier networks around the world
- Digi Containers to enable powerful, cost-efficient applications
- Integrated edge computing capabilities for hosting containerized applications and custom solutions
- Ethernet, SFP, serial, I/O and Modbus bridging
- Extremely resilient cellular connection through Digi’s patented SureLink®, VRRP+ protocol and dual SIM slots
- GNSS receiver supporting GPS, GLONASS, BeiDou and Galileo
- License-free enterprise software: VPN, firewall, logging and authentication
- Digi Remote Manager® platform for easy setup, mass configuration and management
- Rugged enclosure with options for DIN rail or shelf mounting
- Digi WAN Bonding for 5G/LTE WAN aggregation and immediate failover
| SPECIFICATIONS | Digi IX40 5G |
| WIRELESS INTERFACES | |
| CELLULAR / WWAN | |
| IX40-05: 5G NSA, 5G SA, 4G LTE-ADVANCED PRO CAT 19 | 5G NR bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79; 4G LTE-Advanced Pro bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14 FirstNet®, B17, B20, B25, B26, B28, B29, B30, B32, B38, B40, B41, B42, B43, B46, B48, B66, B71; 3G bands: B1, B2, B3, B4, B5, B6, B8, B19 |
| IX40-04: 4G LTE-ADVANCED PRO CAT 12, 3G HSPA+ | 4G LTE-Advanced Pro bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14 FirstNet®, B17, B18, B19, B20, B25, B26, B28, B29, B30, B38, B39, B40, B41, B42, B43, B48, B66, B71; 3G bands: B1, B2, B4, B5, B6, B8, B9, B19 |
| CONNECTORS | (2) or (4) 50 Ω SMA; center pin: female |
| SIM SLOTS | (2) Nano-SIM (4FF) holders |
| SIM SECURITY | SIM slot cover plate included |
| GNSS | |
| TECHNOLOGY | GPS Gen 9 with band L1 LNA for passive antenna use |
| ANTENNA | Upper L-band: GPS L1; Glonass G1; Beidou B1; Galileo E1 IX40-04: supports passive GNSS antennas rated at 1.5 to 3 dBi only IX40-05: supports passive GNSS antennas rated at 1.5 to 3 dBi or active antennas with 7.5 to 26 dB gain |
| PROTOCOL | NMEA 4.11 and TAIP |
| CONNECTOR | (1) 50 Ω SMA; center pin: female |
| WIRED INTERFACES | |
| ETHERNET | |
| PORTS / CONNECTOR | (4) RJ-45; 10/100/1000 Mbps Base-T (auto-sensing); IEEE 802.3; configurable as WAN or LAN |
| I/O | |
| PORTS / CONNECTOR | (2) Digital input/outputs; (2) analog inputs (0 - 10 V; 4 - 20 mA; 12-bit resolution) |
| SFP | |
| PORTS / CONNECTOR | (2) 1 Gb capable SFP sockets |
| SERIAL | |
| PORTS / CONNECTOR | (1) RS-232/422/485; DB-9 male (DTE) |
| SOFTWARE & MANAGEMENT | |
| REMOTE MANAGEMENT | Digi Remote Manager® (cloud based); SNMP v1/v2c/v3 (user installed/managed), SMS |
| LOCAL MANAGEMENT | Web UI (HTTPS); CLI (SSH, serial) |
| MANAGEMENT TOOLS | SFTP, SCP; protocol analyzer with PCAP for Wireshark; event logging with Syslog |
| PROCESSOR | |
| APPLICATION PROCESSOR | 1.6 GHz quad-core i.MX 8M Plus ARM® Cortex®-A53 processor |
| MEMORY | |
| RAM / FLASH | 1 GB / 8 GB |
| PHYSICAL | |
| DIMENSIONS (L X W X H) | 234 mm x 154 mm x 41 mm (9.21 in x 6.06 in x 1.61 in) |
| WEIGHT | 1.14 kg (2.51 lb) |
| STATUS LEDS | Power, WWAN, Ethernet (link, activity) |
| ENCLOSURE/RATING | Glass-filled polyphenylene sulphide / IP30 −40 °C to 85 °C (−40 °F to 185 °F) |
| POWER REQUIREMENTS | |
| POWER INPUT | 9 to 30 VDC |
| POWER CONNECTOR | Screw down removable terminal block |
| POWER CONSUMPTION | 4.5 W (light traffic), 8 W (peak data), 3.5 W (idle traffic) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | −30 °C to 70 °C (−22 °F to 158 °F) |
| STORAGE TEMPERATURE | −45 °C to 85 °C (−49 °F to 185 °F) |
| RELATIVE HUMIDITY | 0% to 95% (non-condensing) at 25 °C (77 °F) |
| APPROVALS | |
| CELLULAR | PTCRB, AT&T, FirstNet Capable™, T-Mobile; visit www.digi.com/resources/certifications for latest cellular certifications |
| SAFETY | IEC 62368-1, CB scheme |
| EMISSIONS / IMMUNITY | FCC Part 15 Subpart B, ISED, CE, RED, UKCA |

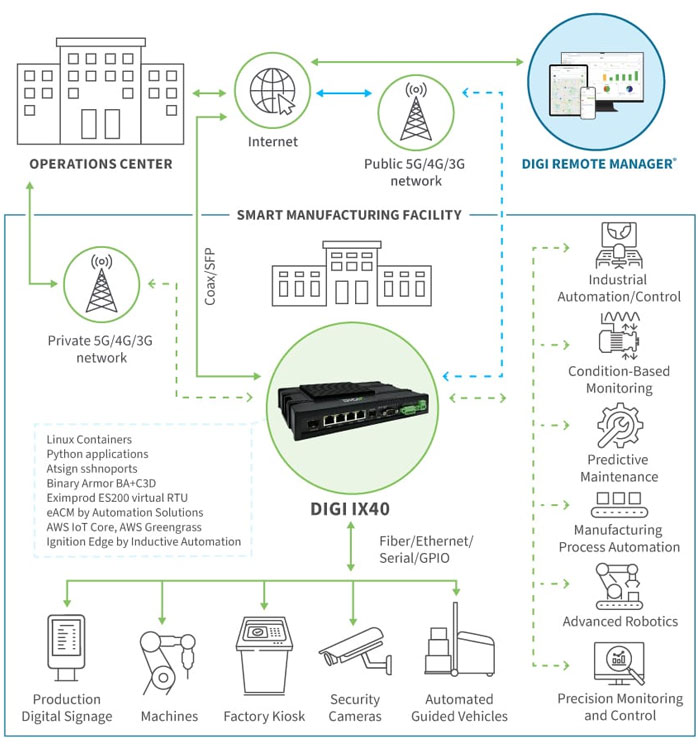

Digi IX40 is 5G edge computing industrial IoT router solution, integrated with Digi Remote Manager (Digi RM) to empower rapid processing, analysis, and integration of industrial asset data.
Purpose-built for Industry 4.0, Digi IX40 supports the 5G connectivity and edge intelligence needed to enable numerous use cases ranging from predictive maintenance and asset monitoring to machine learning and advanced robotics. It seamlessly connects multiple machines, whether wired or wireless, in the most demanding environments, optimizing integration of cloud-delivered operational technology (OT) services with information technology (IT) to streamline complex operations and scale IT infrastructure.
With its all-in-one design, strong computing power and integrated memory, Digi IX40 offers substantial capabilities for real-time data processing, edge computing and advanced precision while reducing complexity and total cost of ownership. Digi Containers facilitate potent and cost-effective applications, providing additional flexibility and scalability for Industry 4.0, energy, smart cities and other uses.
The Digi IX40 solution offers FirstNet Capable™ models designed to meet the demands of critical applications where reliability is essential for industrial use cases and emergency response. Additional use cases for Digi IX40 include manufacturing process automation, precision monitoring and control, industrial automation, utilities and traffic management.
Gain critical insights and manage your network with Digi RM — the cloud-based command center for your deployment. Digi RM also provides secure terminal access for out-of-band management of edge devices via serial port and command-line interface.
Digi IX40:
5G Industrial Edge Computing Solution for Automation and Control
Meet the latest Digi industrial router solution, purpose built for data-intensive applications at the edge including Industry 4.0, manufacturing, utilities, SCADA, DERMS and predictive maintenance.
This high-performance 5G cellular router solution supports near real-time communications at the edge for the most data-intensive applications. Optimized for edge computing and the fastest network connectivity available today, this industrial IoT solution is secure, always on and integrates Digi Remote Manager® for remote configuration, monitoring and control.
Watch our short video to learn more!
5G with LTE-Advanced Pro Cat 19 4x4 and 3G fallback, quad Ethernet, R-232/422/485, GNSS, FirstNet Capable™
4G LTE-Advanced Pro Cat 12 with 3G fallback, quad Ethernet, RS-232/422/485, GNSS
