Digi One IAP

Industrial serial server and protocol bridge

Anewtech Systems RS-232/422/485 Serial Server Digi International Device Server Digi-One-IAP Digi International Digi One IAP 70001777 Serial Server Digi One IAP Haz 70002326
  • Industrial serial server and protocol bridge
  • Hardened 1-port device server for hazardous locations
  • Multi-master/multi-protocol support
  • Conformal coated circuit board
  • Device server with 1 DB-9 serial port plus pass-through port
Datasheet
Product Specification
ItemsDigi One IAPDigi One IAP Haz
Features
ManagementHTTP configuration, Digi Port Authority–Remote management diagnostics and auto-discovery tool, SNMP (read/write)
ProtocolsTelnet, Reverse Telnet, RFC2217, TCP/UDP Socket Services, PPP, DHCP/RARP, ARP-Ping, Static IP for IP address assignment, Support for 64 concurrent socket connections, ASCII, DF1, Modbus RTU/ASCII, Modbus/TCP, EtherNet/IP, Allen-Bradley Ethernet
SoftwarePatented RealPort COM port redirector for COM/TTY ports for Microsoft® Windows®, UNIX® and Linux®
SecuritySSHv2, SSL, TLS, HTTPS
Operating SystemsAIX, HP-UX, Solaris, Linux®, Windows® 2000, Windows® XP, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10, Windows Server® 2003, Windows Server® 2008, Windows Server® 2012. Note: TCP/UDP socket services are operating system independent.
Status LEDsSerial signals, Power, Ethernet and diagnostics

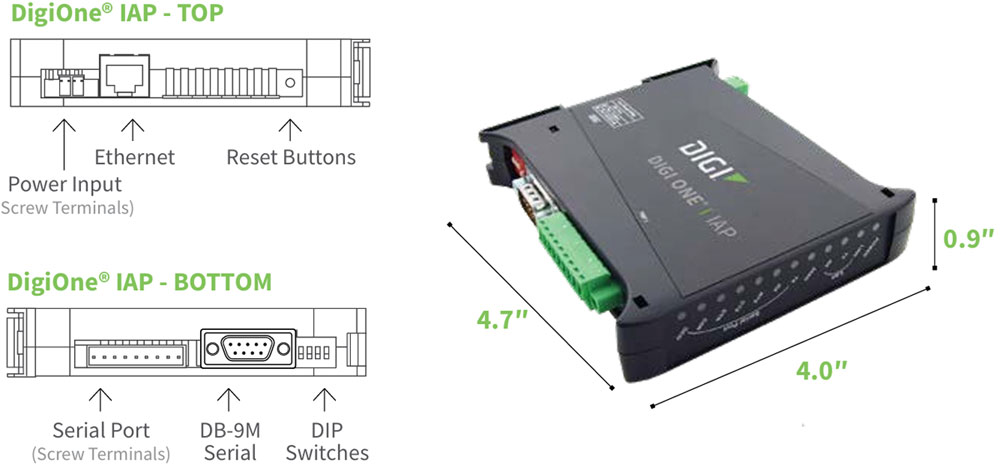

Dimensions (L x W x D)4.70 in x 0.90 in x 4.0 in (12.00 cm x 2.30 cm x 10.10 cm)
Weight2.5 oz (64.0 g)
OtherFull modem and hardware flow control, Flash upgradeable firmware, 6 ms serial over Ethernet latency, 35 mm DIN rail mountingConformal coated PCB, Full modem and hardware flow control, Flash upgradeable firmware, 6 ms serial over Ethernet latency, 35 mm DIN rail mounting
Interfaces
Serial Ports1 RS-232/422/485 (switch selectable)
Serial ConnectorScrew terminal connector or DB-9M; DB-9M can act as a second direct RS-232 port or can be used as a pass-through port for the screw terminal connector
Serial ThroughputUp to 230 Kbps
Ethernet Physical Layer10/100Base-T
Power Requirements
Power Input9-30 VDC @ 0.5Amps max
Power SupplyRemovable screw terminal for power (power supply not included)
Powered Ethernet802.3af (midspan and endspan) support and fail-over capability when used with 9-30 VDC inputN/A
Product Surge Protection (ESD)2 kV isolation between power supply and serial ground product when used with Digi power supply
Environmental
Operating Temperature0° C to +60° C (32° F to +140° F)-35° C to +74° C (-31° F to +165° F)
Relative Humidity5% to 90% (non-condensing)
Ethernet Isolation1500 VAC min per IEEE 802.3/ANSI X3.263
Serial Port Protection (ESD)15 kV human body model
Regulatory Approvals
SafetyUL 1950, UL 1604 (Class 1, Div. 2), CSA 22.2 No 950, EN60950
Emissions/ImmunityFCC Part 15 (Class A), ICES-003 (Class A), CE, AS3548, EN6100-6-2 + EN55024, EN55022 (Class A)



Anewtech Digi-One-IAP 70001777 Digi International Serial Server

Anewtech Digi-One-IAP Digi International Serial Server Digi One IAP Haz  70002326Digi One IAP combines reliable serial-to-Ethernet connectivity with protocol conversion and interoperability. Users can IP enable a broad range of serial devices, as well as link two industrial devices. It is ideal for device management applications requiring specific industry protocol support.

Serial server functionality built into Digi One IAP allows any serial device to be connected to a TCP/IP network. Applications may communicate with the serial device using TCP/UDP or Digi’s patented RealPort® COM port redirector for remote native COM port access.

Digi One IAP supports a variety of serial and Ethernet protocols, allowing users to bridge serial and Ethernet devices, or both. Multi-master access allows multiple masters to communicate with a single slave across protocols.

Digi One IAP converts ASCII data from serial devices to Ethernet protocols. An additional serial port can act as a pass-through port, allowing local devices to communicate with a slave unit without disrupting the serial-to-Ethernet connection.
