PortServer TS
Easy Serial-to-Ethernet Connectivity. RS-232 RJ-45 Serial-to-Ethernet

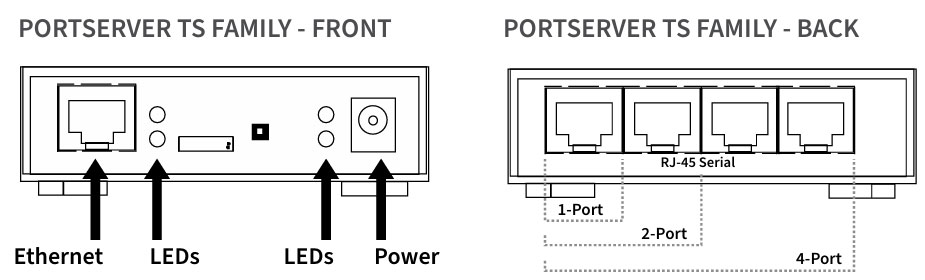

- 1, 2, or 4 RS-232 RJ-45 serial ports
- RealPort® with encryption provides SSL-based protection
- SSHv2 for encrypted connections
| Item | PortServer TS 1 | PortServer TS 2 | PortServer TS 4 |
|---|---|---|---|
| Part Number | 70002041 | 70002043 | 70002045 |
| Features | |||
| Management | HTTP/HTTPS, CLI, SNMP (read/write), Digi Port Authority-Remote management diagnostics and auto-discovery tool | ||
| Protocols | UDP/TCP, DHCP/RARP/ARP-Ping for IP Address assignment, PPP, Extended Telnet RFC 2217, Telnet, Reverse Telnet, Modbus to Modbus/TCP protocol conversion support, RADIUS, Reverse SSH | ||
| Software | Supports Digi’s Realport® COM port redirector | ||
| Security | SSHv2, SSL/TLS | ||
| Status LEDs | Link, Activity, Power, Status | ||
| Operating Systems | AIX, HP-UX, Solaris, Linux®, Windows® 2000, Windows® XP, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10, Windows Server® 2003, Windows Server® 2008, Windows Server® 2012. Note: TCP/UDP socket services are operating system independent | ||
| Dimensions (L x W x D) | 5.25 in x 3.33 in x 0.95 in (13.34 cm x 8.46 cm x 2.42 cm) | ||
| Weight | 6.67 oz (189g) | ||
| Other | Full modem and hardware flow control, Modem emulation, Port buffering, RJ-45/DB-9F console adapter included for optional serial configuration | ||
| Interfaces | |||
| Serial | |||
| Ports | 1 RS-232 RJ-45; Up to 230 Kbps throughput; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD | 2 RS-232 RJ-45; Up to 230 Kbps through-put; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD | 4 RS-232 RJ-45; Up to 230 Kbps throughput; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD |
| Ethernet | |||
| Ports | 1 RJ-45 10/100 Mbps 10/100Base-T (auto-sensing); Full or half duplex | ||
| Power Requirements | |||
| Power Input | 9-30 VDC | ||
| Power Supply (included) | 12 VDC power supply for 0° C to +60° C (32° F to +140° F) with locking barrel connector included | ||
| Power Consumption | Typical: 4 W; Max: 6 W | ||
| Product Surge Protection (ESD) | 8 kV Air discharge and 4 kV Direct discharge, per EN61000-4-2 | ||
| Environmental | |||
| Operating Temperature | 0° C to +60° C (32° F to 140° F) | ||
| Storage Temperature | -40° C to +85° C (-40° F to +185° F) | ||
| Relative Humidity | 5% to 95% (non-condensing) | ||
| Ethernet Isolation | 1500 VAC min per IEEE802.3/ANSI X3.263 | ||
| Serial Port Protection (ESD) | 15 kV human body mode | ||
| Approvals | |||
| Safety | UL/CUL 60950, IEC 60950 & CB | ||
| Emissions/Immunity | CE, FCC Part 15 (Class A), EN55024, EN55022 Class A, AS/NZS 3548, CISPR 22, VCCI V-3/99.05 | ||
PortServer TS serial servers offer RS-232 serial port expansion, making it easy to connect any serial device to your network. Available in 1, 2, or 4-port models, these serial servers combine the inherent benefits of data networking with proven asynchronous connectivity. They deliver powerful, yet simple Ethernet connectivity for all your serial devices.
PortServer TS device servers are ideal for applications requiring COM ports or where TCP/UDP Sockets or multicast functionality is required.
All Digi device servers include Digi’s patented RealPort® COM port redirector technology, which makes it possible to establish a connection between the host and networked serial device by creating a local COM or TTY port on the host computer, allowing existing software applications to work without modification.
